Description

The Fluke 287/FVF Combo Kit is designed to maximize productivity for professionals working in electronic system development and maintenance. The Fluke 287 multimeter features a large 50,000-count, ¼ VGA display with a white backlight, allowing clear visibility of multiple measurement parameters simultaneously. Its built-in data logger and TrendCapture™ capability enable users to track intermittent problems and monitor equipment performance over time. The included FlukeView® Forms Software facilitates the documentation, storage, and analysis of individual readings or series of measurements, allowing for the overlay of logged data to identify cause-and-effect relationships. This combination enhances the ability to generate professional reports and conduct in-depth analysis. Additionally, the 287 is compatible with the Fluke ir3000 FC Infrared Connector (sold separately), enabling wireless communication with iOS or Android devices via the Fluke Connect® mobile app for real-time data sharing and analysis.

Specification :

Specification	Details

Voltage Range

Up to 1000 V AC/DC

Current Range

Up to 10 A (20 A for 30 seconds)

Frequency Range

0.01 Hz to 100 kHz

Capacitance Range

1 nF to 100 mF

Resistance Range

Up to 500 MΩ

Temperature Range

-200 °C to 1350 °C (-328 °F to 2462 °F)

Safety Compliance

CAT III 1000 V, CAT IV 600 V

Data Logging Memory

Up to 15,000 recorded events

Display Resolution

50,000 counts

Battery Life

~200 hours

Wireless Compatibility

Fluke Connect® (with ir3000 FC connector)

Software Compatibility

FlukeView® Forms for advanced analysis

Dimensions

211 x 98 x 52 mm (8.3 x 3.9 x 2.0 inches)

Weight

870 g (1.9 lbs)

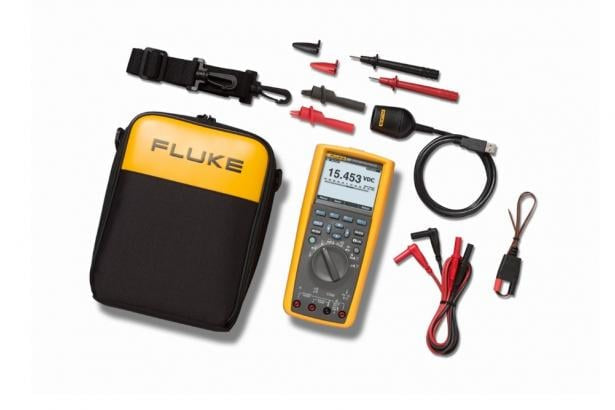

Fluke 287/FVF True-RMS Electronics Logging Multimeter Combo Kit

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Advanced multimeter with data logging and analysis capabilities, including FlukeView® Forms Software for enhanced documentation. Read more

SKU: 3947796

Advanced multimeter with data logging and analysis capabilities, including FlukeView® Forms Software for enhanced documentation.

Description

The Fluke 287/FVF Combo Kit is designed to maximize productivity for professionals working in electronic system development and maintenance. The Fluke 287 multimeter features a large 50,000-count, ¼ VGA display with a white backlight, allowing clear visibility of multiple measurement parameters simultaneously. Its built-in data logger and TrendCapture™ capability enable users to track intermittent problems and monitor equipment performance over time. The included FlukeView® Forms Software facilitates the documentation, storage, and analysis of individual readings or series of measurements, allowing for the overlay of logged data to identify cause-and-effect relationships. This combination enhances the ability to generate professional reports and conduct in-depth analysis. Additionally, the 287 is compatible with the Fluke ir3000 FC Infrared Connector (sold separately), enabling wireless communication with iOS or Android devices via the Fluke Connect® mobile app for real-time data sharing and analysis.

Specification :

Specification	Details

Voltage Range

Up to 1000 V AC/DC

Current Range

Up to 10 A (20 A for 30 seconds)

Frequency Range

0.01 Hz to 100 kHz

Capacitance Range

1 nF to 100 mF

Resistance Range

Up to 500 MΩ

Temperature Range

-200 °C to 1350 °C (-328 °F to 2462 °F)

Safety Compliance

CAT III 1000 V, CAT IV 600 V

Data Logging Memory

Up to 15,000 recorded events

Display Resolution

50,000 counts

Battery Life

~200 hours

Wireless Compatibility

Fluke Connect® (with ir3000 FC connector)

Software Compatibility

FlukeView® Forms for advanced analysis

Dimensions

211 x 98 x 52 mm (8.3 x 3.9 x 2.0 inches)

Weight

870 g (1.9 lbs)
