Description

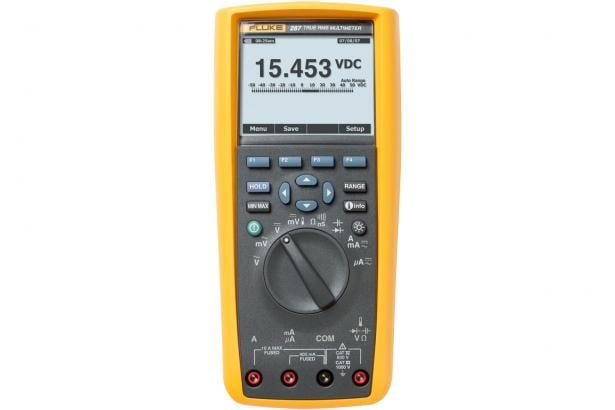

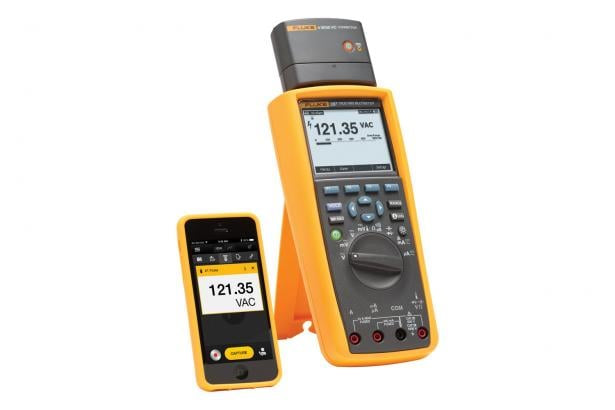

The Fluke 287 True-RMS Electronics Logging Multimeter is engineered to meet the demands of professionals requiring high-precision measurements and comprehensive data analysis. Its large 50,000-count, ¼ VGA display with a white backlight provides clear visibility of multiple measurement parameters simultaneously. The unique TrendCapture feature allows users to graphically review logged data without the need for a PC, enabling quick identification of anomalies over time. With an expanded memory capable of storing up to 15,000 recorded events, the Fluke 287 facilitates extended monitoring sessions. Additional features include a real-time clock for time-stamping saved readings, adjustable recording and auto-hold thresholds, and a selectable AC filter to stabilize rapidly changing or noisy signals. The multimeter measures up to 1000 V AC/DC, 10 A (20 A for 30 seconds), and offers a 100 kHz AC bandwidth. It also includes functions for measuring capacitance up to 100 mF, frequency up to 100 kHz, and temperature. The device is compatible with the Fluke Connect® mobile app (requires the Fluke ir3000 FC Infrared Connector) for wireless data sharing and analysis.

Specification :

Specification	Details

Voltage Range

Up to 1000 V AC/DC

Current Range

Up to 10 A (20 A for 30 seconds)

Frequency Range

0.01 Hz to 100 kHz

Capacitance Range

1 nF to 100 mF

Resistance Range

Up to 500 MΩ

Temperature Range

-200 °C to 1350 °C (-328 °F to 2462 °F)

Safety Compliance

CAT III 1000 V, CAT IV 600 V

Display Resolution

50,000 counts

Data Logging Memory

15,000 recorded events

Battery Life

~200 hours

Dimensions

211 x 98 x 52 mm (8.3 x 3.9 x 2.0 inches)

Weight

870 g (1.9 lbs)

Fluke 287 True-RMS Electronics Logging Multimeter

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

High-precision multimeter with advanced data logging and TrendCapture for efficient analysis of complex electrical signals. Read more

SKU: 3947781

High-precision multimeter with advanced data logging and TrendCapture for efficient analysis of complex electrical signals.

Description

The Fluke 287 True-RMS Electronics Logging Multimeter is engineered to meet the demands of professionals requiring high-precision measurements and comprehensive data analysis. Its large 50,000-count, ¼ VGA display with a white backlight provides clear visibility of multiple measurement parameters simultaneously. The unique TrendCapture feature allows users to graphically review logged data without the need for a PC, enabling quick identification of anomalies over time. With an expanded memory capable of storing up to 15,000 recorded events, the Fluke 287 facilitates extended monitoring sessions. Additional features include a real-time clock for time-stamping saved readings, adjustable recording and auto-hold thresholds, and a selectable AC filter to stabilize rapidly changing or noisy signals. The multimeter measures up to 1000 V AC/DC, 10 A (20 A for 30 seconds), and offers a 100 kHz AC bandwidth. It also includes functions for measuring capacitance up to 100 mF, frequency up to 100 kHz, and temperature. The device is compatible with the Fluke Connect® mobile app (requires the Fluke ir3000 FC Infrared Connector) for wireless data sharing and analysis.

Specification :

Specification	Details

Voltage Range

Up to 1000 V AC/DC

Current Range

Up to 10 A (20 A for 30 seconds)

Frequency Range

0.01 Hz to 100 kHz

Capacitance Range

1 nF to 100 mF

Resistance Range

Up to 500 MΩ

Temperature Range

-200 °C to 1350 °C (-328 °F to 2462 °F)

Safety Compliance

CAT III 1000 V, CAT IV 600 V

Display Resolution

50,000 counts

Data Logging Memory

15,000 recorded events

Battery Life

~200 hours

Dimensions

211 x 98 x 52 mm (8.3 x 3.9 x 2.0 inches)

Weight

870 g (1.9 lbs)
