Description

The Fluke 279 FC Thermal Multimeter is engineered to streamline the troubleshooting process by combining two essential tools into one. The integrated thermal imager allows for the rapid detection of hot spots in electrical equipment, such as transformers and circuit breakers, which can indicate potential issues. Once identified, the multimeter function enables detailed electrical measurements to diagnose the problem accurately. This two-in-one tool reduces the need to carry separate devices, enhancing efficiency and safety.

Key Features

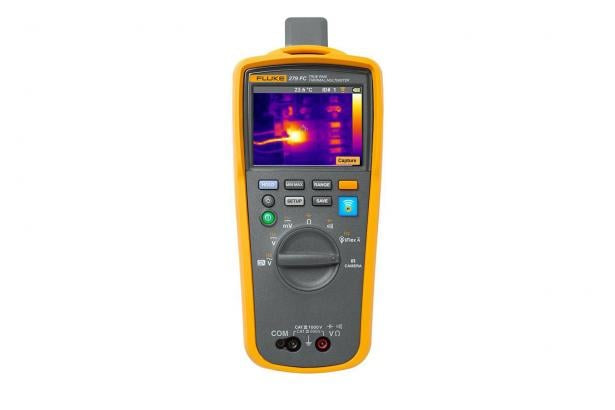

Integrated Thermal Imaging: Quickly identifies hot spots to detect potential electrical issues.
Comprehensive Measurement Functions: Includes AC/DC voltage, resistance, continuity, capacitance, diode testing, frequency, and AC current (with iFlex).

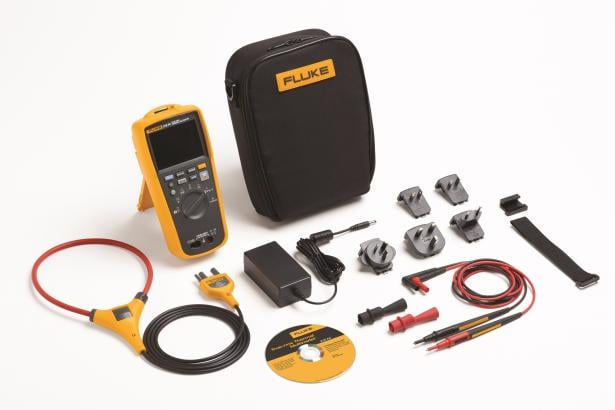

iFlex Compatibility: The included iFlex flexible current probe expands measurement capabilities, allowing access to tight spaces and measuring currents up to 2500 A AC.

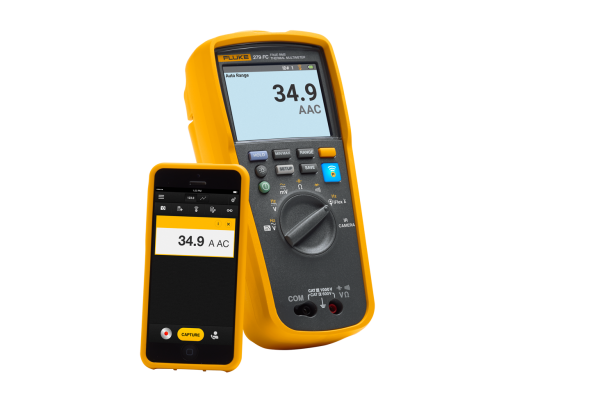

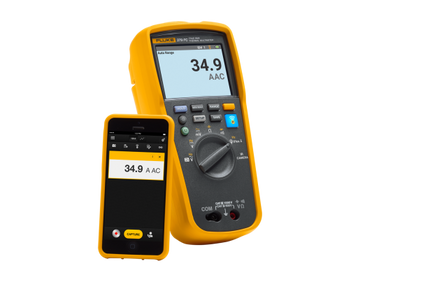

Fluke Connect® Enabled: Wirelessly transmits measurements and images to smartphones or tablets for real-time analysis and reporting.
Rugged Design: Built to withstand a 3-meter (9.8 feet) drop, with a CAT III 1000 V, CAT IV 600 V safety rating.

Specification:

Specification	Details

Voltage Range

Up to 1000 V AC/DC

Current Range

Up to 10 A (with iFlex: up to 2500 A AC)

Capacitance Range

Up to 100 mF

Frequency Range

0.01 Hz to 100 kHz

Temperature Range

-10 °C to 200 °C (14 °F to 392 °F)

Resistance Range

Up to 50 MΩ

Safety Compliance

CAT III 1000 V, CAT IV 600 V

Thermal Imager Resolution

80 x 60 pixels

Battery Life

~10 hours (with thermal imaging)

Dimensions

215 x 100 x 47 mm (8.46 x 3.94 x 1.85 inches)

Weight

870 g (1.9 lbs)

Fluke 279 FC True-RMS Thermal Multimeter

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

A digital multimeter with integrated thermal imaging to quickly identify electrical issues, featuring 15 measurement functions and wireless connectivity. Read more

SKU: 4684050

A digital multimeter with integrated thermal imaging to quickly identify electrical issues, featuring 15 measurement functions and wireless connectivity.
