Description

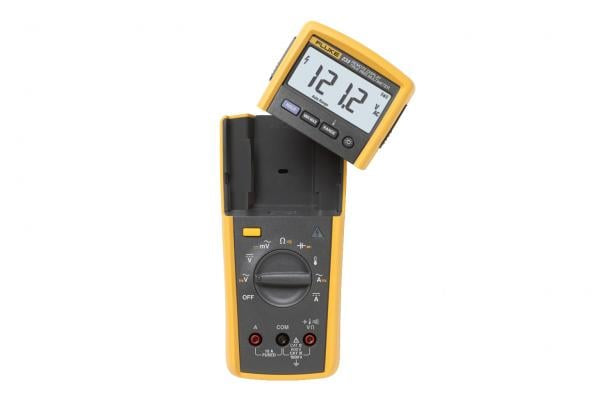

The Fluke 233 Digital Multimeter revolutionizes electrical testing with its removable display, providing unparalleled flexibility. This feature allows technicians to place the main unit in areas with limited access or potential hazards while viewing readings remotely up to 10 meters (33 feet) away. The device ensures accurate measurements with True-RMS AC voltage and current readings, handling up to 1000 V AC/DC and 10 A (20 A for 30 seconds). Additional capabilities include measuring capacitance up to 10,000 µF, frequency up to 50 kHz, and temperature via a built-in thermometer. The multimeter also offers resistance, continuity, and diode testing functions. Its large, backlit display ensures visibility in various lighting conditions, and the auto power-off feature maximizes battery life. The Fluke 233 is safety rated for CAT IV 600 V and CAT III 1000 V environments, making it suitable for a wide range of industrial applications.

Specification :

Specification	Details

Voltage Range

Up to 1000 V AC/DC

Current Range

Up to 10 A (20 A for 30 seconds)

Capacitance Range

Up to 10,000 µF

Frequency Range

0.01 Hz to 50 kHz

Temperature Range

-40 °C to 400 °C (-40 °F to 752 °F)

Resistance Range

Up to 40 MΩ

Safety Compliance

CAT IV 600 V, CAT III 1000 V

Removable Display Range

10 meters (33 feet)

Battery Life

~400 hours (with display attached)

Dimensions

193 x 93 x 53 mm (7.6 x 3.7 x 2.1 inches)

Weight

604 g (1.33 lbs)

Fluke 233 True-RMS Remote Display Digital Multimeter

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Digital multimeter with a detachable display, enabling measurements up to 10 meters away, ideal for challenging environments. Read more

SKU: 3469334

Digital multimeter with a detachable display, enabling measurements up to 10 meters away, ideal for challenging environments.

Description

The Fluke 233 Digital Multimeter revolutionizes electrical testing with its removable display, providing unparalleled flexibility. This feature allows technicians to place the main unit in areas with limited access or potential hazards while viewing readings remotely up to 10 meters (33 feet) away. The device ensures accurate measurements with True-RMS AC voltage and current readings, handling up to 1000 V AC/DC and 10 A (20 A for 30 seconds). Additional capabilities include measuring capacitance up to 10,000 µF, frequency up to 50 kHz, and temperature via a built-in thermometer. The multimeter also offers resistance, continuity, and diode testing functions. Its large, backlit display ensures visibility in various lighting conditions, and the auto power-off feature maximizes battery life. The Fluke 233 is safety rated for CAT IV 600 V and CAT III 1000 V environments, making it suitable for a wide range of industrial applications.

Specification :

Specification	Details

Voltage Range

Up to 1000 V AC/DC

Current Range

Up to 10 A (20 A for 30 seconds)

Capacitance Range

Up to 10,000 µF

Frequency Range

0.01 Hz to 50 kHz

Temperature Range

-40 °C to 400 °C (-40 °F to 752 °F)

Resistance Range

Up to 40 MΩ

Safety Compliance

CAT IV 600 V, CAT III 1000 V

Removable Display Range

10 meters (33 feet)

Battery Life

~400 hours (with display attached)

Dimensions

193 x 93 x 53 mm (7.6 x 3.7 x 2.1 inches)

Weight

604 g (1.33 lbs)
