Description

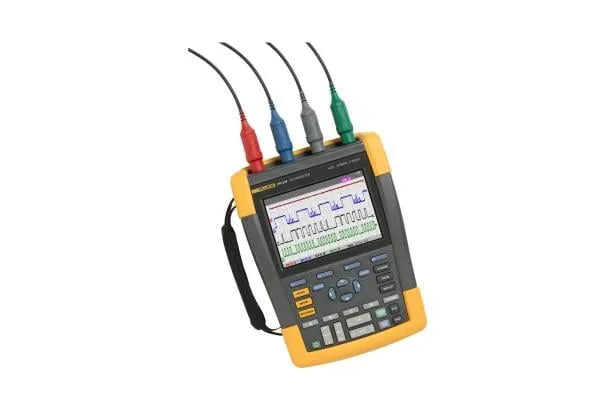

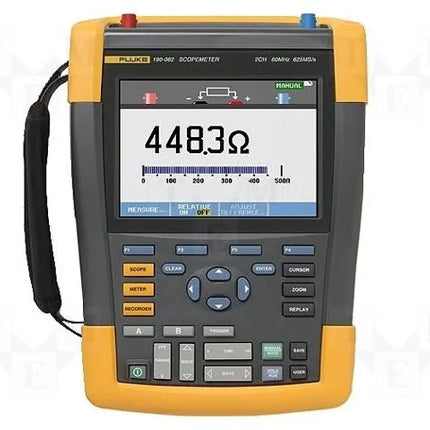

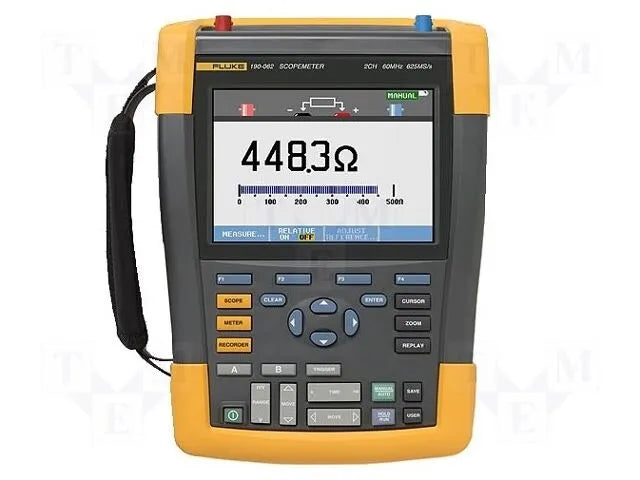

The Fluke 190-062 ScopeMeter® Test Tool combines the performance of a bench oscilloscope with the rugged portability of a handheld device. With a 60 MHz bandwidth and real-time sampling rates up to 625 MS/s, it captures detailed signal data for accurate analysis. Its CAT III 1000 V / CAT IV 600 V safety rating ensures safe usage in various electrical environments.

Key Features:

Two Isolated Input Channels: Allows for independent measurements on two different signals simultaneously.
Built-in Digital Multimeter: Provides 5000-count resolution for precise voltage, resistance, and continuity measurements.
Connect-and-View™ Triggering: Automatically sets up correct triggering by recognizing signal patterns.
ScopeRecord™ Mode: Captures waveform sample data for up to 48 hours, useful for long-term monitoring.
TrendPlot™ Paperless Recorder: Trends measurement readings for up to 22 days to detect intermittent issues.
Rugged Design: IP51 rated for dust and drip water resistance; built to withstand harsh environments.

Specifications:

Specification	Details
Bandwidth	60 MHz
Number of Channels	2
Maximum Real-Time Sampling Rate	625 MS/s
Vertical Resolution	8 bits
Input Sensitivity	2 mV/div to 100 V/div
Time Base Range	10 ns/div to 4 s/div
Input Impedance	1 MΩ ±1% // 15 pF ±2 pF
Maximum Input Voltage	CAT III 1000 V / CAT IV 600 V
Display	133 mm x 90 mm (5.3 in x 3.5 in) full-color high brightness LCD
Dimensions (H x W x D)	270 mm x 190 mm x 70 mm
Weight	2.2 kg
Battery Life	Up to 4 hours with BP290 Li-ion battery
Safety Rating	CAT III 1000 V / CAT IV 600 V

Fluke 190-062 ScopeMeter® Test Tool

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

The Fluke 190-062 is a rugged, portable oscilloscope with a 60 MHz bandwidth, featuring two isolated input channels and a built-in digital multimeter, designed for industrial electrical and electro-mechanical applications. Read more

SKU: 4025159

Shipped today? Order within: May 13, 2025 17:00:00 +0300

Shipped today? Order within: May 13, 2025 17:00:00 +0300

The Fluke 190-062 is a rugged, portable oscilloscope with a 60 MHz bandwidth, featuring two isolated input channels and a built-in digital multimeter, designed for industrial electrical and electro-mechanical applications.
