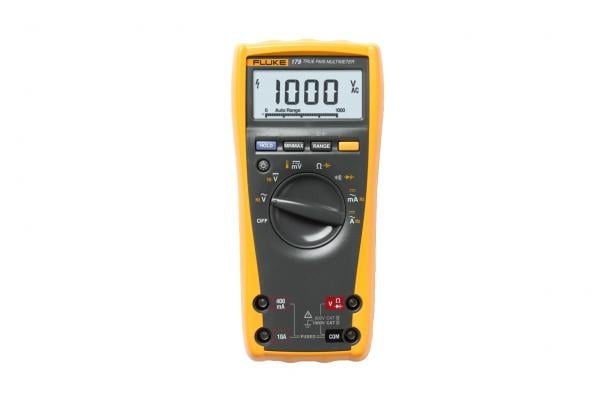

The Fluke 179/EDA2 Combo Kit is tailored for professionals working in demanding industrial environments. The centerpiece of this kit, the Fluke 179 True-RMS Digital Multimeter, is renowned for its precision and reliability in diagnosing electrical and electronic systems. It provides accurate True-RMS AC voltage and current measurements, as well as frequency, capacitance, resistance, continuity, and diode testing. A notable feature is the built-in thermometer, allowing for temperature measurements without the need for a separate instrument. The multimeter offers both manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording to enhance productivity. Safety-rated for industrial use, it meets CAT III 1000 V and CAT IV 600 V standards. The ergonomic design includes an integrated protective holster, and the device allows for closed-case calibration through the front panel.

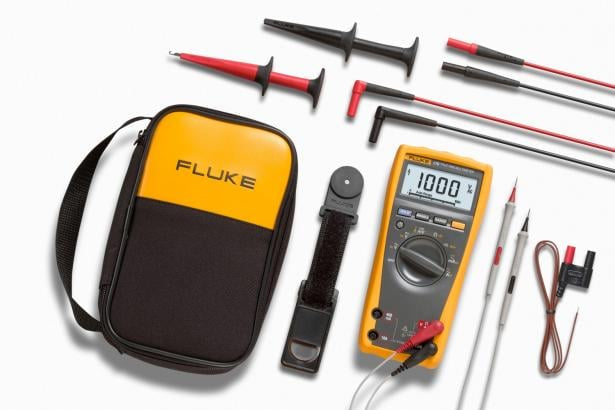

Complementing the multimeter, the EDA2 accessory kit enhances measurement versatility and convenience. The included AC280 SureGrip™ Hook Clips, TL910 Electronic Test Probes, and TL224 SureGrip™ Insulated Test Leads ensure secure and reliable connections during testing. The TPAK ToolPak™ Magnetic Meter Hanger allows for hands-free operation by securely attaching the meter to metal surfaces, facilitating easier measurements in challenging environments. All components are housed in a durable soft carrying case, providing protection and portability for fieldwork
Specification :
| Specification |
Details |
| Multimeter Type |
Fluke 179 True-RMS Digital Multimeter |
| Voltage Range |
Up to 1000 V AC/DC |
| Current Range |
Up to 10 A AC/DC |
| Frequency Range |
0.01 Hz to 100 kHz |
| Capacitance Range |
1 nF to 10,000 µF |
| Resistance Range |
0.1 Ω to 50 MΩ |
| Temperature Range |
-40 °C to 400 °C (-40 °F to 752 °F) |
| Safety Compliance |
CAT III 1000 V, CAT IV 600 V |
| Accessory Kit Components |
AC280 Hook Clips, TL910 Probes, TL224 Leads, TPAK Magnetic Hanger |
| Operating Temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
| Storage Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Battery |
9V Alkaline; ~200 hours of battery life |
| Dimensions |
187 x 85 x 45 mm (7.36 x 3.35 x 1.77 inches) |
| Weight |
420 g (0.93 lbs) |
