Description

The Fluke 1663 Multifunction Installation Tester offers comprehensive testing capabilities for electrical installations in domestic, commercial, and industrial settings. Combining advanced measurement functions with user-friendly operation, it ensures that fixed wiring is safe and correctly installed, meeting IEC 60364 and all relevant local standards. Its compact and lightweight design, along with a padded carrying and waist strap, provides convenience for professionals during testing procedures.

Key Features:

Continuity Testing: Performs continuity tests at L-N and N-PE inputs to verify proper wiring connections.
RCD Testing: Tests smooth DC sensitive Residual Current Devices (RCDs) of Type B, ensuring their correct operation.
Earth Resistance Measurement: Measures earth resistance to assess the effectiveness of grounding systems.
Voltage and Frequency Measurement: Accurately measures voltage and frequency to ensure electrical systems operate within specified parameters.
Wiring Polarity Checker: Detects broken N wires to ensure correct wiring and enhance safety.
Insulation Resistance Measurement: Measures insulation resistance to verify the integrity of wiring insulation.
Loop and Line Resistance Measurement: Assesses loop and line resistance to ensure proper circuit functionality.
Prospective Earth Fault Current (PEFC/IK) and Prospective Short-Circuit Current (PSC/IK) Calculation: Calculates potential fault currents to assess system safety.
Automatic RCD Test Sequence: Provides an automatic sequence for RCD testing, streamlining the process.
Phase Sequence Indicator: Indicates the phase sequence to ensure correct phase installation.
On/Off Switchable Auto-Start for RCD and Loop Test: Enhances efficiency by automatically starting tests when conditions are met.
Self-Test Function: Conducts a self-test to verify proper operation, providing additional user confidence.
Illuminated Display: Features a backlit display for clear visibility in various lighting conditions.
Memory Interface: Includes a memory interface for storing test results, facilitating data management.

Technical Specifications:

Specification	Details
AC Voltage Measurement	Up to 500 V
Frequency Measurement	45 Hz to 65 Hz
Insulation Test Voltages	50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Resistance Range	Up to 1000 MΩ
Loop and Line Resistance Measurement	0.01 Ω to 2000 Ω
Continuity Test Current	200 mA
RCD Test Currents	10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA
Dimensions	25 cm x 12.5 cm x 10 cm
Weight	1.3 kg (including batteries)
Power Supply	Six AA batteries

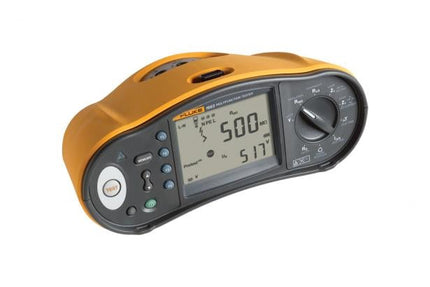

Fluke 1663 Multifunction Installation Tester
