Description

The Fluke 1662 Multifunction Installation Tester offers essential testing capabilities for electrical installations, providing Fluke's renowned reliability and ease of use. It is designed to perform day-to-day installation testing efficiently, ensuring that electrical systems comply with local safety standards. The tester is equipped with features that enhance user confidence and streamline the testing process.

Key Features:

Voltage and Frequency Measurement: Accurately measures AC voltage up to 500 V with a resolution of 0.1 V and frequency within the range of 45 Hz to 66 Hz.
Wiring Polarity Check: Detects broken N wires to ensure correct wiring and enhance safety.
Insulation Resistance Measurement: Measures insulation resistance to verify the integrity of wiring insulation.
Loop and Line Resistance Measurement: Assesses loop and line resistance to ensure proper circuit functionality.
Continuity Testing: Tests motor windings and other connections with a continuity test current of 10 mA.
Prospective Earth Fault Current (PEFC/IK) and Prospective Short-Circuit Current (PSC/IK) Calculation: Calculates potential fault currents to assess system safety.
RCD Testing: Performs RCD trip time tests to ensure residual current devices function correctly.
Auto-Start RCD and Loop Test: Features an on/off switchable auto-start for RCD and loop tests to save time and increase efficiency.
Self-Test Function: Conducts a self-test to verify proper operation, providing additional user confidence.

Technical Specifications:

Specification	Details
AC Voltage Measurement	Range: Up to 500 V Resolution: 0.1 V Accuracy: ±(0.8% + 3) from 45 Hz to 66 Hz
Insulation Resistance Measurement	Test Voltages: 250 V, 500 V, 1000 V Range: Up to 1000 MΩ
Loop and Line Resistance Measurement	Range: 0.01 Ω to 2000 Ω
Continuity Testing	Test Current: 10 mA
RCD Testing	Test Current: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA
Dimensions	25 cm x 12.5 cm x 10 cm
Weight	1.3 kg (including batteries)
Power Supply	Six AA batteries

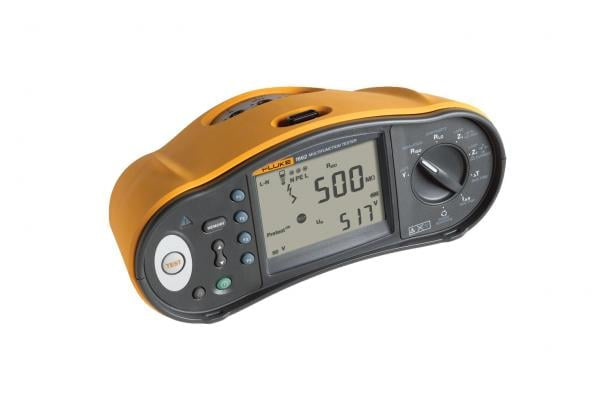

Fluke 1662 Multifunction Installation Tester

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

A reliable and efficient multifunction installation tester designed for basic electrical installation testing, ensuring compliance with local regulations. Read more

SKU: 4546915

A reliable and efficient multifunction installation tester designed for basic electrical installation testing, ensuring compliance with local regulations.

The Fluke 1662 Multifunction Installation Tester offers essential testing capabilities for electrical installations, providing Fluke's renowned reliability and ease of use. It is designed to perform day-to-day installation testing efficiently, ensuring that electrical systems comply with local safety standards. The tester is equipped with features that enhance user confidence and streamline the testing process.

Key Features:

Voltage and Frequency Measurement: Accurately measures AC voltage up to 500 V with a resolution of 0.1 V and frequency within the range of 45 Hz to 66 Hz.
Wiring Polarity Check: Detects broken N wires to ensure correct wiring and enhance safety.
Insulation Resistance Measurement: Measures insulation resistance to verify the integrity of wiring insulation.
Loop and Line Resistance Measurement: Assesses loop and line resistance to ensure proper circuit functionality.
Continuity Testing: Tests motor windings and other connections with a continuity test current of 10 mA.
Prospective Earth Fault Current (PEFC/IK) and Prospective Short-Circuit Current (PSC/IK) Calculation: Calculates potential fault currents to assess system safety.
RCD Testing: Performs RCD trip time tests to ensure residual current devices function correctly.
Auto-Start RCD and Loop Test: Features an on/off switchable auto-start for RCD and loop tests to save time and increase efficiency.
Self-Test Function: Conducts a self-test to verify proper operation, providing additional user confidence.

Technical Specifications:

Specification	Details
AC Voltage Measurement	Range: Up to 500 V Resolution: 0.1 V Accuracy: ±(0.8% + 3) from 45 Hz to 66 Hz
Insulation Resistance Measurement	Test Voltages: 250 V, 500 V, 1000 V Range: Up to 1000 MΩ
Loop and Line Resistance Measurement	Range: 0.01 Ω to 2000 Ω
Continuity Testing	Test Current: 10 mA
RCD Testing	Test Current: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA
Dimensions	25 cm x 12.5 cm x 10 cm
Weight	1.3 kg (including batteries)
Power Supply	Six AA batteries
