Description

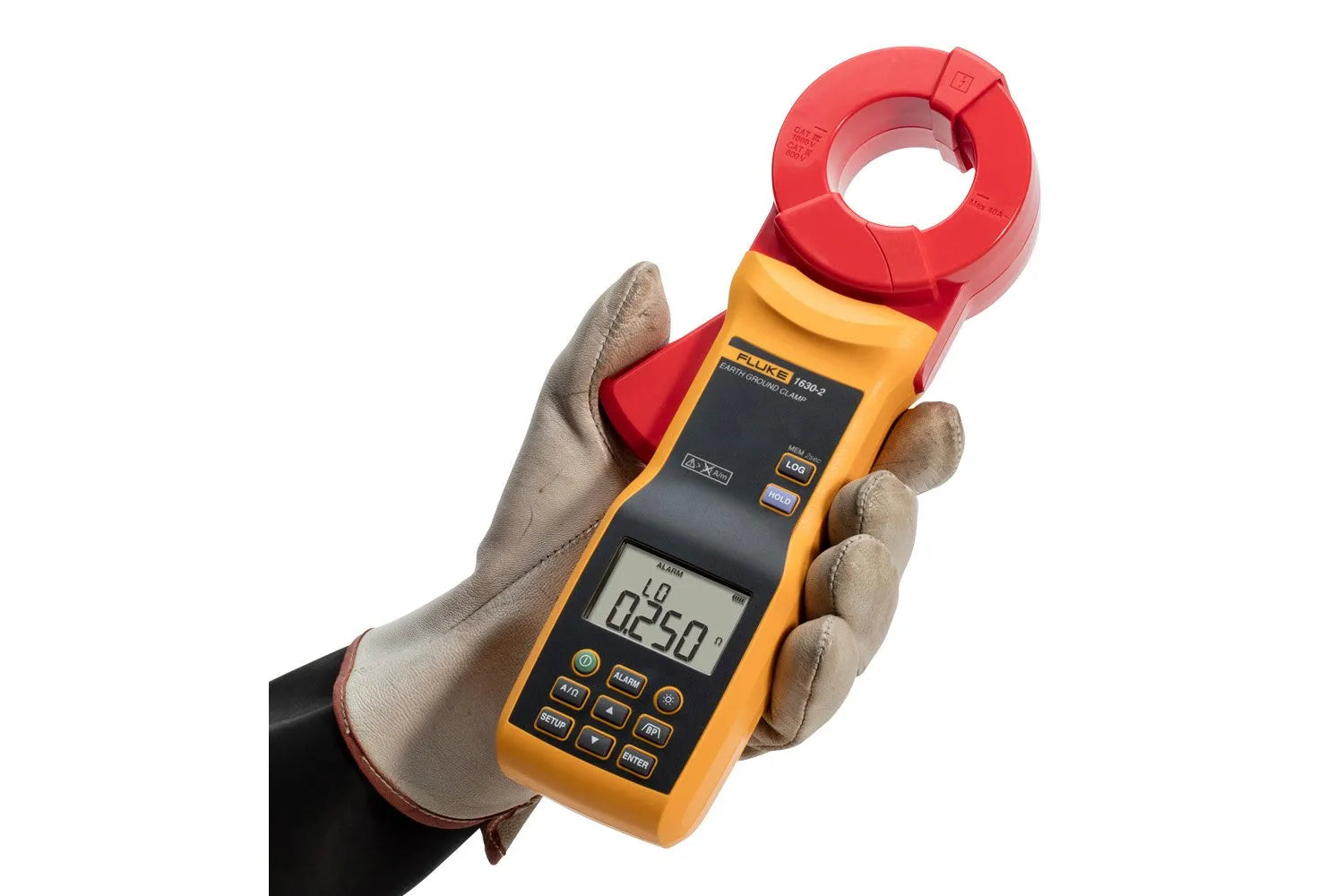

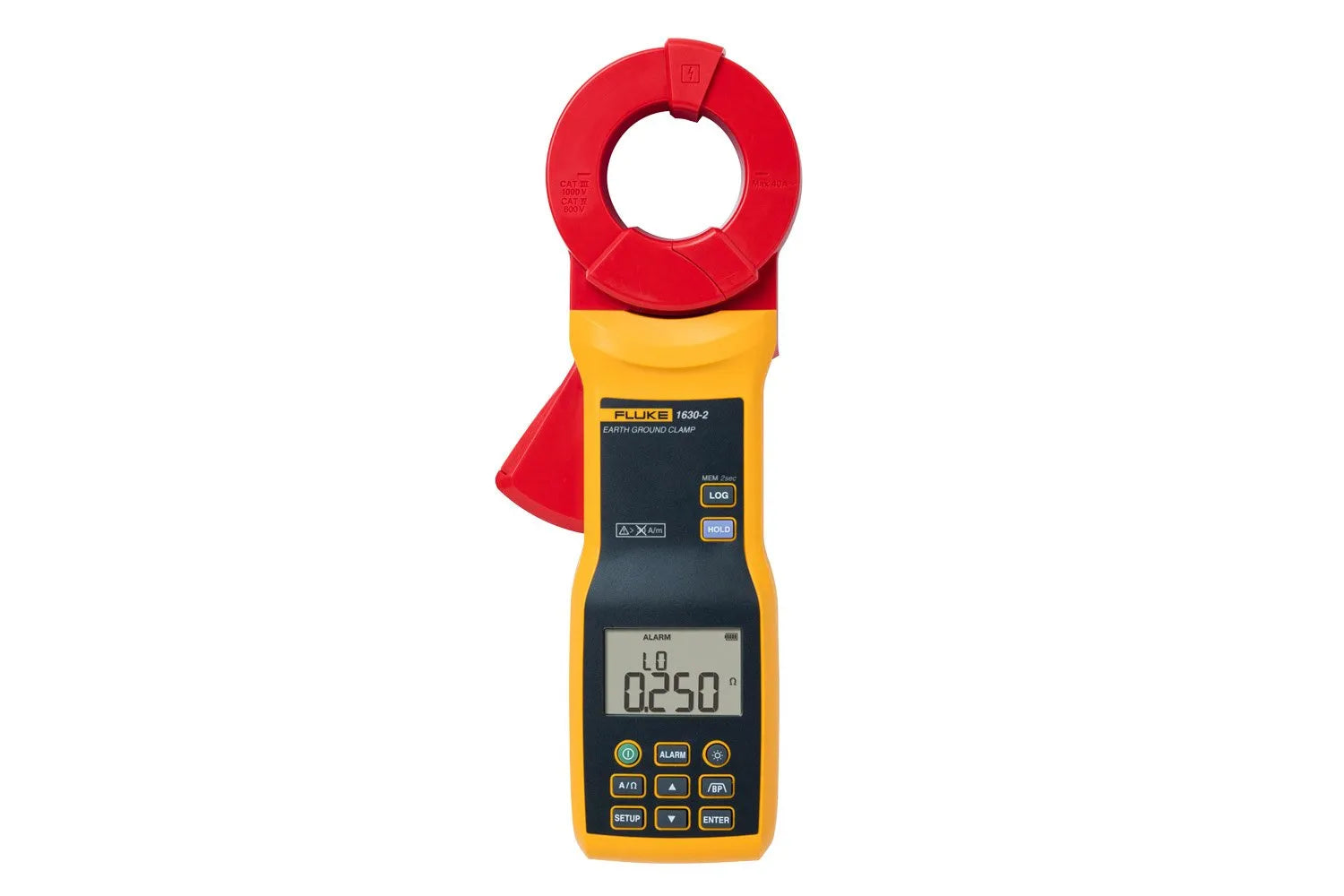

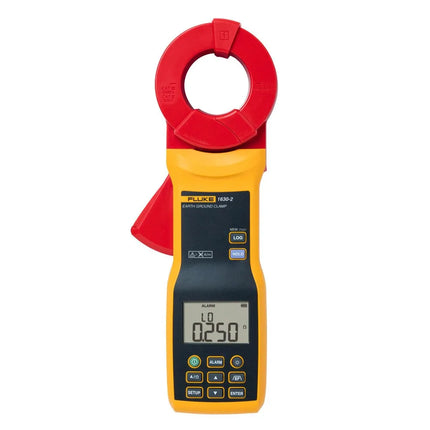

The Fluke 1630-2 FC Earth Ground Clamp is engineered for quick, safe, and accurate earth ground loop resistance testing without the need for auxiliary test stakes. This stakeless testing method allows for measurements in locations where driving stakes is impractical, such as inside buildings or on paved surfaces. The clamp also measures AC leakage current, aiding in the identification of ground faults without disconnecting the earth ground stake from the system. With built-in data logging capabilities, users can automatically record and store up to 32,760 measurements for detailed analysis. The device supports Fluke Connect®, enabling wireless data transmission to smartphones or tablets for real-time monitoring and collaboration.

Key Features:

Stakeless Measurement: Performs earth ground loop resistance tests without auxiliary test stakes.
AC Leakage Current Measurement: Identifies AC leakage currents without disconnecting the earth ground stake.
Data Logging: Automatically records and stores up to 32,760 measurements.
Fluke Connect® Compatibility: Enables wireless data sharing and real-time monitoring via smartphones or tablets.
Rugged Design: Heavy-duty clamp jaw maintains alignment and calibration in demanding industrial environments.

Specifications:

Specification	Details
Maximum Voltage to Earth Ground	1000 V
Battery Type	4 x 1.5 V AA alkaline IEC/EN LR6
Battery Life	More than 15 hours
Frequency Range	40 Hz to 1 kHz
Ingress Protection	IEC/EN 60529: IP30 with jaw closed
Display	Digital reading, 9999 counts; Refresh rate: 4/s
Operating Temperature	-10 °C to +50 °C (14 °F to +122 °F)
Storage Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Operating Humidity	Non-condensing (<10 °C); ≤90% RH (10 °C to 30 °C); ≤75% RH (30 °C to 40 °C); ≤45% RH (40 °C to 50 °C)
Altitude	Operating: 2000 m; Storage: 12,000 m
Data Logging Capacity	Minimum of 32,760 measurements
Data Logging Interval	1 second to 59 minutes and 59 seconds
Safety Compliance	IEC/EN 61010-1: Pollution Degree 2; IEC/EN 61557-1
Measurement Compliance	IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V

Fluke Earth Ground Clamp | 1630-2 FC

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

A stakeless earth ground clamp meter designed for fast and safe earth ground loop resistance and AC leakage current measurements. Read more

SKU: 4799496

A stakeless earth ground clamp meter designed for fast and safe earth ground loop resistance and AC leakage current measurements.

The Fluke 1630-2 FC Earth Ground Clamp is engineered for quick, safe, and accurate earth ground loop resistance testing without the need for auxiliary test stakes. This stakeless testing method allows for measurements in locations where driving stakes is impractical, such as inside buildings or on paved surfaces. The clamp also measures AC leakage current, aiding in the identification of ground faults without disconnecting the earth ground stake from the system. With built-in data logging capabilities, users can automatically record and store up to 32,760 measurements for detailed analysis. The device supports Fluke Connect®, enabling wireless data transmission to smartphones or tablets for real-time monitoring and collaboration.

Key Features:

Stakeless Measurement: Performs earth ground loop resistance tests without auxiliary test stakes.
AC Leakage Current Measurement: Identifies AC leakage currents without disconnecting the earth ground stake.
Data Logging: Automatically records and stores up to 32,760 measurements.
Fluke Connect® Compatibility: Enables wireless data sharing and real-time monitoring via smartphones or tablets.
Rugged Design: Heavy-duty clamp jaw maintains alignment and calibration in demanding industrial environments.

Specifications:

Specification	Details
Maximum Voltage to Earth Ground	1000 V
Battery Type	4 x 1.5 V AA alkaline IEC/EN LR6
Battery Life	More than 15 hours
Frequency Range	40 Hz to 1 kHz
Ingress Protection	IEC/EN 60529: IP30 with jaw closed
Display	Digital reading, 9999 counts; Refresh rate: 4/s
Operating Temperature	-10 °C to +50 °C (14 °F to +122 °F)
Storage Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Operating Humidity	Non-condensing (<10 °C); ≤90% RH (10 °C to 30 °C); ≤75% RH (30 °C to 40 °C); ≤45% RH (40 °C to 50 °C)
Altitude	Operating: 2000 m; Storage: 12,000 m
Data Logging Capacity	Minimum of 32,760 measurements
Data Logging Interval	1 second to 59 minutes and 59 seconds
Safety Compliance	IEC/EN 61010-1: Pollution Degree 2; IEC/EN 61557-1
Measurement Compliance	IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V
