Description

Description:

The Fluke 1623-2 GEO Earth Ground Tester Kit is engineered to provide comprehensive testing capabilities for earth ground systems. This tester supports four testing methods:

3- and 4-Pole Fall-of-Potential Testing: Standard method using two ground stakes to measure earth resistance.
4-Pole Soil Resistivity Testing: Assesses soil resistivity, essential for designing grounding systems.
Selective Testing: Measures ground resistance using one clamp and stakes without disconnecting ground rods.
Stakeless Testing: Utilizes two clamps to measure earth ground loop resistance without ground stakes.

The tester features a one-button measurement concept for ease of use and includes internal memory capable of storing up to 1,500 records, accessible via a USB port for efficient data management. Its rugged design, rated IP56, ensures durability for outdoor use.

Key Features:

Multiple Testing Methods: Supports 3- and 4-pole earth ground measurement, 4-pole soil resistivity testing, selective testing, and stakeless testing.
User-Friendly Interface: One-button measurement concept simplifies operation.
Data Storage and Transfer: Internal memory for up to 1,500 records with USB port for data transfer.
Durable Design: IP56 rated for outdoor use with a rugged carrying case for protection and portability.

Technical Specifications:

Specification	Details
Measurement Methods	3- and 4-pole Fall-of-Potential, 4-pole Soil Resistivity, Selective, Stakeless
Display	Digital with backlight
Data Storage	Up to 1,500 records
Interface	USB port
Ingress Protection Rating	IP56
Power Supply	Six AA batteries
Dimensions	250 mm x 187 mm x 133 mm
Weight	Approximately 1.1 kg (2.43 lbs)

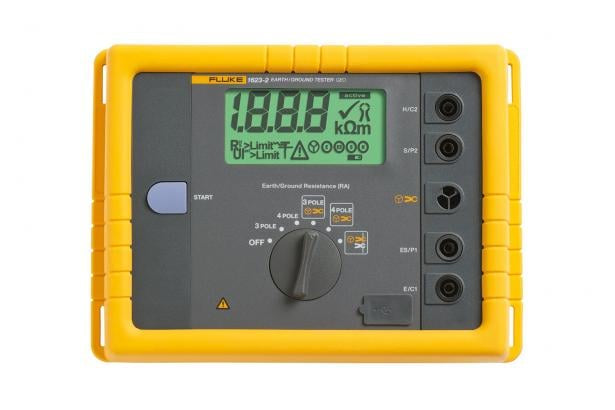

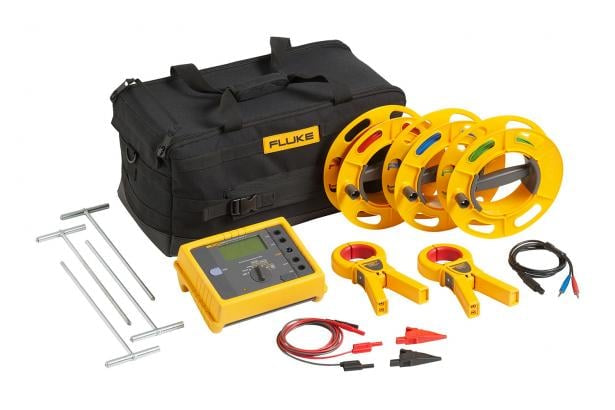

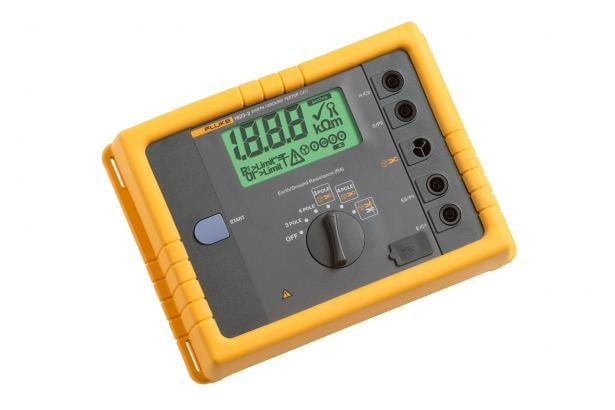

Fluke 1623-2 GEO Earth Ground Tester Kit

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

A versatile earth ground tester capable of performing all four types of earth ground measurements, designed for fast and accurate testing in various environments. Read more

SKU: 4325170

A versatile earth ground tester capable of performing all four types of earth ground measurements, designed for fast and accurate testing in various environments.
