Description

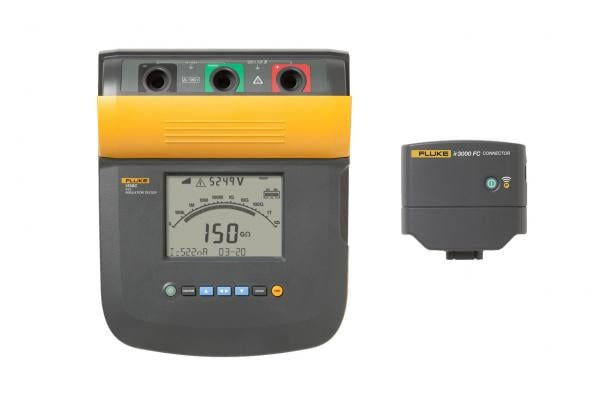

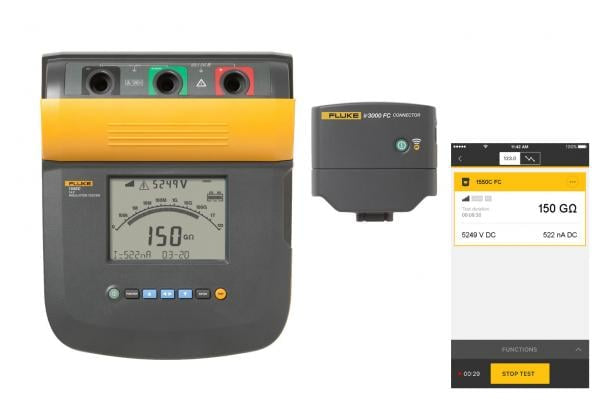

The Fluke 1555/KIT Insulation Resistance Tester Kit offers digital insulation testing up to 10 kV, making it suitable for testing a wide range of high-voltage equipment, including switchgear, motors, generators, and cables. With its robust design and advanced features, it ensures accurate and reliable measurements for preventive and predictive maintenance programs.

Key Features:

High Test Voltages: Selectable test voltages up to 10 kV, providing solutions for various applications.
Insulation Resistance Measurement: Measures resistance up to 2 TΩ, offering precise assessments of insulation integrity.
Safety Ratings: Rated CAT III 1000 V and CAT IV 600 V for enhanced user protection.
Data Storage: Stores up to 99 measurements, each with a unique, user-defined label for easy recall.
Automatic Calculations: Automatically computes Dielectric Absorption Ratio (DAR) and Polarization Index (PI) without additional setup.
Additional Measurements: Capacitance and leakage current measurements for comprehensive analysis.
Ramp Function: Facilitates breakdown testing by gradually increasing the test voltage.
Large LCD Display: Features a large digital/analog LCD for easy viewing.
Long Battery Life: Performs over 750 tests between charges, enhancing productivity.

Technical Specifications:

Specification	Details
Test Voltage Range	250 V to 10 kV
Insulation Resistance Range	Up to 2 TΩ
Voltage Measurement	Up to 600 V AC/DC
Capacitance Measurement	Up to 15 μF
Leakage Current Measurement	1 nA to 2 mA
Power Supply	12 V rechargeable battery
Dimensions	19.9 cm x 31.5 cm x 26.9 cm
Weight	6.6 kg

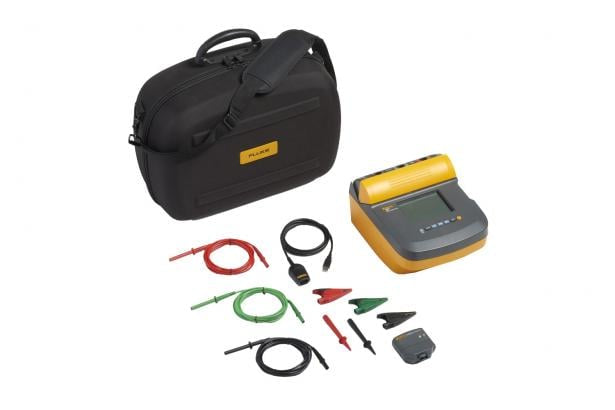

Kit Includes:

Fluke 1555 Insulation Resistance Tester
Test cables with alligator clips (Red/Black/Green)
Heavy-duty alligator clip lead set
Infrared adapter with interface cable
FlukeView Forms Basic CD-ROM and installation guide
AC power cord
Soft carrying case
User manual
