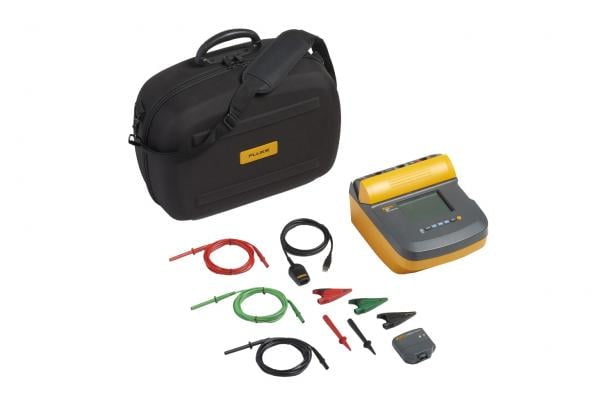

Fluke 1555 FC 10 kV Insulation Tester Kit

Description

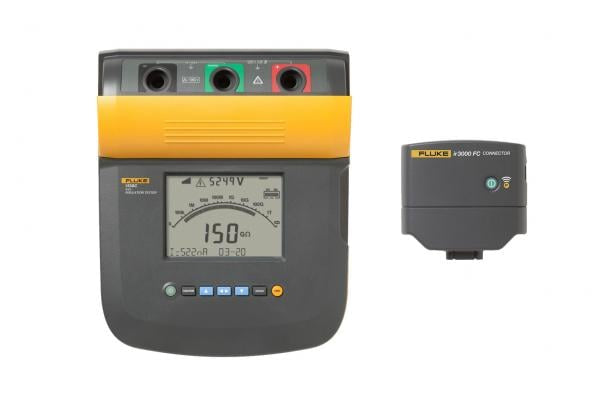

The Fluke 1555 FC Kit offers digital insulation testing up to 10 kV, making it ideal for testing a wide range of high-voltage equipment, including switchgear, motors, generators, and cables. With its robust design and advanced features, it ensures accurate and reliable measurements for preventive and predictive maintenance programs. The inclusion of Fluke Connect® allows for remote configuration, real-time trending, and data sharing, enhancing user safety and efficiency.

Key Features:

High Test Voltages: Selectable test voltages up to 10 kV, providing solutions for various applications.
Insulation Resistance Measurement: Measures resistance up to 2 TΩ, offering precise assessments of insulation integrity.

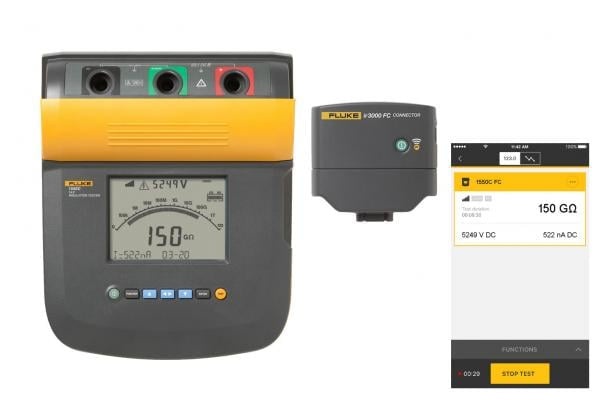

Fluke Connect® Compatibility: Allows for remote configuration, real-time trending, and data sharing via the Fluke Connect® app.
Safety Ratings: Rated CAT III 1000 V and CAT IV 600 V for enhanced user protection.
Data Storage: Stores up to 99 measurements, each with a unique, user-defined label for easy recall.
Automatic Calculations: Automatically computes Dielectric Absorption Ratio (DAR) and Polarization Index (PI) without additional setup.
Additional Measurements: Capacitance and leakage current measurements for comprehensive analysis.
Ramp Function: Facilitates breakdown testing by gradually increasing the test voltage.
Large LCD Display: Features a large digital/analog LCD for easy viewing.
Long Battery Life: Performs over 750 tests between charges, enhancing productivity.

Technical Specifications:

Specification	Details
Test Voltage Range	250 V to 10 kV
Insulation Resistance Range	Up to 2 TΩ
Voltage Measurement	Up to 600 V AC/DC
Capacitance Measurement	Up to 15 μF
Leakage Current Measurement	1 nA to 2 mA
Power Supply	12 V rechargeable battery
Dimensions	19.9 cm x 31.5 cm x 26.9 cm
Weight	6.6 kg
