Description

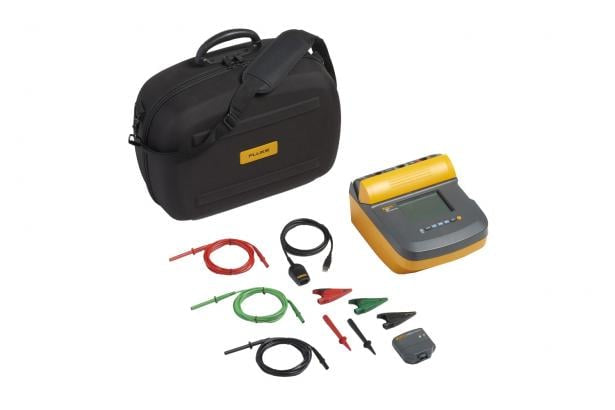

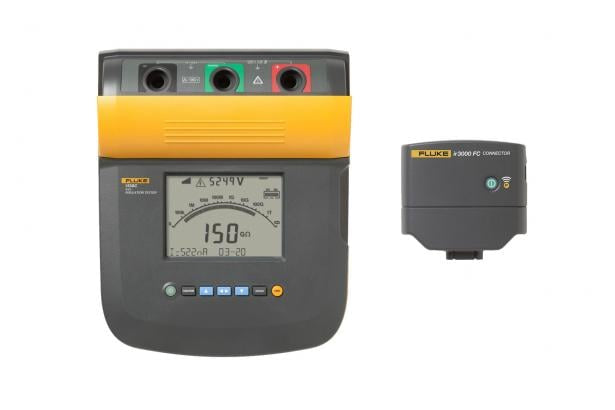

The Fluke 1550C/KIT is a complete solution for professionals conducting insulation resistance testing on high-voltage equipment such as switchgear, motors, generators, and cables. This kit includes the Fluke 1550C 5 kV Insulation Tester and accessories to facilitate efficient testing and data management.

Key Features:

High Test Voltages: Selectable test voltages up to 5 kV, suitable for a wide range of applications.
Insulation Resistance Measurement: Measures resistance up to 1 TΩ, providing accurate assessments of insulation integrity.

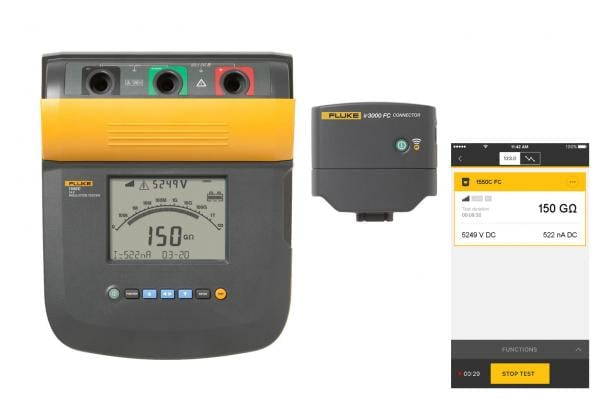

Fluke Connect™ Compatibility: Allows for remote configuration, real-time trending, and data sharing via the Fluke Connect™ app.
Data Storage: Stores up to 99 measurements, each with a unique, user-defined label for easy recall.
Automatic Calculations: Automatically computes Dielectric Absorption Ratio (DAR) and Polarization Index (PI) without additional setup.
Safety Ratings: Rated CAT III 1000 V and CAT IV 600 V for enhanced user protection.
Additional Measurements: Capacitance and leakage current measurements for comprehensive analysis.
Ramp Function: Facilitates breakdown testing by gradually increasing the test voltage.
Large LCD Display: Features a large digital/analog LCD for easy viewing.
Long Battery Life: Performs over 750 tests between charges, enhancing productivity.

Technical Specifications:

Specification	Details
Test Voltage Range	250 V to 5 kV
Insulation Resistance Range	Up to 1 TΩ
Voltage Measurement	Up to 600 V AC/DC
Capacitance Measurement	Up to 20 μF
Leakage Current Measurement	Up to 2 mA
Power Supply	12 V rechargeable battery
Dimensions	19.9 cm x 31.5 cm x 26.9 cm
Weight	6.6 kg

Fluke 1550C/KIT Insulation Resistance Tester Kit

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

A comprehensive 5 kV insulation resistance tester kit designed for high-voltage equipment testing, featuring Fluke Connect™ compatibility for enhanced data collection and remote operation. Read more

SKU: 3665127

A comprehensive 5 kV insulation resistance tester kit designed for high-voltage equipment testing, featuring Fluke Connect™ compatibility for enhanced data collection and remote operation.

Description

The Fluke 1550C/KIT is a complete solution for professionals conducting insulation resistance testing on high-voltage equipment such as switchgear, motors, generators, and cables. This kit includes the Fluke 1550C 5 kV Insulation Tester and accessories to facilitate efficient testing and data management.

Key Features:

High Test Voltages: Selectable test voltages up to 5 kV, suitable for a wide range of applications.
Insulation Resistance Measurement: Measures resistance up to 1 TΩ, providing accurate assessments of insulation integrity.
Fluke Connect™ Compatibility: Allows for remote configuration, real-time trending, and data sharing via the Fluke Connect™ app.
Data Storage: Stores up to 99 measurements, each with a unique, user-defined label for easy recall.
Automatic Calculations: Automatically computes Dielectric Absorption Ratio (DAR) and Polarization Index (PI) without additional setup.
Safety Ratings: Rated CAT III 1000 V and CAT IV 600 V for enhanced user protection.
Additional Measurements: Capacitance and leakage current measurements for comprehensive analysis.
Ramp Function: Facilitates breakdown testing by gradually increasing the test voltage.
Large LCD Display: Features a large digital/analog LCD for easy viewing.
Long Battery Life: Performs over 750 tests between charges, enhancing productivity.

Technical Specifications:

Specification	Details
Test Voltage Range	250 V to 5 kV
Insulation Resistance Range	Up to 1 TΩ
Voltage Measurement	Up to 600 V AC/DC
Capacitance Measurement	Up to 20 μF
Leakage Current Measurement	Up to 2 mA
Power Supply	12 V rechargeable battery
Dimensions	19.9 cm x 31.5 cm x 26.9 cm
Weight	6.6 kg
