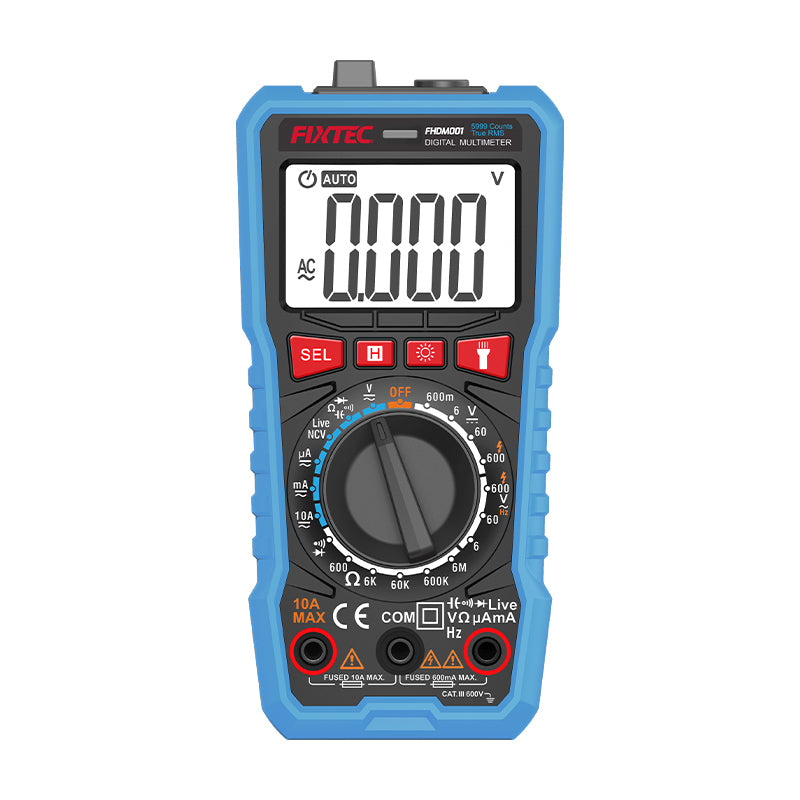

Professional FIXTEC Digital Meter with auto power-off, backlit LCD display, comprehensive measurement capabilities for voltage, current, resistance, and capacitance testing with protective silicone cover.
The FIXTEC Digital Meter FHDM001 is a professional-grade electrical testing instrument designed for comprehensive electrical measurements in both residential and industrial applications. This versatile multimeter features a large, clear LCD display with bright LED backlight functionality, enabling accurate readings even in dimly lit work environments. The device is equipped with quality test probes featuring soft, insulated rods for enhanced comfort and safety during operation. With auto power-off functionality, this digital meter ensures user safety by automatically shutting down when not in use, preventing unnecessary battery drain and potential electrical hazards.
This industrial-quality digital meter offers extensive measurement capabilities including DC voltage (0.1mV~600V), AC voltage (1mV~600V), DC current (1uA~10A), AC current (0.01uA~10A), resistance (0.1Ω~60MΩ), capacitance (1nF~60000μF), and frequency measurement (10~10MHz). The silicone protective cover safeguards the meter from accidental damage and provides electrical shock protection. The device is perfect for electricians, technicians, and DIY enthusiasts who need reliable electrical measurements for troubleshooting, maintenance, and construction work.
Packed in a professional color box, the FIXTEC FHDM001 Digital Meter combines accuracy, durability, and user-friendly design. Whether checking daily electricity usage, diagnosing electrical problems, measuring voltage and current, or testing resistance and capacitance, this multimeter delivers consistent, dependable performance. The compact design and comprehensive measurement range make it an essential tool for any electrical toolkit.
Key Features
- Auto Power-Off Function: Automatically shuts down when idle to ensure safety and conserve battery life

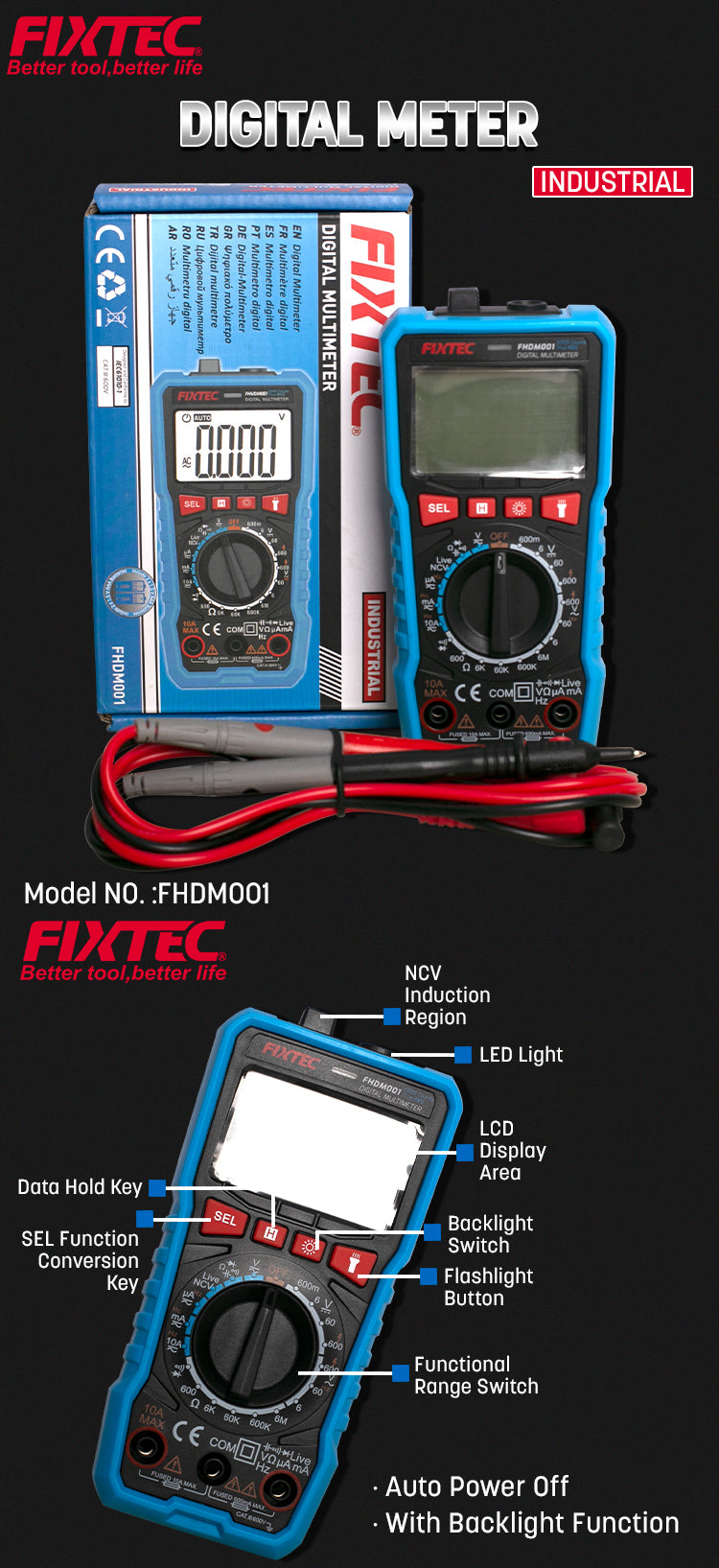

- Backlit LCD Display: Large, clear screen with bright LED backlight for easy reading in dark work environments
- Quality Test Probes: Long black and red color test pens with soft, insulated rods for comfort and safety
- Silicone Protective Cover: Durable cover protects the meter from accidental damage and prevents electric shock
- Industrial-Grade Accuracy: Comprehensive measurement capabilities for DC/AC voltage, current, resistance, capacitance, and frequency
Technical Specifications
| Specification |
Value |
| Model | FHDM001 |
| Brand | FIXTEC |
| DC Voltage Range | 0.1mV~600V ±(0.8%+5) |
| AC Voltage Range | 1mV~600V ±(1.0%+3) |
| DC Current Range | 1uA~10A ±(1.0%+2) |
| AC Current Range | 0.01uA~10A ±(1.0%+5) |
| Resistance Range | 0.1Ω~60MΩ ±(0.8%+2) |
| Capacitance Range | 1nF~60000μF ±(3.0%+5) |
| Frequency Range | 10~10MHz ±(0.1%+5) |
| Diode Test | 3.2V |
| Display Type | Large LCD with LED Backlight |
| Auto Power-Off | Yes |
| Test Probe Type | Black and Red Insulated Test Pens |
| Protective Cover | Silicone |

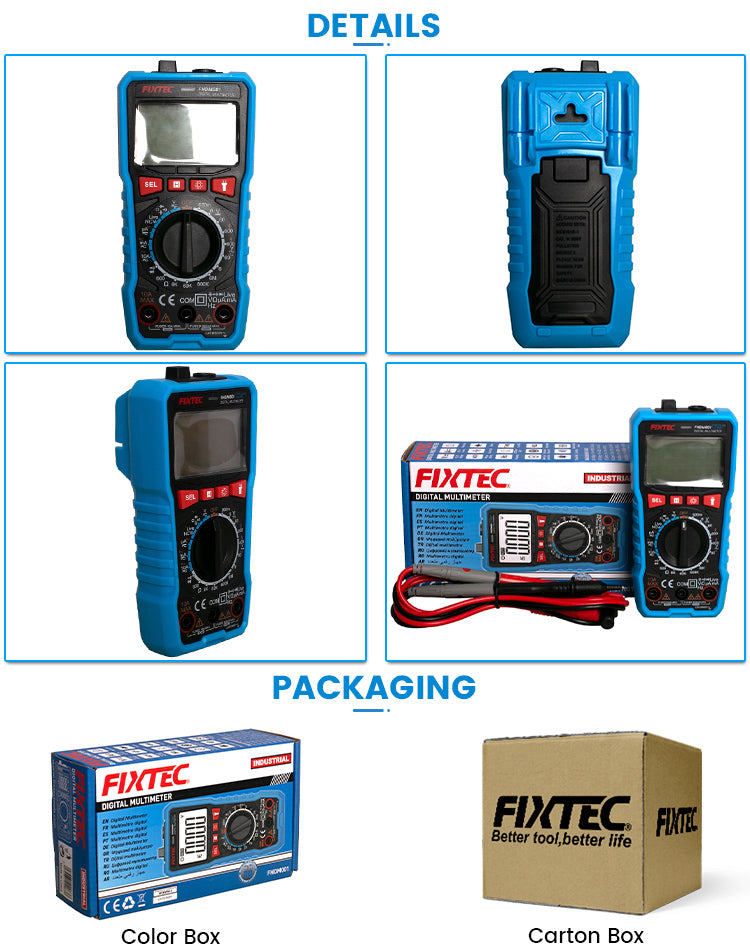

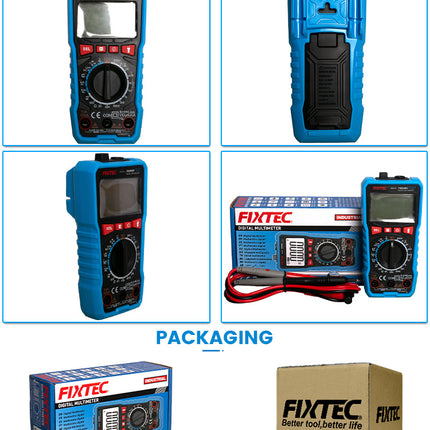

| Packaging | Color Box |
