The EZVIZ H5 PoE 2K Smart Security Camera is engineered to provide robust and reliable outdoor security. Utilizing Power over Ethernet (PoE) technology, it streamlines installation by transmitting both power and data through a single Ethernet cable, reducing the need for multiple wires and simplifying setup.
Equipped with a 1/2.8" Progressive Scan CMOS sensor, the camera delivers sharp and clear 2K resolution (2304 × 1296 pixels) video, capturing fine details to enhance security monitoring. Its 4mm lens with an F1.6 aperture offers a 102° diagonal field of view, ensuring comprehensive coverage of the monitored area.
The H5 PoE camera incorporates advanced AI-powered detection algorithms capable of distinguishing between humans and vehicles, thereby minimizing false alarms and providing accurate alerts. In response to detected intrusions, the camera activates its active defense system, which includes a powerful siren and two spotlights to deter potential threats effectively.
For continuous surveillance, the camera features color night vision capabilities, enabling it to capture vivid color images even in low-light conditions, with an effective range of up to 30 meters (98 feet). Its IP67-rated weatherproof design ensures durability and reliable performance in various environmental conditions, making it suitable for year-round outdoor use.
Users can communicate in real-time through the camera's two-way talk feature, facilitated by a built-in microphone and speaker. The device supports local storage via a microSD card up to 512GB and offers cloud storage options through EZVIZ CloudPlay (subscription required). Additionally, it is compatible with Google Assistant and Amazon Alexa, allowing for seamless integration into smart home ecosystems.
Key Features:
- 2K High-Resolution Video: Captures sharp and detailed footage for enhanced surveillance.
- Power over Ethernet (PoE): Simplifies installation by combining power and data transmission over a single cable.
- AI-Powered Human and Vehicle Detection: Accurately identifies human and vehicle shapes, reducing false alarms.
- Active Defense with Siren and Strobe Light: Deters intruders with audible and visual alerts.
- Color Night Vision: Provides clear, full-color video in low-light conditions up to 30 meters.
- Two-Way Talk: Enables real-time communication via the EZVIZ app.
- Weatherproof Design (IP67): Ensures reliable performance in various weather conditions.
- H.265 Video Compression: Efficiently reduces bandwidth and storage requirements without compromising video quality.
- Supports MicroSD Card up to 512GB: Offers ample local storage for recorded footage.
- Smart Home Integration: Compatible with Google Assistant and Amazon Alexa for voice control.
Technical Specifications:
| Specification |
Details |
| Model |
CS-H5-R201-1H3EKFL |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Lens |
4mm @ F1.6, Field of View: 102° (Diagonal), 86° (Horizontal), 46° (Vertical) |
| Minimum Illumination |
0.01 lux @ (F1.6, AGC ON), 0 Lux with IR |
| Day/Night Mode |
IR-Cut filter with auto-switching |
| Digital Noise Reduction |
3D DNR |
| Wide Dynamic Range |
Digital WDR |
| Night Vision Distance |
Up to 30 meters (98 feet) |
| Video Compression |
H.265 / H.264 |
| Maximum Resolution |
2304 × 1296 pixels |
| Frame Rate |
Self-adaptive during network transmission |
| Audio Communication |
Built-in microphone and speaker for two-way talk |
| Storage Options |
Supports microSD card up to 512GB; EZVIZ CloudPlay storage (subscription required) |
| Network Interface |
RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| Weather Resistance |
IP67-rated weatherproof design |
| Operating Conditions |
-30°C to 50°C (-22°F to 122°F), Humidity ≤ 95% (Non-condensing) |

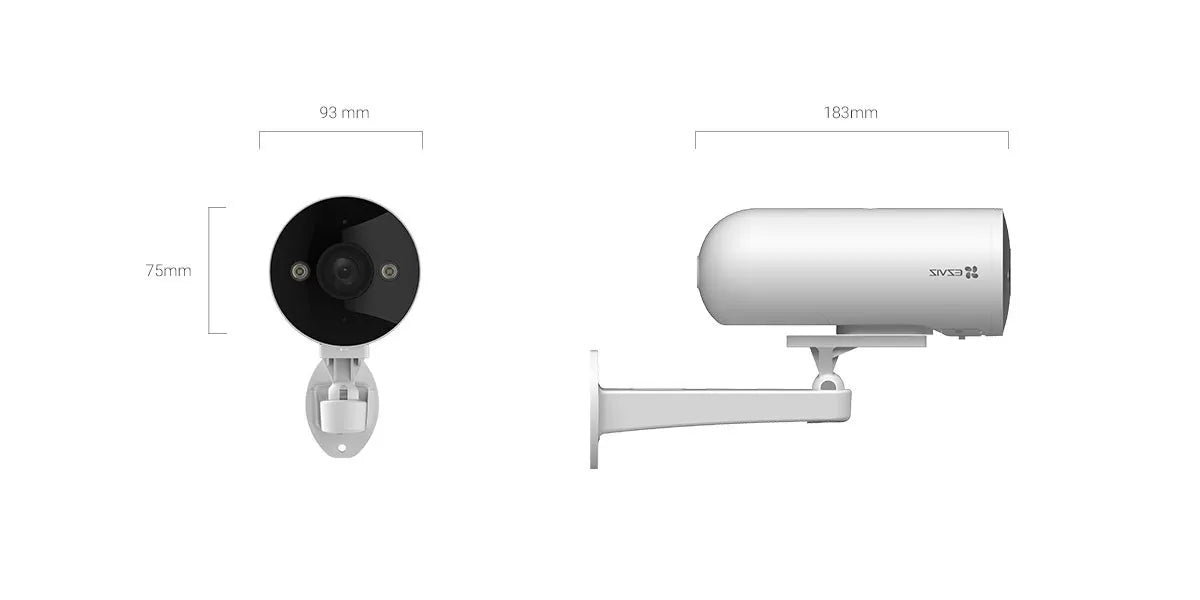

| Dimensions |
183 × 93 × 75 mm (7.20 × 3.66 × 2.95 inches) |
| Weight |
Net Weight: 470g (16.6 oz); With Packaging: 820g (28.9 oz) |
