About Product:

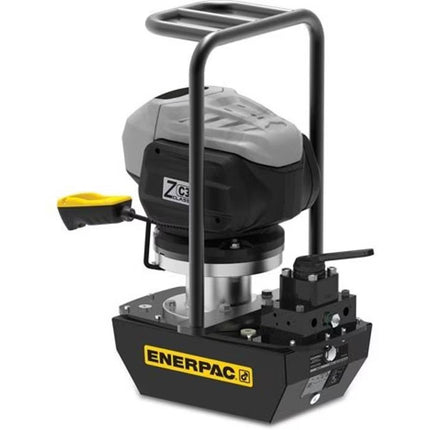

The Enerpac ZC-Series pump combines the performance of an electric pump with the convenience and portability of a battery pump. This quiet, cordless solution is ideal for applications where emission and noise are a concern, or when electricity or air is not readily available.

Power for the pump is supplied by a rechargeable 82V lithium-ion battery. The lithium-ion battery can provide impressive run times, even under extreme job site conditions. The ZC-Series Cordless Battery Pump has an oil capacity of 1.75 gallons and a flow rate of 32 in3/min.

Features:

High-flow cordless solution saves users time and money by eliminating the need for using a generator or electrical sources
Brushless 1.36 hp motor and 3-stage pump maximizes pump and tool productivity while minimizing heat build-up and downtime
Oil Capacity: 1.75 gallons; Flow rate-32 in3/min
The Lithium-Ion battery provides superior run time - even under extreme job site conditions, running approximately 50 cycles on a RC1006 and approximately 90 cycles on a RC504 cylinder on a single charge
Convenient 10 ft. pendant cord for hassle-free operation
Reduce noise level, 80 dba maximum
Zero emission hydraulic power pack

Specifications:

Maximum Operating Pressure (bar) : 700
Cylinder Compatability : Double-acting
Reservoir Capacity (cm3) : 6600
Reservoir Capacity (litres) : 6,6
Usable Oil Capacity (litres) : 6,6
Maximum Flow at Rated Pressure : 0,52 l/min
Output Flow Rate No Load (l/min) : 5,08
Output Flow Rate Load (l/min) : 0,52
Output Flow Rate at 276 bar (l/min) : 1,31
Output Flow Rate at 700 bar (l/min) : 0,52
Number of Outlets : 2
Motor Size (hp) : 1.4
Motor Size (kW) : 1,0
Duty Cycle : Intermittent
Valve Function : Advance / Neutral / Retract
Valve Operation : Manual
Valve Type : 4-way, 3-position, Tandem Center
Valve Model : VM43
Power Source : Battery
Pump Control : Pendant
Charger Voltage (VAC) : 230
Weight (kg) : 29,7

SKU: ZC3408JE
