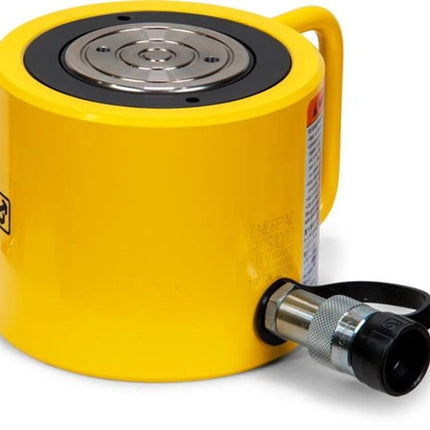

About Product:

RCS-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.

Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RCS cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. The entire RCS cylinder range is rated for high-pressure; 10,000 psi (700 bar).

Features:

Lightweight, low profile design for use in confined spaces
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
CR-400 coupler and dust cap included on all models
Grooved plunger end with threaded holes for mounting tilt saddles
Plated steel plungers
Single-acting spring return

Specifications:

Maximum Operating Pressure (bar) : 700
Capacity Class (tonnage) : 100
Maximum Cylinder Capacity Advance (kN) : 887
Stroke (mm) : 57
Collapsed Height A (mm) : 141
Extended Height B (mm) : 198
Return Type : Single-Acting, Spring Return
Plunger Type : Solid
Material : Steel
Cylinder Effective Area Advance (cm2) : 126,7
Oil Capacity Advance (cm3) : 722
Surface Treatment : Paint
Coupler : CR400 Coupler
Weight (kg) : 20,7

SKU: RCS1002
