About Product:

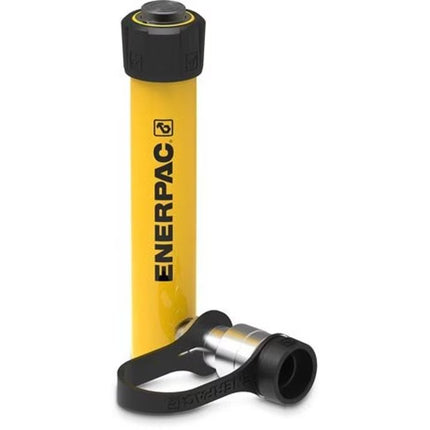

RC-TRIO is the next generation of the legendary Enerpac RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.

A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.

With so many hydraulic cylinder models to choose from, we’re confident you’ll find the perfect match for your applications, and if you already own prior RC-Series cylinders, the good news is the new cylinders share the same familiar dimensions and threads for full compatibility.

Features:

Bearing system with composite wear bands for optimal sideload resistance
Strengthened stop ring improves durability and side load resistance
Trio Hybrid pre-tensioned spring system provides faster retraction
High-grade polyethylene seals for low wear and long service life
Plunger wiper reduces contamination, extending cylinder life.
Collar and plunger threads and base mounting holes enable easy
fixturing (on most models)
Standard certified lifting eyes on cylinder models above 55 lbs. (25 kg) weight.
Interchangeable with optional CHM6 carrying handle
Designed for use in all positions
Baked enamel finish for increased corrosion resistance
Includes CR400 coupler, dust cap and collar thread protector
RC-Series model numbers, external dimensions and threads remain unchanged from prior RC Series cylinders

Specifications:

Maximum Operating Pressure (bar) : 700
Capacity Class (tonnage) : 5
Maximum Cylinder Capacity Advance (kN) : 45
Stroke (mm) : 177
Collapsed Height A (mm) : 273
Extended Height B (mm) : 450
Return Type : Single-Acting, Spring Return
Plunger Type : Solid
Material : Steel
Cylinder Effective Area Advance (cm2) : 6,4
Oil Capacity Advance (cm3) : 115
Surface Treatment : Paint
Coupler : CR400 Coupler
Weight (kg) : 2,4

SKU: RC57
