About Product:

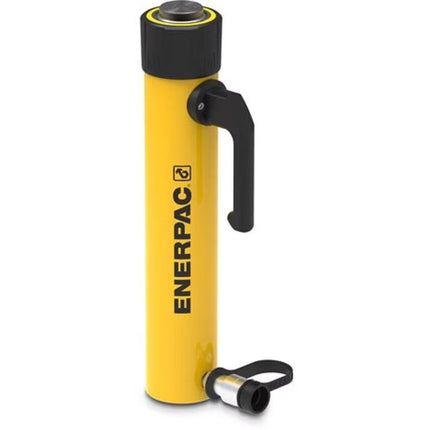

RC-TRIO is the next generation of the legendary Enerpac RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.

A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.

With so many hydraulic cylinder models to choose from, we’re confident you’ll find the perfect match for your applications, and if you already own prior RC-Series cylinders, the good news is the new cylinders share the same familiar dimensions and threads for full compatibility.

Features:

Bearing system with composite wear bands for optimal sideload resistance
Strengthened stop ring improves durability and side load resistance
Trio Hybrid pre-tensioned spring system provides faster retraction
High-grade polyethylene seals for low wear and long service life
Plunger wiper reduces contamination, extending cylinder life.
Collar and plunger threads and base mounting holes enable easy
fixturing (on most models)
Standard certified lifting eyes on cylinder models above 55 lbs. (25 kg) weight.
Interchangeable with optional CHM6 carrying handle
Designed for use in all positions
Baked enamel finish for increased corrosion resistance
Includes CR400 coupler, dust cap and collar thread protector
RC-Series model numbers, external dimensions and threads remain unchanged from prior RC Series cylinders

Specifications:

Collapsed Height A (mm) : 476
Optional Tilt Saddle Addition To Collapsed Height A1 (mm) : 15
Extended Height B (mm) : 838
Outside Diameter D (mm) : 86
Cylinder Bore Diameter E (mm) : 65,1
Plunger Diameter F (mm) : 57,2
Base to Advance Port H (mm) : 25
Saddle Diameter J (mm) : 51
Saddle Protrusion from Plunger K1 (mm) : 10
Plunger Internal Thread O (in) : 1 1/2" - 16
Plunger Thread Length P (mm) : 25
Saddle Maximum Tilt Angle Radius (degrees) : 5
Base Mounting Holes Bolt Circle U (mm) : 59
Base Mounting Holes Thread V : 1/2"- 13 un
Collar Thread Size W : 3 5/16" - 12 un
Collar Thread W (in) : 3 5/16" - 12 UN
Collar Thread Length X (mm) : 49
Base Mounting Holes Thread Depth Z (mm) : 19

SKU: RC2514
