Description

Description

Features:

  • Enerpac's ATM-Series Tools help correct flange misalignment and allow bolts to be placed into joints. This alignment takes place during pipe work construction or maintenance.
  • These tools provide pipe installers and maintenance personnel with some of the simplest, safest and most productive solutions available for flange alignment in the market today.
  • Enerpac ATM-Series tools rectify twist and rotational misalignment quickly, safely, and without the need for an external power source
  • Appropriate for use on most ANSI, API, BS and DIN flanges
  • No slings, hooks or lifting gear required
  • Can be installed and used in any position (horizontally or vertically)
  • Portable, lightweight design enables easy transport and use, even in remote locations

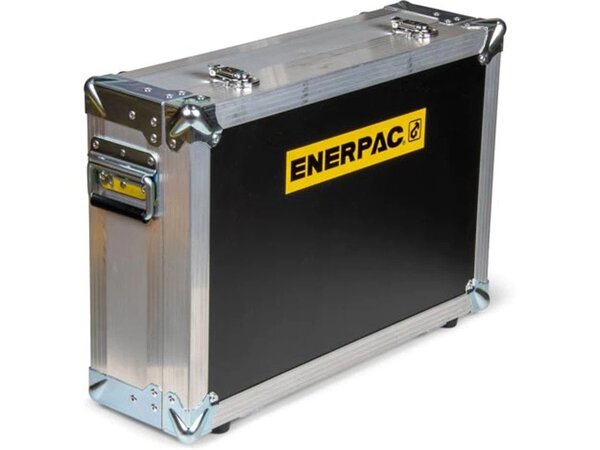

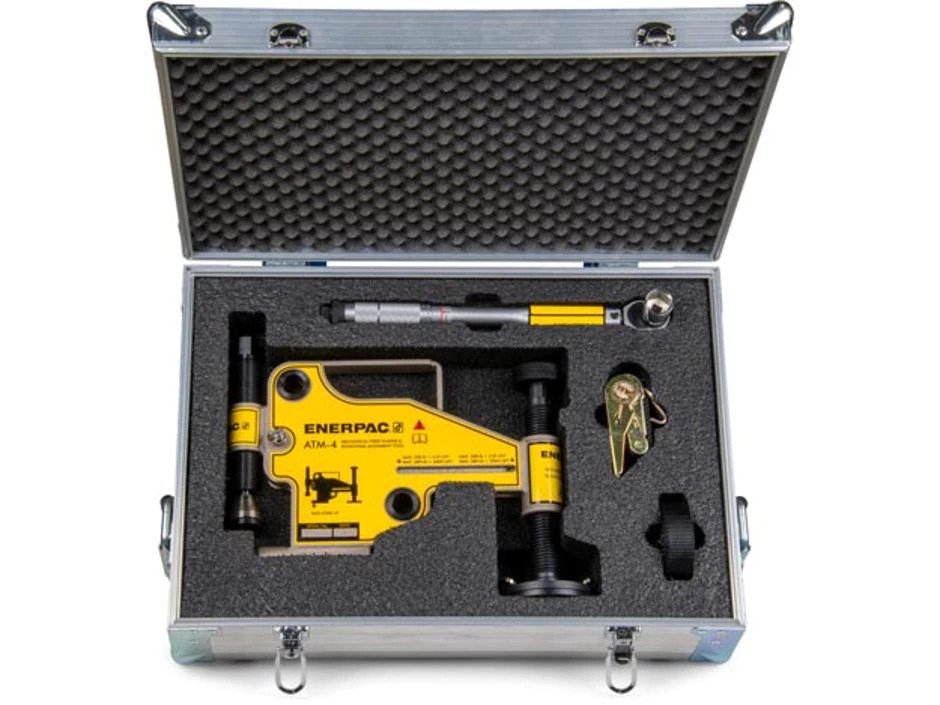

  • Each ATM-model contains a tool and kit box

Specifications:

  • Maximum Reaction Force (metric ton) : 4
  • Maximum Reaction Force (kN) : 40
  • Minimum Bolt Size (mm) : 25
  • Maximum Flange Wall Thickness (mm) : 30 - 133
  • Reaction Force 2 Max (metric ton) : 4
  • Bolt Hole Diameter Min (mm) B : 25
  • Misalignment Min (mm) M : 0
  • Weight (kg) : 8.6

Read more

Product form

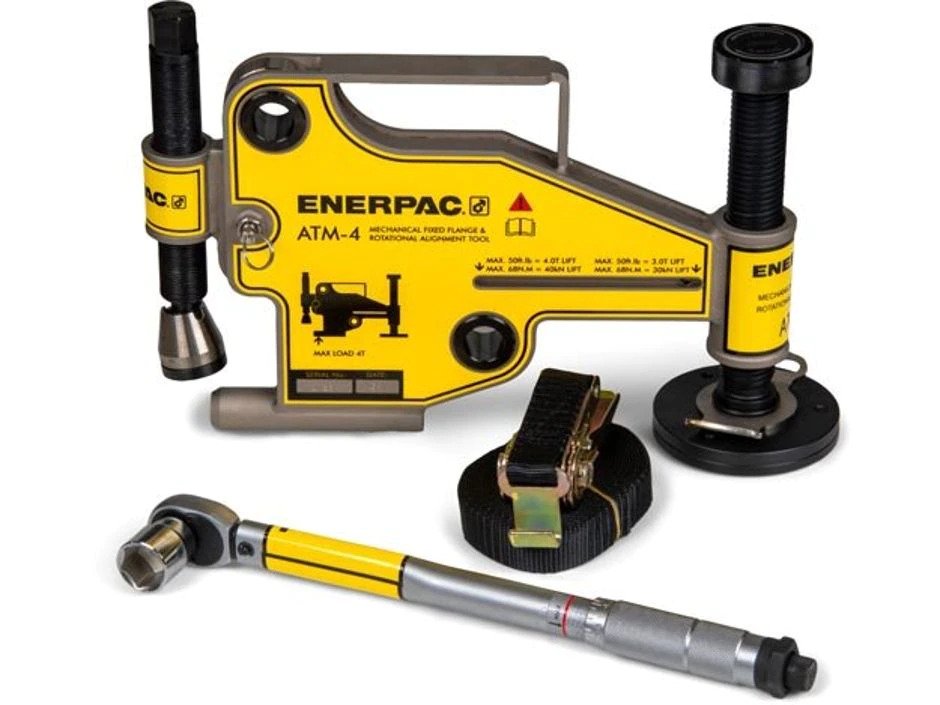

Flange Alignment Tool 4 Ton | ATM4

ENERPAC

SKU: ATM4

5,603,750 IQD

    Description

    Description

    Features:

    • Enerpac's ATM-Series Tools help correct flange misalignment and allow bolts to be placed into joints. This alignment takes place during pipe work construction or maintenance.
    • These tools provide pipe installers and maintenance personnel with some of the simplest, safest and most productive solutions available for flange alignment in the market today.
    • Enerpac ATM-Series tools rectify twist and rotational misalignment quickly, safely, and without the need for an external power source
    • Appropriate for use on most ANSI, API, BS and DIN flanges
    • No slings, hooks or lifting gear required
    • Can be installed and used in any position (horizontally or vertically)
    • Portable, lightweight design enables easy transport and use, even in remote locations
    • Each ATM-model contains a tool and kit box

    Specifications:

    • Maximum Reaction Force (metric ton) : 4
    • Maximum Reaction Force (kN) : 40
    • Minimum Bolt Size (mm) : 25
    • Maximum Flange Wall Thickness (mm) : 30 - 133
    • Reaction Force 2 Max (metric ton) : 4
    • Bolt Hole Diameter Min (mm) B : 25
    • Misalignment Min (mm) M : 0
    • Weight (kg) : 8.6

    Read more
