Description

Premium dual British Standard 13A switched socket with neon indicator, safety shutters, and screw terminals for secure residential and commercial installations

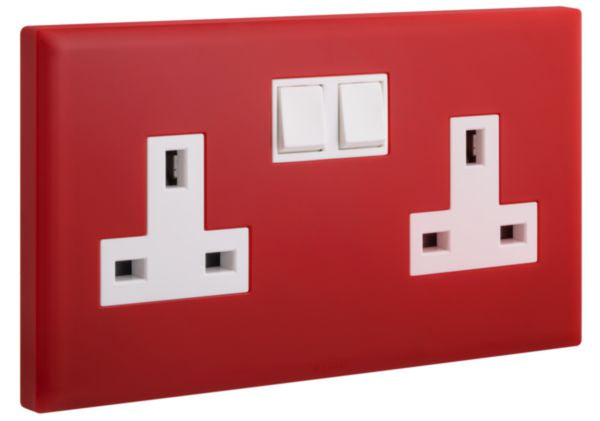

The Eloe 2 Gang British Standard 13A Red Single Pole Switched Socket with Neon in White is a premium electrical outlet solution designed for modern residential and commercial installations. This dual socket outlet features two independent 2P+E British Standard 13A outlets operating at 250V with 50-60Hz frequency, providing reliable power distribution for multiple devices simultaneously. Each socket is equipped with an individual on/off switch and neon indicator light for enhanced functionality and safety. Crafted from high-quality thermoplastic material with a glossy white finish (RAL 9003), this socket combines aesthetic appeal with superior durability. The product incorporates safety shutters to maximize child protection, making it ideal for family environments. The screw-type terminals ensure secured and enhanced contacts, while marked terminals facilitate easy identification during installation. With an IK04 impact resistance rating and IP20 degree of protection, this socket is suitable for indoor use in both residential and small commercial applications. The Eloe socket comes complete with a protective shell against paint and dust during the installation phase and includes screws for both flush and surface mounting on plastic and metal boxes. The quick and easy plate clipping system enables rapid installation without requiring specialized tools. Operating temperature range of -5 to 50°C ensures reliable performance across various environmental conditions, while the halogen-free construction meets modern safety and environmental standards.

Key Features

  • Dual 2P+E British Standard 13A outlets with 250V rated voltage
  • Individual on/off switch with neon indicator light for each socket
  • Safety shutters for maximum child protection
  • Screw-type terminals for secured and enhanced electrical contacts
  • Quick and easy plate clipping system for rapid installation
  • Halogen-free thermoplastic construction with glossy white finish
  • Marked terminals for easy identification
  • Protective shell against paint and dust during installation
  • Includes screws for both flush and surface mounting
  • IK04 impact resistance and IP20 protection rating

Technical Specifications

Specification Value
Product RangeEloe
ManufacturerLegrand
Reference Number618049
EAN Code3414972264815
StandardBritish Standard
Socket Configuration2 x 2P+E
Rated Current13 A
Rated Voltage250 V
Frequency50-60 Hz
Number of Socket Outlets2
Number of Modules4
Switchable Socket Outlets2
Connection TypeScrewed Terminal
Terminal Capacity1-4 mm²
Cable TypeFlexible or Rigid
With Function LightingYes (Neon Indicator)
With On/Off SwitchYes
Enhanced Contact ProtectionYes
Safety ShuttersYes
MaterialThermoplastic
ColourWhite
RAL Number9003
Surface FinishingGlossy
Halogen FreeYes
Device Width146 mm
Device Height86 mm
Device Depth35 mm
Built-in Depth22.3 mm
Mounting MethodFlush-mounted
Type of FasteningMounting with Screw
Degree of Protection (IP)IP20
Degree of Impact Strength (IK)IK04
Operating Temperature Range-5 to 50 °C
Storage Temperature Range-10 to 70 °C
Voltage TypeAC
Protective ContactFlat
Assembly ArrangementBasic Element with Full Cover Plate
Terminal MarkingYes
PrewiredNo
Recommended UseInside Use Only

Read more

Product form

Legrand Eloe 2 Gang British Standard 13A Red Switched Socket White | 618049

Legrand

    SKU: 618049

      Description

      Premium dual British Standard 13A switched socket with neon indicator, safety shutters, and screw terminals for secure residential and commercial installations
      The Eloe 2 Gang British Standard 13A Red Single Pole Switched Socket with Neon in White is a premium electrical outlet solution designed for modern residential and commercial installations. This dual socket outlet features two independent 2P+E British Standard 13A outlets operating at 250V with 50-60Hz frequency, providing reliable power distribution for multiple devices simultaneously. Each socket is equipped with an individual on/off switch and neon indicator light for enhanced functionality and safety. Crafted from high-quality thermoplastic material with a glossy white finish (RAL 9003), this socket combines aesthetic appeal with superior durability. The product incorporates safety shutters to maximize child protection, making it ideal for family environments. The screw-type terminals ensure secured and enhanced contacts, while marked terminals facilitate easy identification during installation. With an IK04 impact resistance rating and IP20 degree of protection, this socket is suitable for indoor use in both residential and small commercial applications. The Eloe socket comes complete with a protective shell against paint and dust during the installation phase and includes screws for both flush and surface mounting on plastic and metal boxes. The quick and easy plate clipping system enables rapid installation without requiring specialized tools. Operating temperature range of -5 to 50°C ensures reliable performance across various environmental conditions, while the halogen-free construction meets modern safety and environmental standards.

      Key Features

      • Dual 2P+E British Standard 13A outlets with 250V rated voltage
      • Individual on/off switch with neon indicator light for each socket
      • Safety shutters for maximum child protection
      • Screw-type terminals for secured and enhanced electrical contacts
      • Quick and easy plate clipping system for rapid installation
      • Halogen-free thermoplastic construction with glossy white finish
      • Marked terminals for easy identification
      • Protective shell against paint and dust during installation
      • Includes screws for both flush and surface mounting
      • IK04 impact resistance and IP20 protection rating

      Technical Specifications

      Specification Value
      Product RangeEloe
      ManufacturerLegrand
      Reference Number618049
      EAN Code3414972264815
      StandardBritish Standard
      Socket Configuration2 x 2P+E
      Rated Current13 A
      Rated Voltage250 V
      Frequency50-60 Hz
      Number of Socket Outlets2
      Number of Modules4
      Switchable Socket Outlets2
      Connection TypeScrewed Terminal
      Terminal Capacity1-4 mm²
      Cable TypeFlexible or Rigid
      With Function LightingYes (Neon Indicator)
      With On/Off SwitchYes
      Enhanced Contact ProtectionYes
      Safety ShuttersYes
      MaterialThermoplastic
      ColourWhite
      RAL Number9003
      Surface FinishingGlossy
      Halogen FreeYes
      Device Width146 mm
      Device Height86 mm
      Device Depth35 mm
      Built-in Depth22.3 mm
      Mounting MethodFlush-mounted
      Type of FasteningMounting with Screw
      Degree of Protection (IP)IP20
      Degree of Impact Strength (IK)IK04
      Operating Temperature Range-5 to 50 °C
      Storage Temperature Range-10 to 70 °C
      Voltage TypeAC
      Protective ContactFlat
      Assembly ArrangementBasic Element with Full Cover Plate
      Terminal MarkingYes
      PrewiredNo
      Recommended UseInside Use Only
