Premium dual-socket wiring device combining multistandard 2P+E and Euro-US 2P functionality with advanced safety shutters, screw terminals, and contemporary white design for residential and commercial applications.

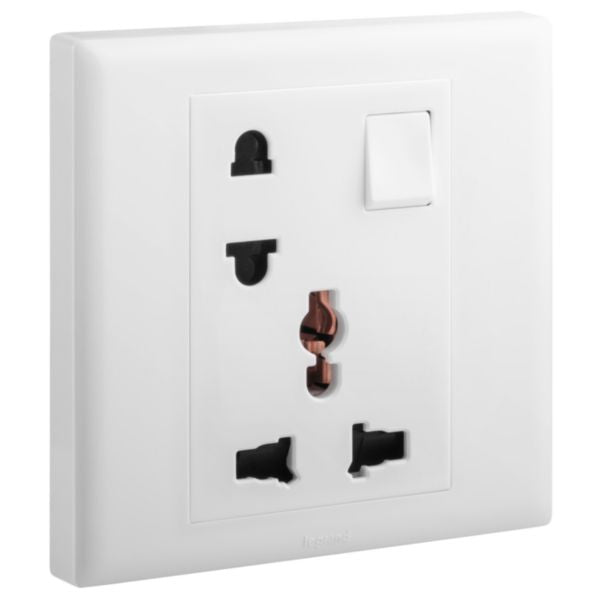

The Eloe 1 Gang Switched Multistandard Euro-US Socket in White is a premium wiring device designed for modern residential and commercial applications. This innovative product combines dual socket functionality with advanced safety features, offering both a 2P+E multi-standard socket rated at 250V and a 2P Euro-US socket rated at 16A, 250V in a single, elegantly designed unit. The complete set is delivered as one integrated product under reference number 618065, ensuring seamless compatibility and installation.
This socket outlet features screw-type terminals that provide secured and enhanced contact points, with clearly marked terminals for easy identification during installation. The quick and easy plate clipping system allows for rapid installation in both flush-mounted and surface-mounted configurations. Safety is paramount with this device, as it is fitted with protective safety shutters to maximize child protection. The glossy white finish with a squarrish shape and full rocker plate aesthetic provides a contemporary appearance suitable for any interior design scheme.
The Eloe socket is delivered with a protective shell against paint and dust during the installation phase, along with screws suitable for both plastic and metal flush and surface boxes. With an operating temperature range of -5 to 50°C and storage temperature range of -10 to 70°C, this device is built for durability. It maintains an IP20 protection rating and IK04 impact strength rating, making it suitable for standard indoor use. The halogen-free thermoplastic material construction ensures environmental compliance with RoHS directives.
Key Features
- Dual socket configuration with 2P+E multistandard and 2P Euro-US sockets for versatile connectivity
- Safety shutters fitted to maximize child protection and prevent accidental contact
- Screw-type terminals with marked identification for secure and enhanced electrical contacts
- Quick and easy plate clipping system enabling rapid installation in flush and surface mounting
- Delivered with protective shell, installation screws for plastic and metal boxes, and comprehensive documentation
Technical Specifications
| Specification |
Value |
| Product Type | Switched Multistandard Socket with Euro-US Socket |
| Socket Configuration | 2P+E Multi standard, 250V + 2P Euro-US, 16A, 250V |
| Number of Socket Outlets | 2 outlets (multistandard and Euro-US) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Connection Type | Screw-type terminals |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or rigid cable |
| Mounting Method | Flush-mounted |
| Device Dimensions | 86 mm width x 86 mm height |
| Built-in Depth | 26.5 mm |
| Minimum Box Depth | 35 mm |
| Material | Halogen-free Thermoplastic |
| Colour | Glossy White (RAL 9003) |
| Surface Finishing | Glossy |
| Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Safety Features | Enhanced contact protection with safety shutters |
| Switching Function | Yes - both socket outlets are switchable |
| With Eject Mechanism | Yes |
| Compliance | RoHS Directive compliant |
| Reference Number | 618065 |
| EAN Code | 3414972265157 |
