Premium multistandard switched socket with 2P+E configuration, 16A/250V rating, safety shutters, screw terminals, and glossy white finish for modern residential and commercial applications.

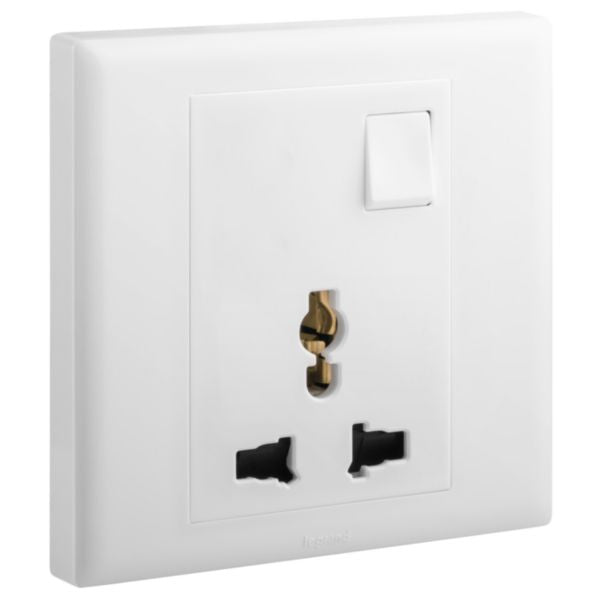

The Eloe 1 gang multistandard single pole switched socket in white is a premium electrical outlet designed for modern residential and commercial installations. This socket features a 2P+E multi-standard configuration rated at 250V, making it compatible with various plug types across different regions. The product incorporates screw-type terminals for enhanced contact security and reliability, with marked terminals for easy identification during installation. The glossy white finish with a squarrish shape and full rocker plate aesthetic provides a contemporary look that complements any interior design.
This switched socket comes complete with safety shutters to maximize child protection and is delivered with a protective shell against paint and dust during the installation phase. The quick and easy plate clipping system ensures straightforward installation in both flush and surface-mounted boxes. With a nominal current rating of 16A and operating temperature range of -5 to 50°C, this socket is suitable for standard indoor applications. The product meets IP20 protection requirements and IK04 impact strength standards, ensuring durability and safety in typical household environments.
The Eloe socket is halogen-free and complies with RoHS directives, making it an environmentally responsible choice. It features an eject mechanism for safe plug removal and supports flexible or rigid cable connections with terminal capacity ranging from 1-4mm². The device dimensions of 86mm x 86mm with a built-in depth of 20.9mm make it compatible with standard electrical boxes. This multistandard socket represents Legrand's commitment to quality, safety, and user convenience in electrical installations.
Key Features
- 2P+E multistandard configuration compatible with various international plug types
- Safety shutters for enhanced child protection and electrical safety
- Screw-type terminals with marked identification for secure connections
- Quick and easy plate clipping system for straightforward installation
- Delivered with protective shell against paint and dust during installation
- Eject mechanism for safe and easy plug removal
- Halogen-free and RoHS compliant for environmental responsibility
- Glossy white finish with modern squarrish design and full rocker plate aesthetic
- Compatible with both flush and surface-mounted electrical boxes
- Supports flexible or rigid cable connections with 1-4mm² terminal capacity
Technical Specifications
| Specification |
Value |
| Product Type | 1 Gang Multistandard Single Pole Switched Socket |
| Electrical Configuration | 2P+E Multi-standard, 250V |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Connection Type | Screw-type terminals |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or rigid |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Assembly Type | Basic element with full cover plate |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with screw |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Built-in Depth | 20.9 mm |
| Minimum Box Depth | 35 mm |
| Color | White (RAL 9003) |
| Surface Finish | Glossy |
| Material | Thermoplastic |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5 to 50°C |
| Storage Temperature | -10 to 70°C |
| Voltage Type | AC |
| Safety Features | Safety shutters, enhanced contact protection, eject mechanism |
| Halogen Free | Yes |
| RoHS Compliant | Yes |
| Terminal Marking | Yes |
| Prewired | No |
| Smart Home Compatible | No (Apple HomeKit, Amazon Alexa, Google Assistant not supported) |
| SKU/Reference | 618067 |
| EAN Code | 3414972265218 |
| Brand | Legrand |
| Series | Eloe |
