Premium dual Euro-US electrical socket with 2x2P+E outlets, 16A rating, child safety shutters, and quick-clip installation for international residential and commercial use.

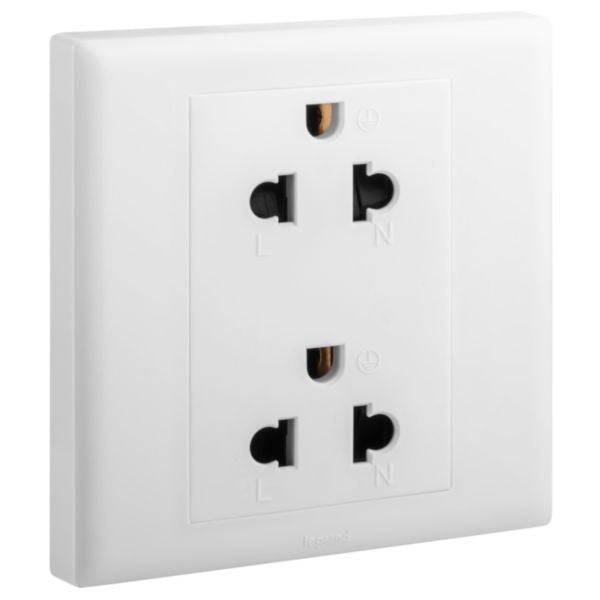

The Eloe 1 Gang 2x2 Pole+E Euro-US Socket in White is a premium dual-outlet electrical socket combining European and US standards in a single, elegant device. Manufactured by Legrand under reference 618064, this multi-standard socket features two independent 2P+E outlets rated at 16A and 250V, making it ideal for international installations and spaces requiring both European and American plug compatibility. The socket is designed with safety as a priority, incorporating protective shutters to maximize child protection and prevent accidental contact with live parts.
This socket is engineered for durability and ease of installation. It features screw-type terminals that ensure secured and enhanced electrical contacts, with clearly marked terminals for easy identification during installation. The device comes complete with a protective shell against paint and dust during the installation phase, along with screws suitable for both plastic and metal flush-mounted boxes. The glossy white finish (RAL 9003) provides a modern aesthetic that complements contemporary interior designs while maintaining professional appearance in residential and light commercial applications.
The Eloe socket incorporates advanced design features including a quick and easy plate clipping system for rapid installation, an eject mechanism for safe plug removal, and a squarrish shape with a full rocker plate aesthetic. Operating at 50-60 Hz frequency, with an operating temperature range of -5 to 50°C, this socket is built from halogen-free thermoplastic material meeting modern environmental standards. With IP20 protection rating and IK04 impact strength rating, it provides reliable performance in indoor installations with standard environmental conditions.
Key Features
- Dual 2P+E Euro-US outlets with 16A 250V rating for international plug compatibility
- Enhanced child protection with integrated safety shutters preventing accidental contact
- Screw-type terminals with marked identification for secure and easy installation
- Quick and easy plate clipping system for rapid installation without tools
- Halogen-free thermoplastic material meeting modern environmental and safety standards
- Complete installation kit including protective shell, dust cover, and mounting screws
- Glossy white finish (RAL 9003) with modern aesthetic design
- Eject mechanism for safe and convenient plug removal
- IP20 protection rating suitable for indoor residential and commercial applications
- Operating temperature range -5 to 50°C with 50-60 Hz frequency compatibility
Technical Specifications
| Specification |
Value |
| Product Model | Multi-standard Socket |
| Number of Socket Outlets | 2 (2x 2P+E) |
| Rated Current | 16 A |
| Rated Voltage | 250 V |
| Frequency | 50-60 Hz |
| Connection Type | Screwed Terminal |
| Cable Section | 1-4 mm² |
| Mounting Method | Flush-mounted |
| Device Dimensions | 86 mm (width) x 86 mm (height) |
| Built-in Depth | 26.7 mm |
| Minimum Box Depth | 35 mm |
| Material | Halogen-free Thermoplastic |
| Color | White (RAL 9003) |
| Surface Finish | Glossy |
| Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5 to 50°C |
| Storage Temperature | -10 to 70°C |
| Type of Fastening | Mounting with Screw |
| Terminal Marking | Yes |
| Safety Shutters | Yes (Enhanced Contact Protection) |
| Eject Mechanism | Yes |
| Reference Number | 618064 |
| EAN Code | 3414972264471 |
| Manufacturer | Legrand |
