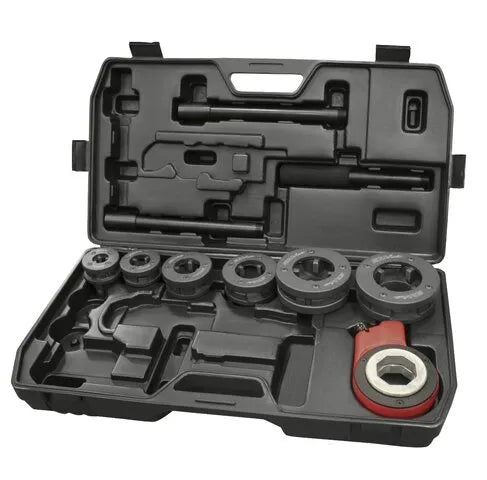

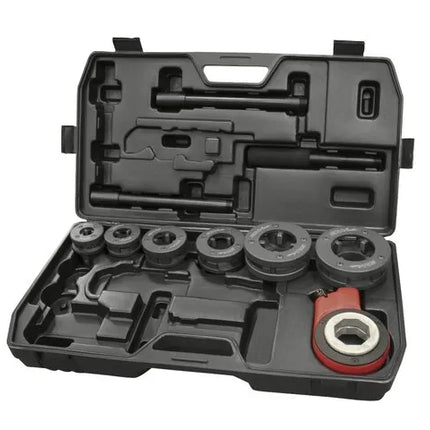

The EGA Master Drop Head Threader 63137 is a professional manual threading head engineered to deliver accurate, consistent, and high-quality threads. Thanks to the internal machining of the aluminium cover, the four combs remain perfectly concentric, ensuring smooth operation and excellent threading results.
Designed for manual use, this drop head allows easy threading with improved stability and control. The extended neck design enhances positioning, reduces vibrations during operation, and improves overall thread quality, while also facilitating easy extraction of the head from the ratchet after threading.
Compatible with NPT threading standards, the 63137 model includes interchangeable combs and is built from durable, high-grade materials, making it ideal for plumbing, mechanical installations, and industrial maintenance applications.
Specifications & Features
-
Model: 63137
-
Type: Drop Head Threader
-
Thread Type: NPT
-
Pipe Range (O.D.): 1/2″ – 2″
-
Die System: Interchangeable combs
-
Head Body Material: Malleable cast iron
-
Lid Material: Aluminium
-
Comb Material: Special steel
-
Comb Hardness: 58–62 HRC
-
Rattle Material: Aluminium alloy
-
Reducer Material: Aluminium
-
Finish (Head): Semi-textured black epoxy powder
-
Finish (Rattle): Red epoxy powder, RAL 2002
-
Application: Manual pipe threading with high precision
