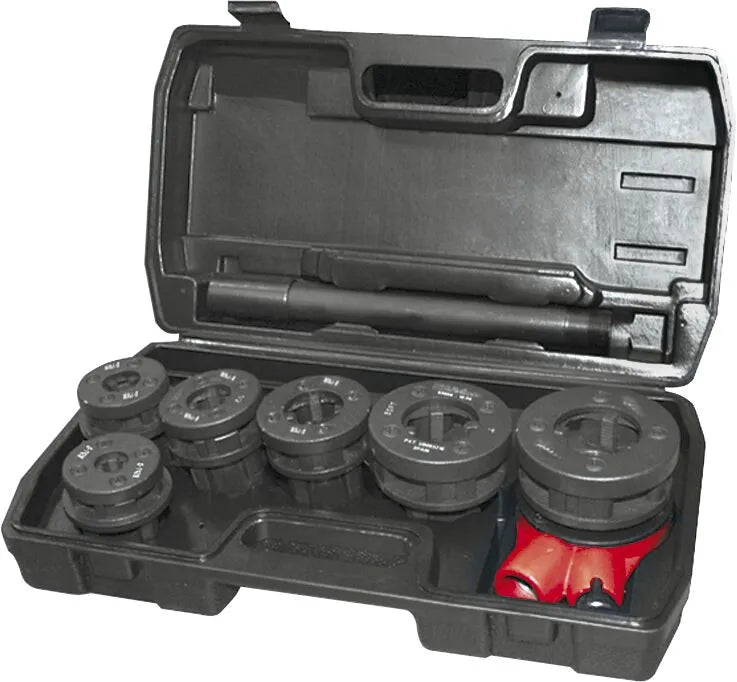

The EGA Master Drop Head Threader 63031 is a high-precision manual threading head engineered to deliver consistent and high-quality pipe threads. Thanks to the internal machining of the aluminium cover, the four combs remain perfectly concentric, ensuring smooth operation and accurate threading results.
This model is designed for easy manual threading with excellent stability and control. The extended neck design improves positioning, reduces vibrations during operation, and enhances overall thread quality while facilitating easy extraction of the head from the ratchet after use.
Compatible with NPT threading standards, the drop head includes interchangeable combs to meet professional plumbing and industrial requirements. Built with durable materials and premium finishes, it is ideal for mechanical installations, maintenance tasks, and professional pipe threading applications.
Specifications & Features
-
Model: 63031
-
Type: Drop Head Threader
-
Thread Type: NPT
-
Pipe Range (O.D.): 1/2″ – 1″
-
Die System: Interchangeable combs
-
Head Body Material: Malleable cast iron
-
Lid Material: Aluminium
-
Comb Material: Special steel
-
Comb Hardness: 58–62 HRC
-
Rattle Material: Aluminium alloy
-
Reducer Material: Aluminium
-
Finish (Head): Semi-textured black epoxy powder
-
Finish (Rattle): Red epoxy powder, RAL 2002
-
Application: Manual pipe threading with high precision
