Description

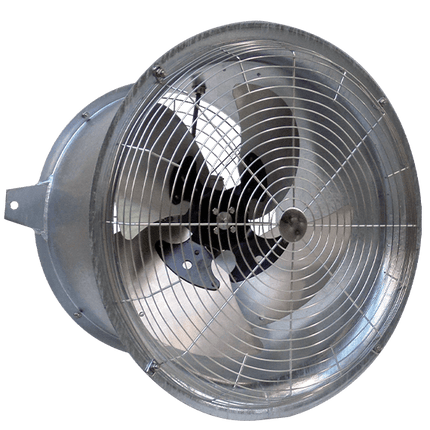

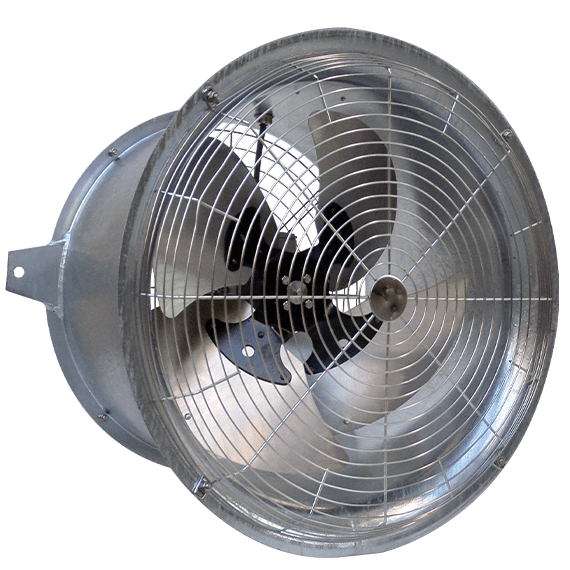

The Efaflu VTTF Axial Flow Fan is a robust and high-efficiency ventilation solution designed with a long casing structure to enhance airflow performance and cooling efficiency. It is specifically engineered for demanding applications such as power transformers and heat exchangers, where consistent and reliable airflow is essential.

Built using a carbon steel casing and molded aluminum blades, the VTTF ensures durability and long operational life even in harsh industrial environments. The aluminum frame motor combined with an IP56 terminal box provides superior protection against dust, moisture, and environmental conditions.

Developed and tested in accordance with EN IEC 60076-22-6 standards, this fan guarantees reliable performance and compliance with international cooling system requirements.


Features:

  • Long casing design for enhanced airflow efficiency
  • Low noise operation
  • Durable carbon steel construction
  • High-quality molded aluminum blades
  • IP56 protected terminal box
  • Reliable performance in industrial environments
  • Suitable for horizontal and vertical installation
  • Designed according to international standards

Specifications:

Specification Details
Brand Efaflu
Model VTTF
Product Type Axial Flow Fan
Casing Material Carbon Steel
Blade Material Molded Aluminum
Motor Frame Aluminum
Fixing Accessories Stainless Steel AISI 316
Protection Class IP56
Available Diameter 450 mm
Max Airflow Up to 5,250 m³/h
Ambient Temperature -20°C to 40°C
Installation Horizontal or Vertical

Applications:

  • Power transformer cooling
  • Heat exchangers
  • Industrial ventilation systems
  • Electrical infrastructure cooling
Product form

Efaflu Axial Flow Fan | VTTF

    SKU: VTTF

      Description

      The Efaflu VTTF Axial Flow Fan is a robust and high-efficiency ventilation solution designed with a long casing structure to enhance airflow performance and cooling efficiency. It is specifically engineered for demanding applications such as power transformers and heat exchangers, where consistent and reliable airflow is essential.

      Built using a carbon steel casing and molded aluminum blades, the VTTF ensures durability and long operational life even in harsh industrial environments. The aluminum frame motor combined with an IP56 terminal box provides superior protection against dust, moisture, and environmental conditions.

      Developed and tested in accordance with EN IEC 60076-22-6 standards, this fan guarantees reliable performance and compliance with international cooling system requirements.


      Features:

      • Long casing design for enhanced airflow efficiency
      • Low noise operation
      • Durable carbon steel construction
      • High-quality molded aluminum blades
      • IP56 protected terminal box
      • Reliable performance in industrial environments
      • Suitable for horizontal and vertical installation
      • Designed according to international standards

      Specifications:

      Specification Details
      Brand Efaflu
      Model VTTF
      Product Type Axial Flow Fan
      Casing Material Carbon Steel
      Blade Material Molded Aluminum
      Motor Frame Aluminum
      Fixing Accessories Stainless Steel AISI 316
      Protection Class IP56
      Available Diameter 450 mm
      Max Airflow Up to 5,250 m³/h
      Ambient Temperature -20°C to 40°C
      Installation Horizontal or Vertical

      Applications:

      • Power transformer cooling
      • Heat exchangers
      • Industrial ventilation systems
      • Electrical infrastructure cooling
