Description

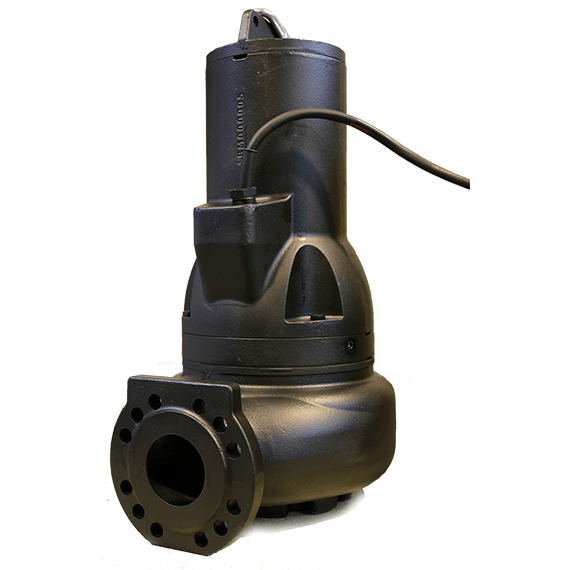

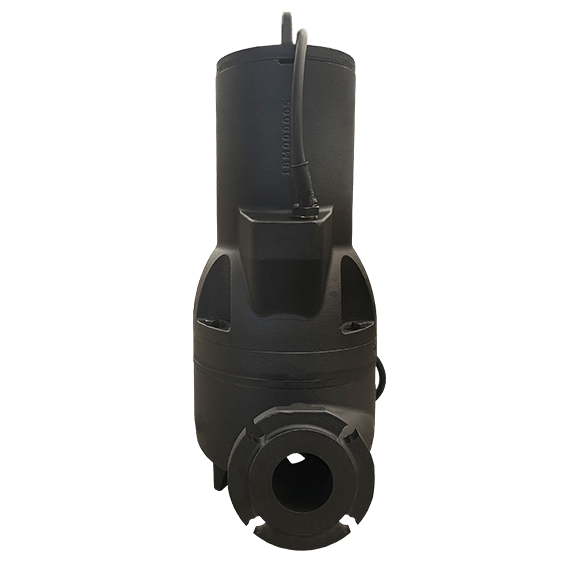

The Efaflu VTQ Submersible Pump is a high-performance solution engineered for efficient drainage of domestic, industrial, and commercial wastewater. Featuring a vortex impeller design, this pump allows for the smooth handling of liquids with large solid content without clogging.

Constructed from durable cast iron materials, the VTQ pump is built for continuous operation in demanding environments. Its robust structure and high solid passage capacity make it ideal for wastewater systems where reliability and efficiency are critical.

The pump is designed for easy integration into various installations, with optional quick coupling foot for simplified maintenance and installation.

Features:

  • Vortex impeller for clog-free operation
  • Heavy-duty cast iron construction
  • High solid handling capacity up to 100 mm
  • Designed for continuous operation
  • Quiet and reliable performance
  • Optional quick coupling system

Specifications:

Specification Details
Brand Efaflu
Model VTQ
Product Type Submersible Vortex Pump
Material Cast Iron EN-GJL-250
Impeller EN-GJL-250
Shaft AISI 420
Mechanical Seal Upper SiC / SiC / NBR
Mechanical Seal Lower SiC / SiC / NBR
O Rings NBR
Max Solid Passage Up to 100 mm
Max Immersion Depth 20 m
Max Starts per Hour 15
Max Liquid Temperature 40°C

Applications:

  • Pumping domestic and industrial wastewater
  • Wastewater treatment plants (WWTPs)
  • Commercial and public drainage systems

Read more
