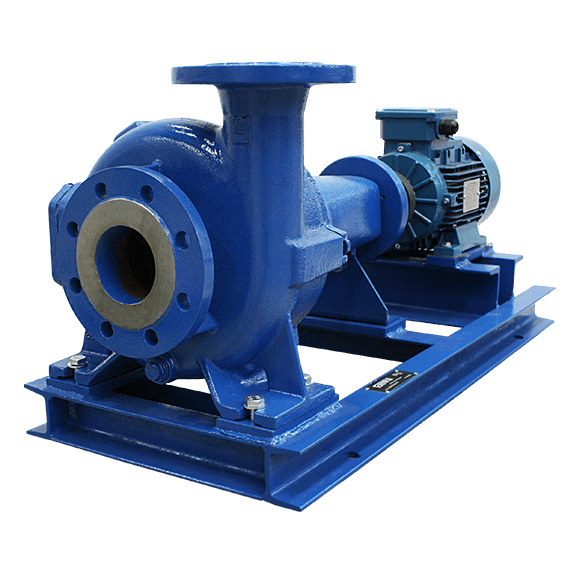

The Efaflu VE Horizontal Centrifugal Pump is a robust and efficient solution designed for wastewater handling and industrial fluid transfer. Equipped with a vortex impeller, this pump ensures smooth passage of solids and minimizes clogging, making it ideal for demanding environments.
Manufactured from durable cast iron and mounted on a welded carbon steel base plate, the VE pump is engineered for continuous operation and long service life. It is directly coupled to an electric motor via an elastic coupling, ensuring stable and efficient performance.
This pump is suitable for a wide range of applications, including wastewater systems, decantation tanks, and industrial processes involving chemically compatible fluids. Its high temperature tolerance and solid handling capability make it a reliable choice for heavy-duty operations.
Features:
- Horizontal centrifugal pump design
- Vortex impeller for solids handling
- Durable cast iron construction
- Elastic coupling with electric motor
- Mounted on welded steel base plate
- Designed for continuous operation
- High temperature resistance up to 90°C
Specifications:
| Specification |
Details |
| Brand |
Efaflu |
| Model |
VE |
| Product Type |
Horizontal Centrifugal Pump |
| Material |
Cast Iron EN-GJL-250 |
| Impeller |
EN-GJL-250 |
| Shaft |
AISI 420 |
| Mechanical Seal |
SiC / SiC / NBR or Gland Seal |
| O Rings |
NBR |
| Max Solid Passage |
80 mm |
| Max Liquid Temperature |
Up to 90°C |
| Coupling Type |
Elastic Coupling |
| Base Plate |
Welded Carbon Steel |
Applications:
- Wastewater pumping systems
- Decantation tanks
- Industrial fluid transfer
- Chemical-compatible liquid handling
- Metallurgy and heavy industries
