Description

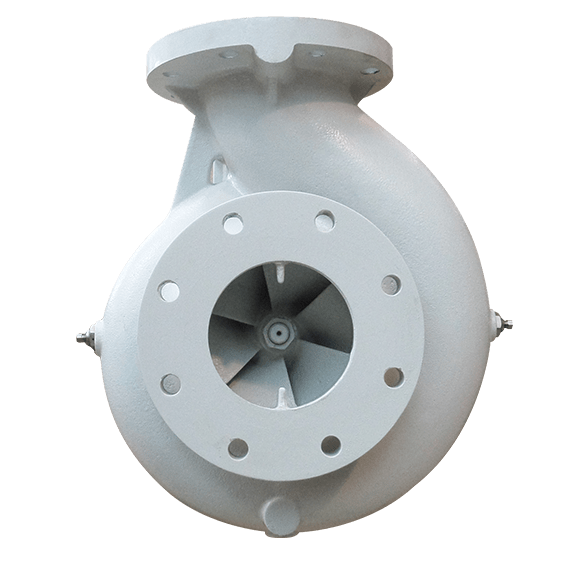

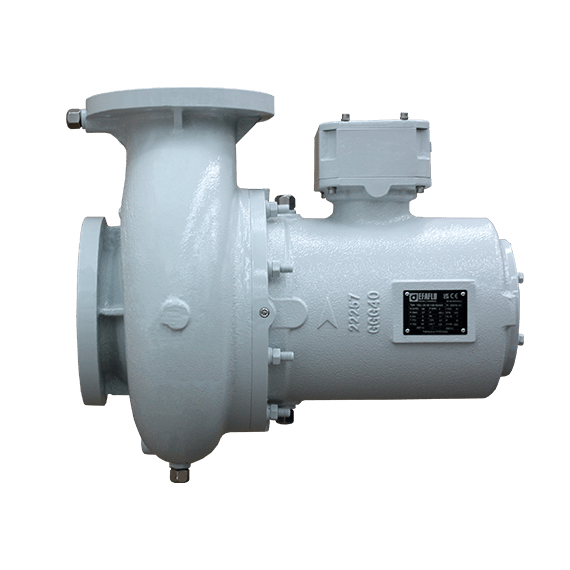

The Efaflu TGCL End Suction Centrifugal Pump is a high-efficiency radial centrifugal pump engineered for reliable fluid circulation in industrial and energy applications, especially transformer cooling systems. Its end suction design ensures optimal hydraulic performance with stable flow and pressure characteristics.

Manufactured using high-quality cast iron materials such as EN-GJL-250 or EN-GJS-400, the TGCL pump guarantees durability and long operational life. It features IP67 protection and is developed according to IEC 60076-22-5 standards, ensuring safety and performance in demanding environments.

The pump supports both horizontal and vertical installation, offering flexibility in system design. With various flange and motor configurations available, the TGCL pump is a versatile solution for multiple industrial requirements.

Applications:

  • Power transformers with radiator cooling systems
  • Industrial circulation systems
  • Cooling and heat exchange systems
  • Energy and utility applications

Features:

  • Radial centrifugal end suction pump
  • High efficiency and stable performance
  • Durable cast iron construction
  • IP67 protection rating
  • Compliant with IEC 60076-22-5 standards
  • Flexible installation options
  • Suitable for continuous operation

Specifications:

Category Details
Pump Type End Suction Centrifugal Pump
Sizes DN65 to DN150
Pump Body Material EN-GJL-250 / EN-GJS-400 Cast Iron
Impeller Material Cast Iron
Protection Class IP67
Flange Type DIN PN10
Configuration Raised face or flat face
Motor Options 4 or 6 pole motors
Max Flow Rate Up to 260 m³/h
Max Head Up to 15 m
Fluid Temperature -25°C to +115°C (LT version down to -45°C)
Installation Horizontal or Vertical

Low Temperature Version (LT):

  • Operates in ambient temperatures down to -60°C
  • Suitable for fluid temperatures down to -45°C
  • Maximum viscosity up to 7200 mm²/s (Cold Start)

Read more

Product form

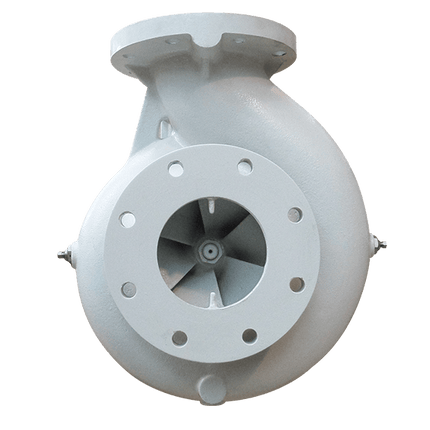

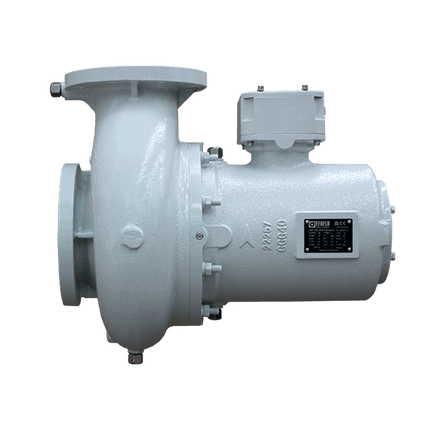

Efaflu End Suction Centrifugal Pump | TGCL

Efaflu

    SKU: TGCL

      Description

      The Efaflu TGCL End Suction Centrifugal Pump is a high-efficiency radial centrifugal pump engineered for reliable fluid circulation in industrial and energy applications, especially transformer cooling systems. Its end suction design ensures optimal hydraulic performance with stable flow and pressure characteristics.

      Manufactured using high-quality cast iron materials such as EN-GJL-250 or EN-GJS-400, the TGCL pump guarantees durability and long operational life. It features IP67 protection and is developed according to IEC 60076-22-5 standards, ensuring safety and performance in demanding environments.

      The pump supports both horizontal and vertical installation, offering flexibility in system design. With various flange and motor configurations available, the TGCL pump is a versatile solution for multiple industrial requirements.

      Applications:

      • Power transformers with radiator cooling systems
      • Industrial circulation systems
      • Cooling and heat exchange systems
      • Energy and utility applications

      Features:

      • Radial centrifugal end suction pump
      • High efficiency and stable performance
      • Durable cast iron construction
      • IP67 protection rating
      • Compliant with IEC 60076-22-5 standards
      • Flexible installation options
      • Suitable for continuous operation

      Specifications:

      Category Details
      Pump Type End Suction Centrifugal Pump
      Sizes DN65 to DN150
      Pump Body Material EN-GJL-250 / EN-GJS-400 Cast Iron
      Impeller Material Cast Iron
      Protection Class IP67
      Flange Type DIN PN10
      Configuration Raised face or flat face
      Motor Options 4 or 6 pole motors
      Max Flow Rate Up to 260 m³/h
      Max Head Up to 15 m
      Fluid Temperature -25°C to +115°C (LT version down to -45°C)
      Installation Horizontal or Vertical

      Low Temperature Version (LT):

      • Operates in ambient temperatures down to -60°C
      • Suitable for fluid temperatures down to -45°C
      • Maximum viscosity up to 7200 mm²/s (Cold Start)
