Description

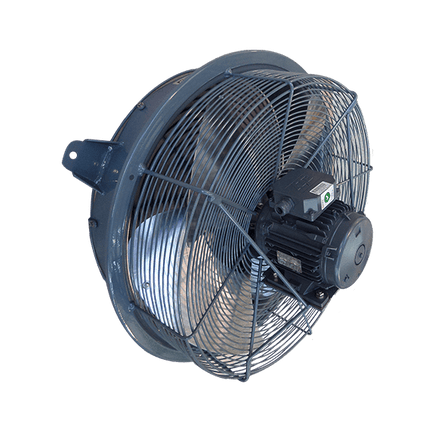

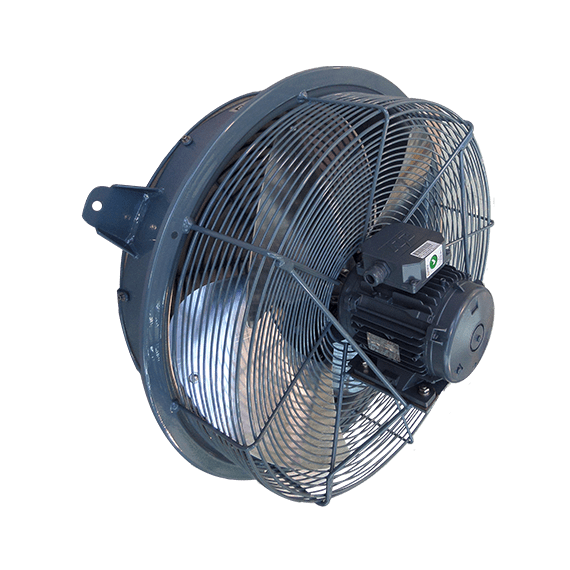

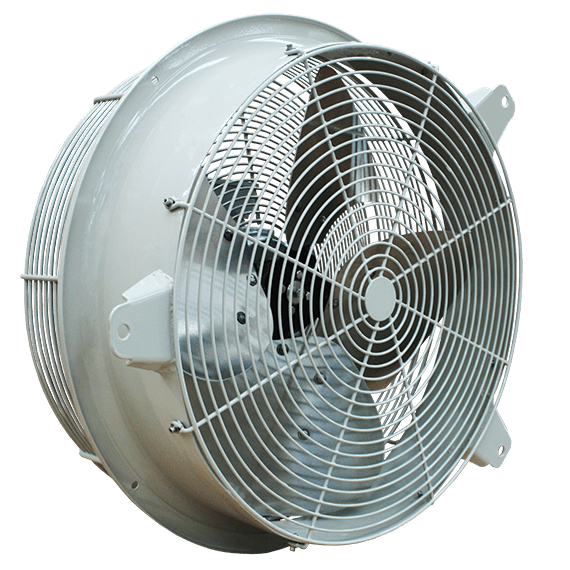

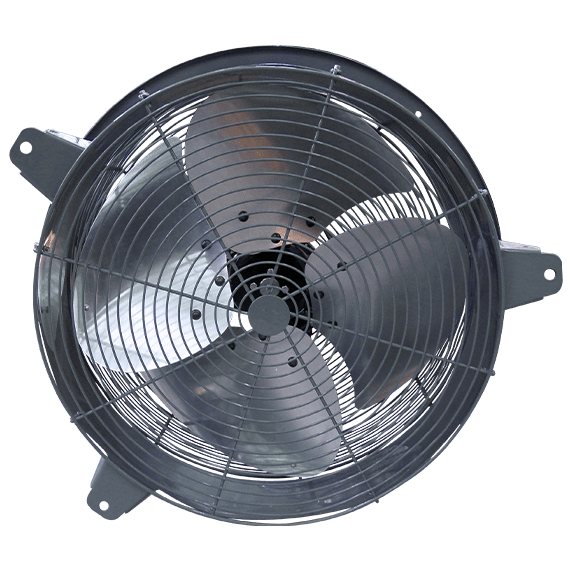

The Efaflu TFBR Axial Flow Fan is a compact and low-noise ventilation solution engineered specifically for cooling applications in power transformers and heat exchangers. Its reduced casing design allows for efficient installation in space-constrained environments while maintaining excellent airflow performance.

Constructed with a durable carbon steel casing and high-quality molded aluminum blades, the TFBR fan ensures reliable operation and long service life. The fan is equipped with an aluminum frame motor and IP56 terminal box, providing enhanced protection against dust and moisture.

Developed and tested in compliance with EN IEC 60076-22-6 standards, the TFBR model guarantees efficiency and dependable cooling performance in demanding industrial conditions.

Features:

Low-noise operation for sensitive environments
Compact reduced casing design
High-efficiency airflow up to 7,500 m³/h
Durable carbon steel construction
Molded aluminum fan blades
IP56 protected terminal box
Suitable for horizontal and vertical installation
Designed according to international standards

Specifications:

Specification	Details
Brand	Efaflu
Model	TFBR
Product Type	Axial Flow Fan
Casing Material	Carbon Steel
Blade Material	Molded Aluminum
Motor Frame	Aluminum
Fixing Accessories	Stainless Steel AISI 316
Protection Class	IP56
Available Diameters	500 mm / 550 mm
Max Airflow	Up to 7,500 m³/h
Ambient Temperature	-20°C to 40°C
Installation	Horizontal or Vertical

Applications:

Cooling of power transformers
Heat exchangers
Industrial cooling systems
Electrical infrastructure ventilation
