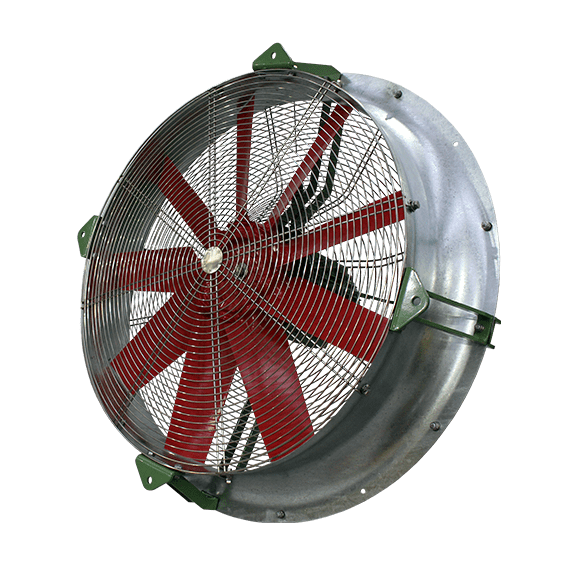

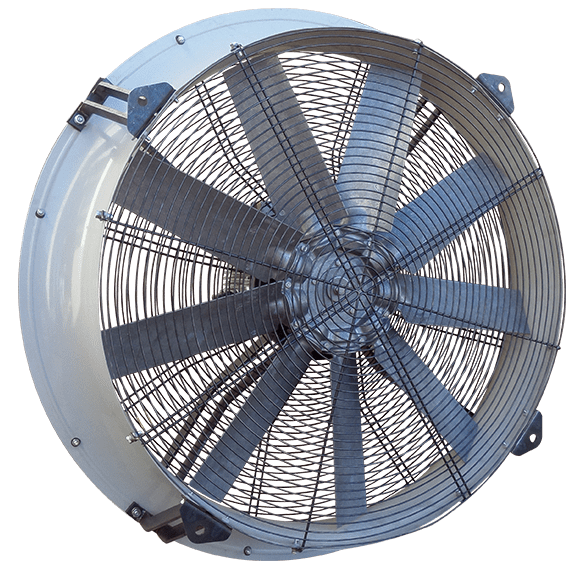

The Efaflu NTF Axial Flow Fan is a powerful and efficient ventilation solution designed for industrial cooling and airflow applications. Built with a robust carbon steel casing and high-performance propeller blades, this fan ensures optimal air movement and durability in demanding environments.
Equipped with an asynchronous electric motor featuring IP55 protection, the NTF fan delivers reliable performance while maintaining safety standards. The fan includes protective grilles on both suction and discharge sides, ensuring safe operation in industrial installations.
Designed and tested according to EN IEC 60076-22-6 standards, the NTF fan meets strict cooling requirements, making it suitable for use with power transformers, heat exchangers, and other industrial systems.
Features:
- High-efficiency axial airflow design
- Durable carbon steel construction
- Airflow capacity up to 38,000 m³/h
- IP55 protected electric motor
- Protective safety grilles
- Suitable for horizontal and vertical installation
- Compliant with international standards
Specifications:
| Specification |
Details |
| Brand |
Efaflu |
| Model |
NTF |
| Product Type |
Axial Flow Fan |
| Casing Material |
Carbon Steel |
| Blade Material |
Cast Aluminum or Reinforced Polyamide |
| Motor Type |
Asynchronous Electric Motor |
| Protection Class |
IP55 |
| Available Diameters |
450 mm / 800 mm / 1000 mm |
| Max Airflow |
Up to 38,000 m³/h |
| Ambient Temperature |
-30°C to 50°C |
| Installation |
Horizontal or Vertical |
| Terminal Box |
IP56 |
Applications:
- Cooling systems for power transformers
- Heat exchangers
- Industrial ventilation systems
- Air circulation in heavy-duty environments
