Description

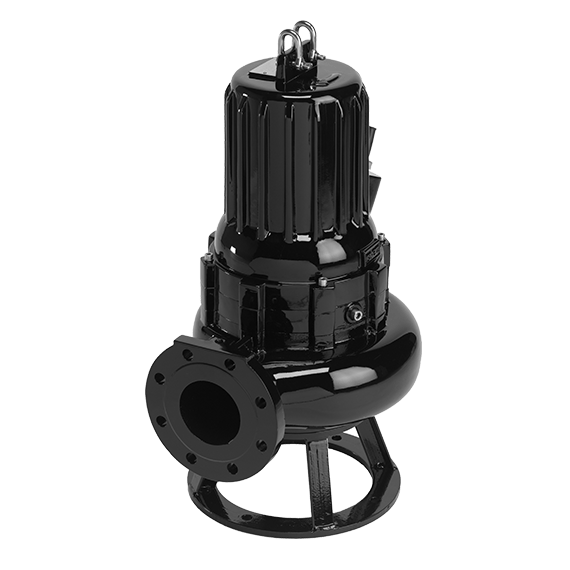

The Efaflu MCQ Submersible Pump is a robust and efficient solution designed for draining rainwater and slightly charged wastewater in both domestic and industrial environments.

Constructed from high-quality cast iron, this pump ensures durability and long-term performance under continuous operation. It features a closed single-channel impeller, optimized for efficient fluid movement and improved resistance to clogging when handling liquids with suspended solids.

The MCQ series is ideal for wastewater treatment plants, drainage systems, and lifting stations. It also supports optional configurations such as a quick coupling foot, making installation and maintenance easier and more efficient.

Features:

  • Submersible pump for drainage applications
  • Heavy-duty cast iron construction
  • Closed single-channel impeller
  • Continuous operation capability
  • Handles solids up to 108 mm
  • Reliable and efficient performance
  • Optional quick coupling system

Specifications:

Specification Details
Brand Efaflu
Model MCQ
Product Type Submersible Drainage Pump
Material Cast Iron
Impeller Type Closed Single-Channel
Maximum Solid Passage 108 mm
Maximum Liquid Temperature 40°C
Maximum Immersion Depth 20 m
Max Starts per Hour 15
Shaft Material AISI 420
Seal Type Double Mechanical Seal
O-rings NBR

Applications:

  • Wastewater treatment plants
  • Domestic and industrial sewage pumping
  • Drainage and lifting systems
  • Rainwater drainage

Read more

Product form

Efaflu Submersible Drainage Pump Cast Iron | MCQ

Efaflu

    SKU: MCQ

      Description

      The Efaflu MCQ Submersible Pump is a robust and efficient solution designed for draining rainwater and slightly charged wastewater in both domestic and industrial environments.

      Constructed from high-quality cast iron, this pump ensures durability and long-term performance under continuous operation. It features a closed single-channel impeller, optimized for efficient fluid movement and improved resistance to clogging when handling liquids with suspended solids.

      The MCQ series is ideal for wastewater treatment plants, drainage systems, and lifting stations. It also supports optional configurations such as a quick coupling foot, making installation and maintenance easier and more efficient.

      Features:

      • Submersible pump for drainage applications
      • Heavy-duty cast iron construction
      • Closed single-channel impeller
      • Continuous operation capability
      • Handles solids up to 108 mm
      • Reliable and efficient performance
      • Optional quick coupling system

      Specifications:

      Specification Details
      Brand Efaflu
      Model MCQ
      Product Type Submersible Drainage Pump
      Material Cast Iron
      Impeller Type Closed Single-Channel
      Maximum Solid Passage 108 mm
      Maximum Liquid Temperature 40°C
      Maximum Immersion Depth 20 m
      Max Starts per Hour 15
      Shaft Material AISI 420
      Seal Type Double Mechanical Seal
      O-rings NBR

      Applications:

      • Wastewater treatment plants
      • Domestic and industrial sewage pumping
      • Drainage and lifting systems
      • Rainwater drainage
