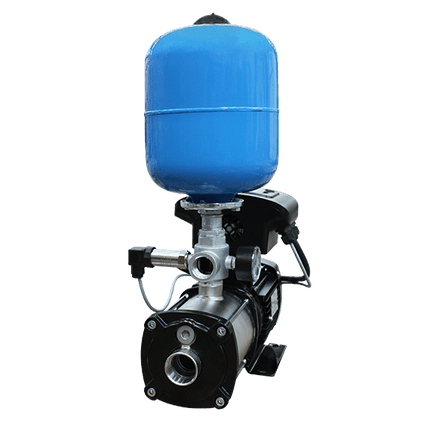

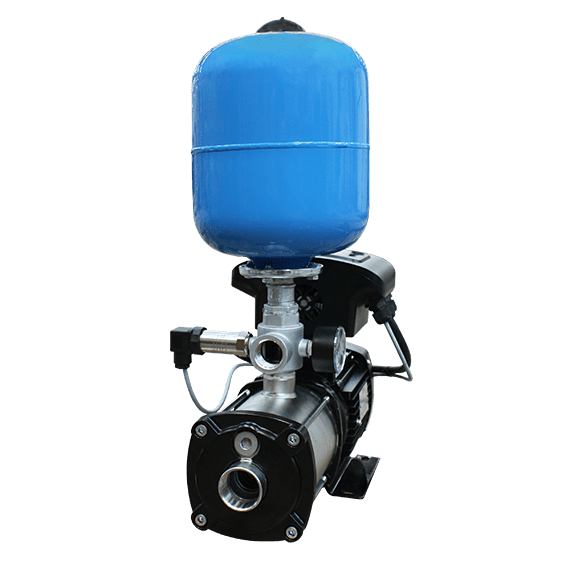

The Efaflu GVV MPX is a high-performance variable speed pressure boosting system engineered for efficient water supply across residential, commercial, and light industrial applications. Built with a horizontal multistage pump from the MPX series, this system ensures stable pressure and optimal flow performance.
Designed with an integrated variable speed drive, the GVV MPX automatically adjusts pump operation according to demand, reducing energy consumption while maintaining consistent pressure levels. Its compact structure allows for easy installation in limited spaces, making it a practical solution for modern water systems.
The system includes essential components such as a pressure transducer, check valve, manometer, and a hydropneumatic reservoir, ensuring smooth operation and system protection. Constructed using high-quality stainless steel materials, it offers excellent durability, corrosion resistance, and long service life.
Ideal for boosting water pressure, irrigation systems, and HVAC-related applications, the GVV MPX delivers reliable performance with minimal maintenance requirements.
Features:
- Compact pressure boosting system
- Horizontal multistage pump design
- Integrated variable speed control
- Stable and consistent pressure output
- Energy-efficient operation
- Easy and quick installation
- User-friendly system
- Low maintenance requirements
Specifications:
| Category |
Details |
| System Type |
Variable Speed Pressure Boosting System |
| Pump Type |
Horizontal Multistage (MPX Series) |
| Motor Type |
Single-phase and Three-phase Options |
| Drive Type |
Integrated Variable Speed Drive |
| Components |
Pressure Transducer, Check Valve, Manometer, Hydropneumatic Tank (3L) |
| Pump Body Material |
AISI 304 Stainless Steel |
| Impeller Material |
AISI 304 |
| Diffuser Material |
AISI 304 |
| Shaft (Veio) Material |
AISI 304 |
| Mechanical Seal |
Ceramic/SiC/EPDM |
| O-rings |
NBR |
| Max Fluid Temperature |
Up to 120°C |
| Max Operating Pressure |
Up to 8 bar |
| Max Ambient Temperature |
Up to 50°C |
| Applications |
Domestic, Irrigation, Commercial, Industrial Heating/Cooling |
