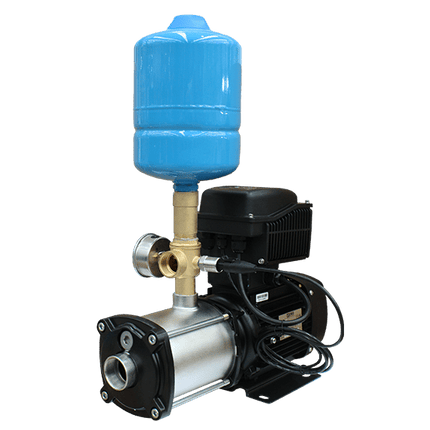

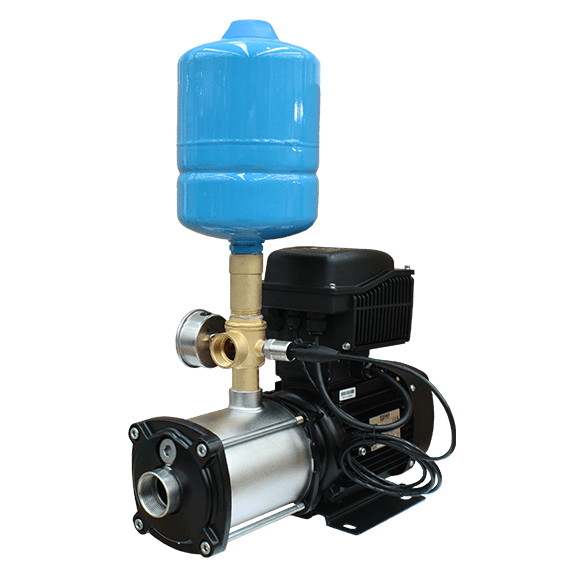

The Efaflu GVV MPS is a compact and efficient variable speed pressure boosting system designed for domestic and commercial water supply applications. Built with a monobloc self-priming multistage pump, it ensures reliable performance even in demanding environments.
This system integrates advanced variable speed technology, allowing it to automatically adjust performance based on water demand, ensuring consistent pressure while optimizing energy consumption. Its compact design makes it ideal for installations with limited space, while its user-friendly configuration ensures quick and easy setup.
The GVV MPS is equipped with essential components such as a pressure transducer, check valve, manometer, and a hydropneumatic reservoir, providing a complete and ready-to-use solution. Designed for durability, it features high-quality stainless steel components that ensure long service life and resistance to corrosion.
Perfect for residential, irrigation, and light industrial applications, the GVV MPS offers a dependable and low-maintenance solution for efficient water pressurization.
Features:
- Compact pressure boosting system
- Self-priming multistage pump
- Integrated variable speed drive
- Easy and quick installation
- User-friendly operation
- Reliable and efficient performance
- Reduced maintenance requirements
- Suitable for domestic and commercial use
Specifications:
| Category |
Details |
| System Type |
Variable Speed Pressure Boosting System |
| Pump Type |
Horizontal Multistage Self-Priming |
| Motor Type |
Single-phase and Three-phase Options |
| Drive Type |
Integrated Variable Speed Drive |
| Components |
Pressure Transducer, Check Valve, Manometer, Hydropneumatic Tank (3L) |
| Pump Body Material |
AISI 304 Stainless Steel |
| Impeller Material |
AISI 304 |
| Diffuser Material |
AISI 304 |
| Mechanical Seal |
Ceramic/SiC/EPDM |
| O-rings |
EPDM |
| Max Fluid Temperature |
Up to 70°C |
| Max Operating Pressure |
Up to 10 bar |
| Max Ambient Temperature |
Up to 50°C |
| Applications |
Domestic, Irrigation, Commercial, Industrial Heating/Cooling |
