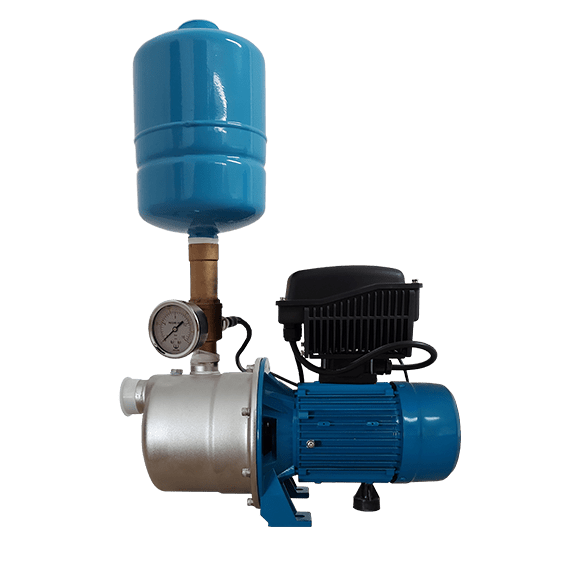

The Efaflu GVV BAF is a compact and efficient variable speed pressure boosting system designed for domestic and commercial water supply applications. Built with a self-priming single-stage pump from the BAF series, this system ensures quick startup and reliable performance even in challenging conditions.
Equipped with an integrated variable speed drive, the GVV BAF automatically adjusts operation based on water demand, maintaining stable pressure while optimizing energy consumption. Its compact footprint makes it ideal for installations where space is limited, without compromising on performance.
The system includes essential components such as a pressure transducer, check valve, manometer, and a hydropneumatic reservoir, ensuring smooth operation and protection against pressure fluctuations. Constructed using high-quality stainless steel materials, the GVV BAF guarantees durability, corrosion resistance, and long service life.
Perfect for residential water boosting, irrigation systems, and pool applications, this system delivers dependable performance with minimal maintenance.
Features:
- Compact pressure boosting system
- Self-priming single-stage pump
- Integrated variable speed control
- Stable and constant pressure output
- Energy-efficient operation
- Easy and quick installation
- User-friendly design
- Reduced maintenance requirements
Specifications:
| Category |
Details |
| System Type |
Variable Speed Pressure Boosting System |
| Pump Type |
Horizontal Self-Priming Single-Stage (BAF Series) |
| Motor Type |
Single-phase and Three-phase Options |
| Drive Type |
Integrated Variable Speed Drive |
| Components |
Pressure Transducer, Check Valve, Manometer, Hydropneumatic Tank (3L) |
| Pump Body Material |
AISI 304 Stainless Steel |
| Impeller Material |
AISI 304 |
| Shaft (Veio) Material |
AISI 304 |
| Mechanical Seal |
Carbon/Ceramic/EPDM |
| O-rings |
NBR |
| Max Fluid Temperature |
Up to 70°C |
| Max Operating Pressure |
Up to 6 bar |
| Max Ambient Temperature |
Up to 50°C |
| Applications |
Domestic, Irrigation, Commercial, Pool Filling and Drainage |
