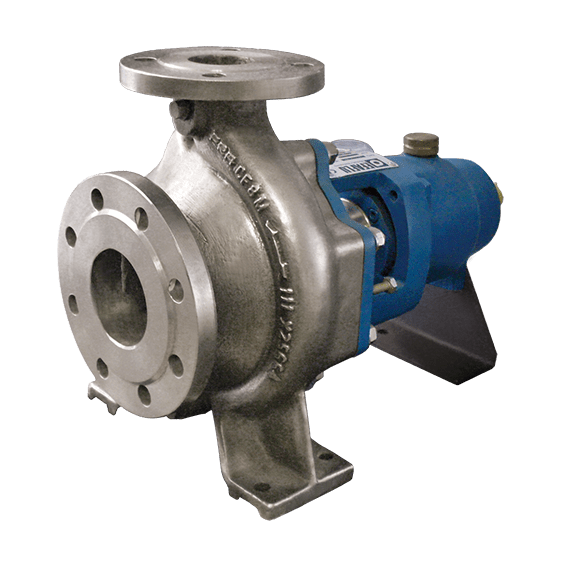

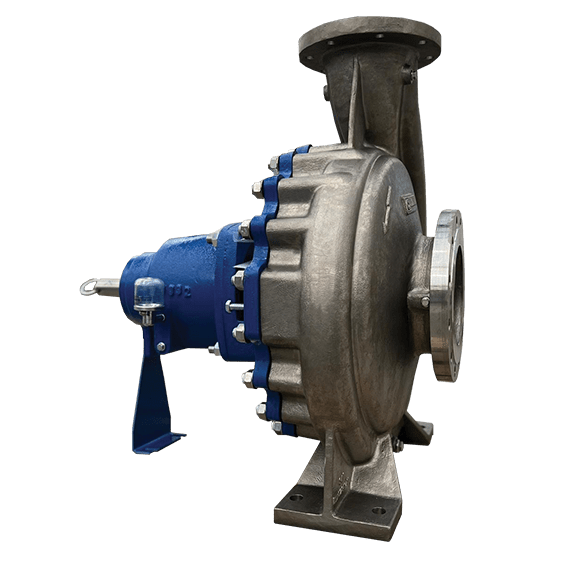

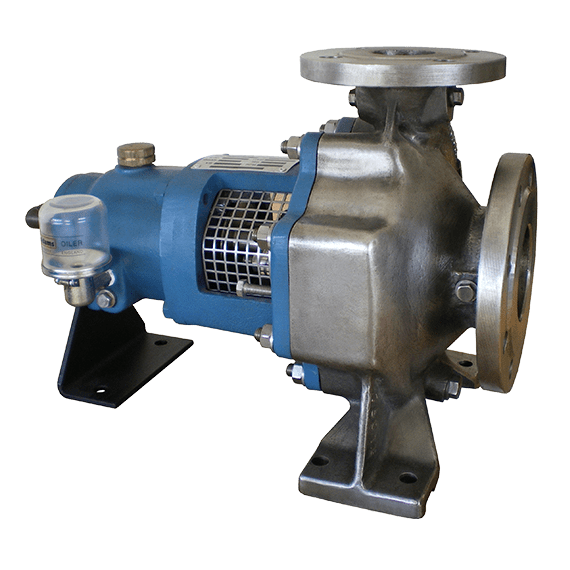

The Efaflu CJG Standard Centrifugal Pump is a high-performance horizontal pump engineered for demanding industrial fluid handling applications. Built in accordance with ISO 2858 and ISO 5199 standards, this pump guarantees reliability, efficiency, and long service life.
Designed with flexibility in mind, the CJG pump is available with EN 1092-2 PN16 flanges and optional ANSI flange configurations, making it adaptable to various system requirements. It features a closed or semi-open impeller design to handle a wide range of fluids, including organic and inorganic liquids.
The oil-lubricated bearing system ensures smooth operation and reduced wear, while the robust construction materials provide excellent resistance against corrosion and harsh industrial environments. Additionally, the CJG series is available in ATEX-certified versions, making it suitable for hazardous and explosive environments.
Applications:
- Paper and pulp industries
- Petrochemical and chemical industries
- Food and beverage industries
- Steel industries
- Pumping and handling of organic and inorganic fluids
Features:
- Horizontal centrifugal pump design
- Manufactured according to ISO 2858 and ISO 5199 standards
- Available with EN and ANSI flange options
- Closed or semi-open impeller configurations
- Oil-lubricated bearing system for durability
- Suitable for hazardous environments (ATEX option available)
- Designed for industrial fluid transfer applications
Specifications:
| Category |
Details |
| Pump Type |
Horizontal Centrifugal Pump |
| Standards |
ISO 2858 / ISO 5199 |
| Flange Standard |
EN 1092-2 PN16 / ANSI (optional) |
| Pump Body Material |
EN-GJL-250 / GS-C25 / EN-GJL-400-15 / AISI 316 / AISI 304 / G-CuSn10 |
| Impeller Material |
EN-GJL-250 / GS-C25 / EN-GJL-400-15 / AISI 316 / AISI 304 / G-CuSn10 |
| Shaft Material |
AISI 420 / AISI 316 / CK45 |
| Sealing |
Mechanical seal or gasket |
| Fluid Temperature |
-10°C to 150°C |
| Max Pressure |
16 bar |
| Max Ambient Temp |
40°C |
| ATEX Option |
Available |
