Description

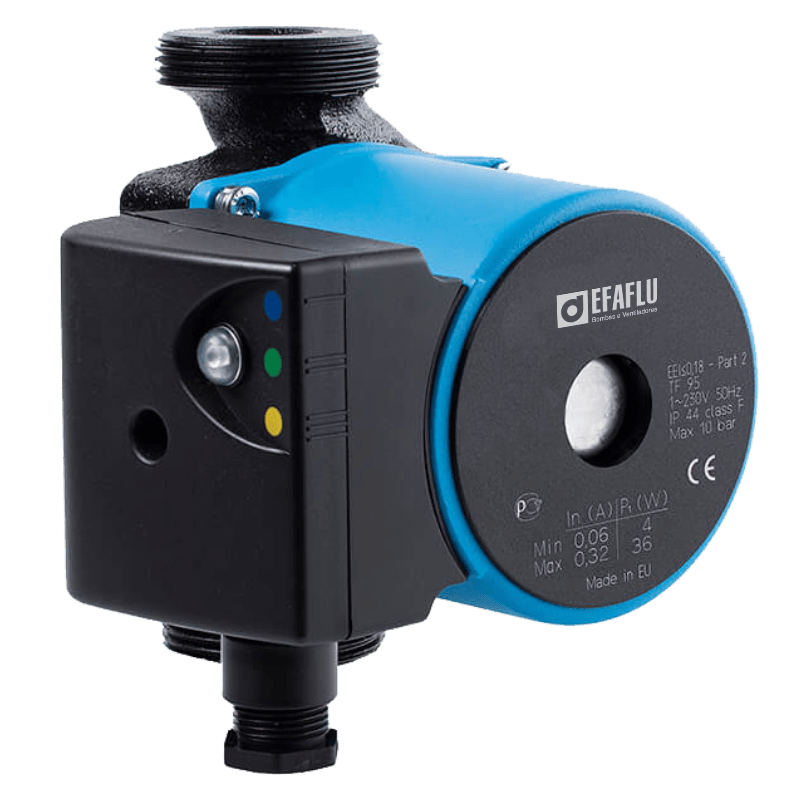

The Efaflu CDT Plus Circulating Pump is a high-performance solution designed for closed-loop hot and cold water systems. Built with a wet rotor motor and permanent magnet technology, it ensures efficient energy consumption and reliable continuous operation.

This model features proportional pressure control and constant speed functionality, allowing it to adapt automatically to system demands. Users can also select different speed levels for optimized performance.

Available in single body (CDT) and double body (CDDT) configurations, this pump provides flexibility for various installation requirements. Its robust construction and compact design make it ideal for residential, commercial, and HVAC applications.

Features:

Circulating pump for closed water systems
Wet rotor motor with permanent magnets
Proportional pressure control
Constant speed operation
Adjustable speed levels
Available in single and double body versions
Automatic ventilation system
Low noise operation
Multiple mounting positions
Electric motor protection

Specifications:

Specification	Details
Pump Type	Circulating pump
Application	Closed hot and cold water systems
Pump Casing	EN-GLS-250
Impeller	Noryl 1630V
Shaft	Ceramics
Bearings	Ceramic
Max Operating Pressure	10 bar
Max Liquid Temperature	110°C
Max Ambient Temperature	40°C

Applications:

Closed hot and cold water circuits
Air conditioning systems
HVAC systems
Residential and commercial buildings
