Description

Shop Drager X-zone 5800 868MHz ATEX Area Gas Detector 24Ah In Iraq Best Prices

Professional ATEX-approved multi-gas area detector with 24Ah battery, 868MHz wireless connectivity, 360° LED/audible alarms, pump/diffusion modes, and up to 120 hours continuous operation for explosive zone monitoring.

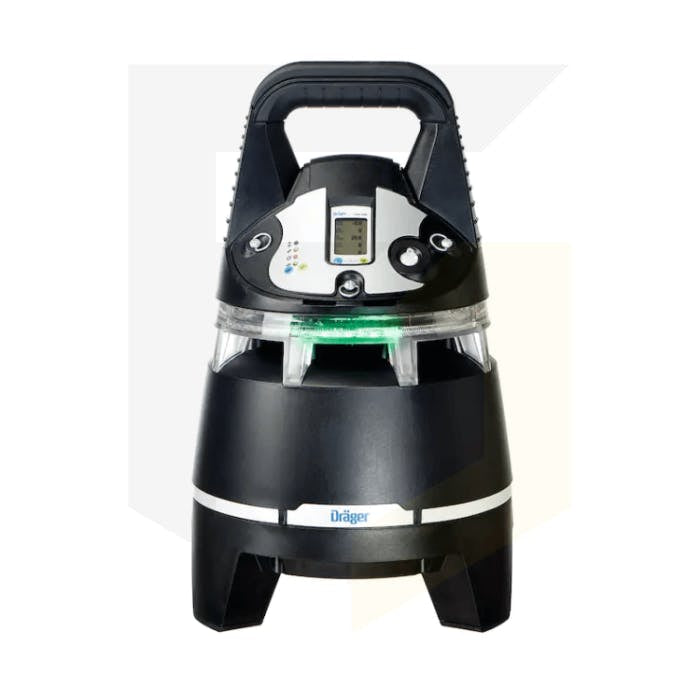

The Drager X-zone 5800 is a professional-grade multi-gas area detector designed for continuous monitoring in ATEX-rated explosive zones. This advanced monitoring system measures up to six different gases simultaneously when used in conjunction with Dräger X-am 5000, 5100, or 5600 gas detectors. The unit features an internal pump and continuous power supply capability, making it ideal for zone 0 explosive area applications where traditional portable gas detection may be limited. Equipped with a robust 24Ah battery providing up to 120 hours of continuous operation, the X-zone 5800 delivers exceptional reliability for extended monitoring periods. The distinctive bright green LED ring provides clear visual indication when no dangerous or combustible gases are present, automatically changing to red when gas hazards are detected. Combined with a powerful audible evacuation alarm exceeding 108dB at 1 meter, the unit ensures immediate awareness of dangerous conditions. The device supports both pump mode (drawing gas from up to 30 meters away) and diffusion mode, offering operational flexibility for various monitoring scenarios. The X-zone 5800 features advanced wireless connectivity with license-free ISM frequencies (868MHz for EU/Norway/Switzerland), enabling up to 25 units to be automatically networked for comprehensive area coverage. When a gas alert is detected, the alarm signal automatically transmits to all connected units, with the master alert unit displaying red flashing while connected units show red/green flashing patterns. This intelligent alarm amplification system clearly identifies the precise location of danger and the highest gas concentration in the monitored area. With IP67 ingress protection, worldwide ATEX and IECEx approvals, and flexible charging options including wireless inductive charging, the Drager X-zone 5800 represents the pinnacle of fixed area gas detection technology.

Key Features

ATEX Approval for Ex-Zone 0 with IECEx certification for explosive atmospheres
24Ah battery provides up to 120 hours of continuous operation
Trickle power supply for continuous use in Ex areas
360-degree gas entry with bright green LED ring visual alarm
Wireless networking capability connecting up to 25 units with 868MHz ISM frequency
Dual operation modes: pump mode (30m range in zone 0) and diffusion mode
Powerful audible alarm exceeding 108dB at 1 meter distance
Measures up to six different gases simultaneously
IP67 ingress protection rating
Flexible charging options including wireless inductive charger

Technical Specifications

Specification	Value
Product Code	8329030
Dimensions	490 x 300 x 300 mm (19.3 x 11.8 x 11.8 inches)
Weight	10 kg (22 lbs) with 24Ah battery
Battery Capacity	24Ah lithium-ion battery
Operating Time	Approximately 120 hours continuous operation
Charging Time	Approximately 14 hours
Temperature Range	-20°C to +50°C (-4°F to +122°F)
Pressure Range	700 to 1,300 hPa
Humidity Range	10 to 95% relative humidity
Ingress Protection	IP67 (dust and water resistant)
Visual Alarm	360° green LED ring with automatic color change to red on gas detection
Audible Alarm	360° coverage, >108 dB at 1 meter (3 ft), 120 dB at 30 cm (1 ft)
Life Signal	Green status display with 360° illuminated LED ring
Pump Operation	Maximum hose length 45 meters (150 ft), 30 meters (100 ft) for zone 0
Gas Measurement Capability	Up to six different gases simultaneously
Wireless Connectivity	Up to 25 units networked with automatic alarm signal transmission
Radio Transmission Range	Up to 100 meters (328 feet) license-free ISM frequencies
RF Frequencies	868 MHz (EU, Norway, Switzerland), 915 MHz (USA, Canada, Singapore, Australia), 433 MHz (Russia, Malaysia)
Alarm Output	Potential-free alarm contact for intrinsically safe circuits (6-pole), <20V to 0.25A (0.15A constant current)
ATEX Approval	I M1 Ex ia I Ma, II 1G Ex ia IIC T4 Ga
IECEx Approval	Ex ia I Ma, Ex ia IIC T4 Ga
Power Supply Options	External 100-240V charger (worldwide) or inductive wireless charger
Compatible Detectors	Dräger X-am 5000, 5100, or 5600 gas detectors
Operation Modes	Pump mode and diffusion mode with tool-free switching
Price	£4,810.82 inc VAT (£4,009.02 exc VAT)

Order Drager X-zone 5800 868MHz ATEX Area Gas Detector 24Ah at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
