Shop Drager X-dock 5300 PAC Series Bump Test Calibration Station In Iraq Best Prices
Professional bump test and calibration station for Pac 3500/5500/7000 detectors with automatic gas recognition, touchscreen control, and rapid 8-15 second test times

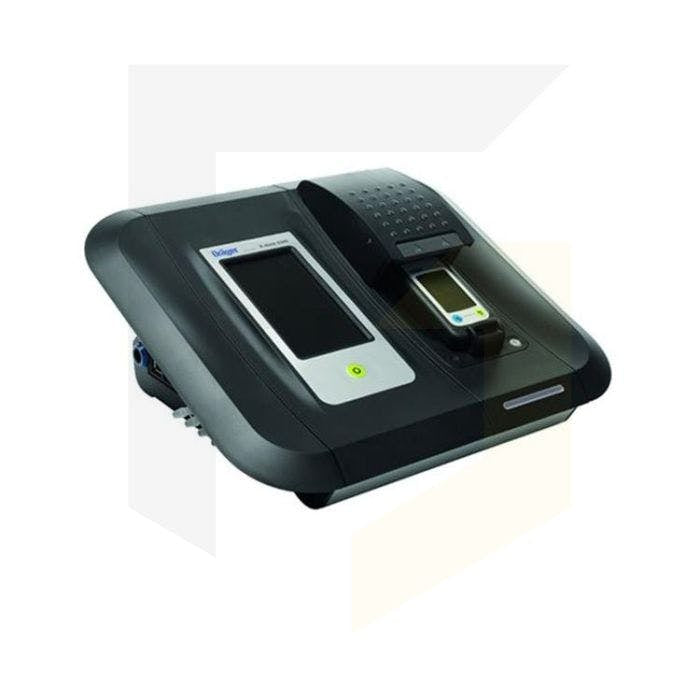

The Drager X-dock 5300 is a ready-to-use bump test and calibration station designed specifically for Pac 3500, 5500, and 7000 gas detectors. This professional-grade system includes the X-Dock Master station with single Pac module capability, featuring automatic recognition of sensor combinations, test gases, and gas detection monitors. The system significantly reduces operational costs through optimized gas flow management, shortened testing times, and reduced maintenance requirements.
Key operational benefits include touchscreen interface control, integrated database recording of all test results and evaluations, and customizable reporting with USB printer compatibility. The patented valve concept minimizes wear and tear on replacement parts, while the automatic leak tests and alarm element testing ensure comprehensive detector validation. Bump tests are completed in just 8 to 15 seconds, eliminating the need for manual data entry as gas cylinders are pre-stored in the system.
This calibration station comes equipped with integrated tubing and electrical connections, IP20 rating, and CE marking approval. The system operates on 24V power supply or car adapter and functions reliably in ambient conditions ranging from 0°C to 40°C. For full operation, the X-Dock Gas Regulator and Viton tubing accessories are required. The compact design features replaceable seal cartridge technology for easy maintenance and extended operational life.
Key Features
- Touchscreen interface for intuitive operation and control
- Automatic recognition of sensor combinations and test gases
- Rapid bump test completion in 8-15 seconds
- Integrated database recording and customizable USB printer reporting
- Patented valve concept reduces maintenance and wear on parts
- Automatic leak tests and alarm element verification
- Pre-stored gas cylinder data eliminates manual entry
- Replaceable seal cartridge for easy maintenance
- Integrated tubing and electrical connections
- IP20 rating with CE marking approval
Technical Specifications
| Specification |
Value |
| Product Type | Bump Test and Calibration Station |
| Compatible Detectors | Pac 3500, Pac 5500, Pac 7000 |
| Gas Connections | 3 test gas inlets, 1 fresh air inlet, 1 waste gas outlet |
| Master Station Dimensions | 120 x 130 x 250 mm |
| Module Dimensions | 90 x 145 x 250 mm |
| Master Station Weight | 1500g |
| Module Weight | 900g |
| Power Supply | 24V power supply or car adapter |
| Operating Temperature Range | 0°C to 40°C |
| IP Rating | IP20 |
| Approvals | CE marking |
| Connectivity | 3 USB 2.0 devices/1 USB host, Network connection |
| Bump Test Duration | 8-15 seconds |
| Included Components | X-Dock Master Station, Pac Module, Power Supply, 3 test gas connections |
| Required Accessories | X-Dock Gas Regulator, Viton tubing |
| Maintenance Feature | Replaceable seal cartridge |
| SKU | 8321881 |
| Manufacturer | Drager Safety |
Order Drager X-dock 5300 PAC Series Bump Test Calibration Station at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
