Shop Drager X-am 5100 Hydrogen Chloride HCl/HF Gas Detection Kit In Iraq Best Prices
Professional Drager X-am 5100 single gas detector for hydrogen chloride/fluoride detection with advanced data logging, ATEX certification, and proven sensor technology for safe petrochemical handling.

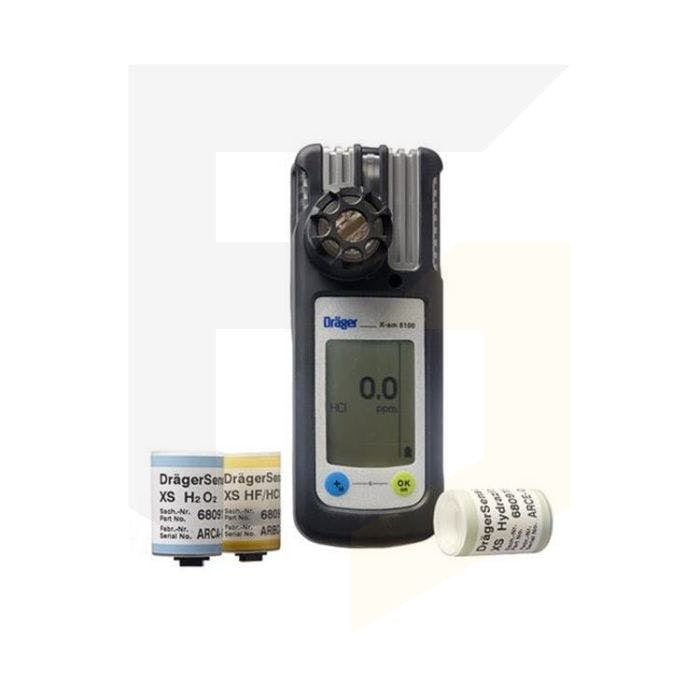

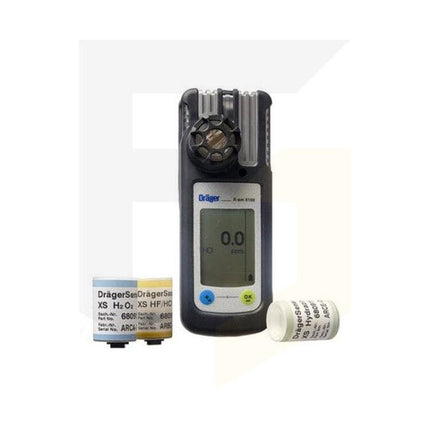

The Drager X-am 5100 is a professional-grade single gas detector specifically designed for safe handling of hydrogen chloride (HCl) or hydrogen fluoride (HF) gases. This lightweight, slip-proof, and robust gas monitor features proven Drager sensor technology with a special direct gas entry function that guarantees fast sensor response and precise measurement data. The device is ideal for use in manufacturing petrochemical products, aseptic packing, and handling of rocket fuel applications where accurate detection of corrosive gases is critical.
With its ergonomic design and user-friendly two-button operation, the X-am 5100 provides reliable performance in demanding industrial environments. The detector features advanced data logging capabilities that can record over 1000 hours of data at one-minute intervals, with information retrievable via infrared interface. It is highly resistant to impacts, vibrations, and electromagnetic radiation, ensuring consistent performance in challenging workplace conditions.
The comprehensive alarm system includes 360-degree visual indication, multi-tone audible alarm exceeding 90 dB at 30cm, and vibration alerts. The device meets stringent ATEX and IECEx certifications for explosive atmospheres and comes complete with manufacturer's certificate, calibration certificate, and power pack including battery and charger for immediate deployment.
Key Features
- Proven Drager sensor technology for accurate HCl/HF gas detection
- Direct gas entry function with fast sensor response and precise measurement
- Advanced data logging capability recording over 1000 hours at 1-minute intervals
- 360-degree visual alarm with multi-tone audible alert exceeding 90 dB and vibration notification
- ATEX and IECEx certified for safe operation in explosive atmospheres
- Two-button user-friendly operation with intuitive menus
- Lightweight, slip-proof, and robust design resistant to impacts and vibrations
- Long operating times up to 180 hours with high-capacity rechargeable battery
- IP54 rating for dust and water resistance
- Infrared interface for data retrieval and device communication
Technical Specifications
| Specification |
Value |
| Measurement Range | 0 to 30 ppm |
| Resolution | 0.1 ppm |
| Response Time | 60 seconds (t50) |
| Dimensions | 48 x 130 x 61 mm (1.89 x 5.12 x 2.4 inches) |
| Weight | 220 - 250 grams (7.8 - 8.8 ounces) |
| Operating Temperature Range | -20 to +50°C (-4 to +122°F) |
| Operating Pressure Range | 700 - 1300 mbar (20.7 to 38.4 inch Hg) |
| Operating Humidity Range | 10 - 95% relative humidity |
| Operating Time Alkaline Battery | Approximately 150 hours |
| Operating Time NiMH Rechargeable | Approximately 150 hours |
| Operating Time High Capacity NiMH | Approximately 180 hours |
| Battery Charging Time | Less than 4 hours |
| IP Rating | IP 54 |
| Visual Alarm | 360-degree indication |
| Audible Alarm | Multi-tone greater than 90 dB at 30cm (1 foot) |
| Vibration Alarm | Yes |
| ATEX Certification | I M1 Ex ia I Ma, II 1G Ex ia IIC T4/T3 Ga, -20°C ≤ Ta ≤ +55/40°C |
| IECEx Certification | Ex ia I Ma, Ex ia IIC T4/T3 Ga, -20°C ≤ Ta ≤ +55/40°C |
| CE Mark Compliance | Electromagnetic compatibility (2004/108/EC), Explosion protection (94/9/EC) |
| Data Logging Capacity | Over 1000 hours at 1-minute recording intervals |
| Data Interface | Infrared interface |
| Sensor Type | Drager XXS Sensor (HCl or HF as specified) |
| Product Code | 3361008 |
| Included Components | X-am 5100 detector, Drager XXS Sensor, manufacturer's certificate, calibration certificate, power pack with battery and charger |
Order Drager X-am 5100 Hydrogen Chloride HCl/HF Gas Detection Kit at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
