Advanced portable multi-gas detector with 1-5 gas configurations, IP67 water resistance, 360° alarm, and up to 40 hours operating time. Ideal for confined spaces, hazardous areas, and professional gas detection.

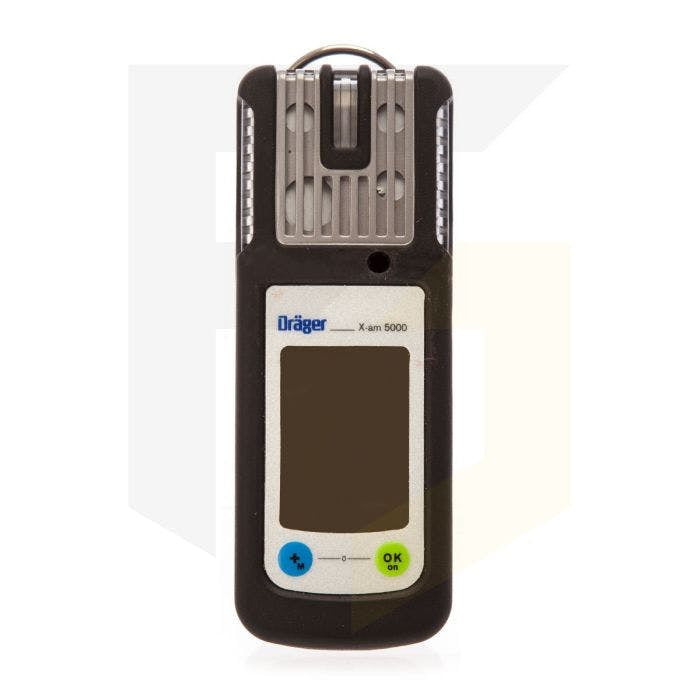

The Drager X-am 5000 is a cutting-edge portable multi-gas detector designed for personal protection in confined spaces and hazardous environments. This innovative 1 to 5 gas detector reliably measures combustible gases and vapours alongside oxygen and harmful concentrations of O3, Cl2, CO, CO2, H2, H2S, HCN, NH3, NO, NO2, PH3, SO2, COCl2, organic vapours, and odorants. The device features an ergonomic mobile phone-like design that is lightweight and comfortable to carry, making it ideal for continuous gas detection applications in industrial, confined space, and emergency response scenarios.
Built with durability and reliability at its core, the X-am 5000 incorporates Drager's innovative XXS sensor technology featuring a highly sensitive catalytic Ex sensor with quick response times to explosive gases and combustible organic vapours. The detector is resistant to water and dust ingress according to IP 67 standards, meaning it remains fully functional even when submerged in water. Dual gas inlets positioned on the top and bottom ensure continuous detection even when the device is covered or placed in a pocket, while the 360° visible alarm with multi-tone audible alert exceeding 90 dB ensures immediate notification of hazardous conditions.
The X-am 5000 offers exceptional flexibility with easily exchangeable and upgradeable sensors, long sensor lifetime exceeding 4 years, and compatible accessories including external pumps for pre-entry measurements into confined spaces such as tanks and shafts. The device supports both standard alkaline and rechargeable NiMH batteries, with an optional Save Energy Mode extending operating time to over 40 hours. Advanced data logging capabilities allow recording of over 1,000 hours of data with 5 gases at 1-minute intervals, readable via infrared connectivity. With comprehensive certifications including ATEX, UL, CSA, IECEx, and MED Marine Equipment Directive compliance, the Drager X-am 5000 is the ultimate choice for professional gas detection.
Key Features
- Configurable 1-5 gas detection with multiple gas options including O2, CO, H2S, Cl2, O3, NH3, and SO2
- Dual gas inlets for continuous detection even when covered or in pockets
- IP67 water and dust resistance with full functionality when submerged
- 360° visible alarm with multi-tone audible alert exceeding 90 dB and vibrating notification
- Advanced XXS sensor technology with quick response time of 10 seconds
- Integrated data logger recording over 1,000 hours with infrared readout capability

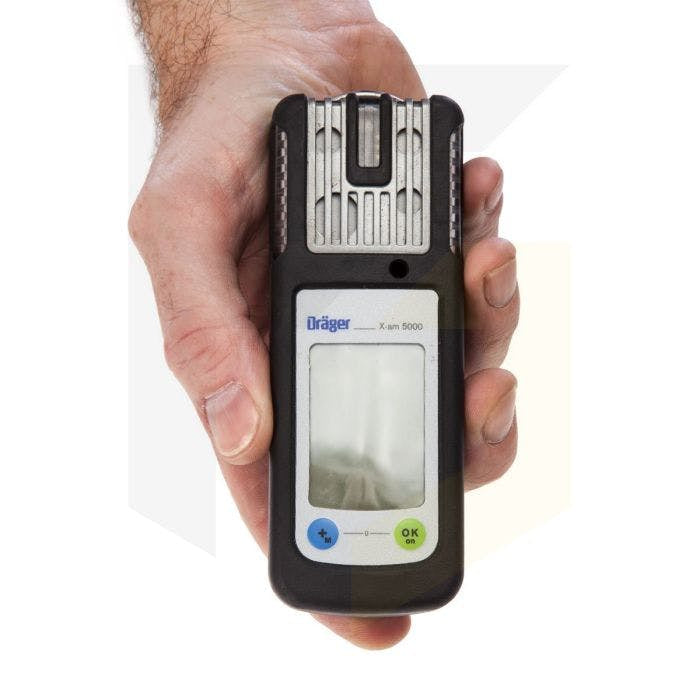

- Ergonomic mobile phone-like design with large display and two-button control panel
- Long sensor lifetime exceeding 4 years with easy sensor exchange and upgrade capability
- Flexible power supply with alkaline or rechargeable NiMH batteries plus optional Save Energy Mode
- Compatible with external pump for confined space pre-entry measurements up to 98 feet
- Wireless fence line capability with up to 25 X-zone 5000 units for area monitoring
- Comprehensive ATEX, UL, CSA, IECEx, and MED certifications for global deployment
Technical Specifications
| Specification |
Value |
| Product Code | 703970-01 |
| Gas Detection Range | 1-5 configurable gases including LEL, CH4, O2, CO, H2S, Cl2, O3, NH3, SO2 and others |
| LEL Range | 0 to 100% LEL with 1% LEL resolution |
| Oxygen Range | 0 to 25% Vol. with 0.1% Vol. resolution |
| Response Time | 10 seconds (T90) |
| Dimensions | 48 x 130 x 44 mm (1.89 x 5.12 x 1.73 inches) |
| Weight | 220-250 grams (7.8-8.8 ounces) |
| Sensor Types | Cat Ex 125 PR and DrägerSensor XXS O2 Sensor |
| Operating Time | Greater than 12 hours standard; Greater than 40 hours with Save Energy Mode |
| Battery Charging Time | Less than 4 hours |
| Battery Type | Standard alkaline, rechargeable NiMH, or T4 in-device rechargeable |
| Alarm Types | Visual 360°, Audible multi-tone greater than 90 dB at 30 cm, Vibrating |
| Data Logging | Greater than 1,000 hours with 5 gases at 1 minute recording interval, readable via infrared |
| Pump Operation | Maximum hose length 30 meters (98 feet) |
| IP Rating | IP-67: Dust protection and immersion protection between 15cm and 1m depth |
| Operating Temperature | -20 to +50°C (-4 to 122°F) |
| Operating Pressure | 700-1300 hPa |
| Operating Humidity | 10-95% relative humidity |
| Certifications | ATEX I M1 Ex ia I; II 1G Ex ia IIC T3 (Zone 0); I M2 Ex d ia I; II 2G Ex d ia IIC T4/T3; EN 50104, EN 60079-29-1:2007, EN 50271:2001, UL Class I & II Div. 1, CSA Class I Div. 1, IECEx, CE-mark, MED Marine Equipment Directive, MSHA |
| Included Accessories | Monitor, Cat Ex 125 PR and DrägerSensor XXS O2 Sensors, Crocodile clip, NiMH rechargeable power pack and charger, Operation and Maintenance manual |
| Price Range | From £1,490.47 to £3,002.53 GBP (depending on configuration) |
Order Drager X-am 5000 Multi-Gas Detector Portable Monitor at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
