Shop Drager X-am 2500 Gas Detection Kit Combustible Oxygen Carbon Monoxide In Iraq Best Prices
Professional multi-gas detector for combustible gases, oxygen, and CO monitoring with datalogging, ATEX certification, and complete charging kit included

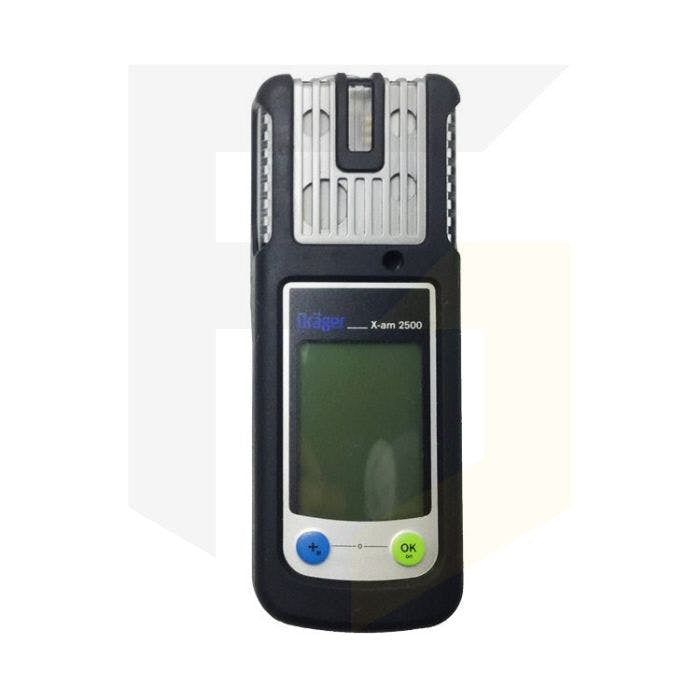

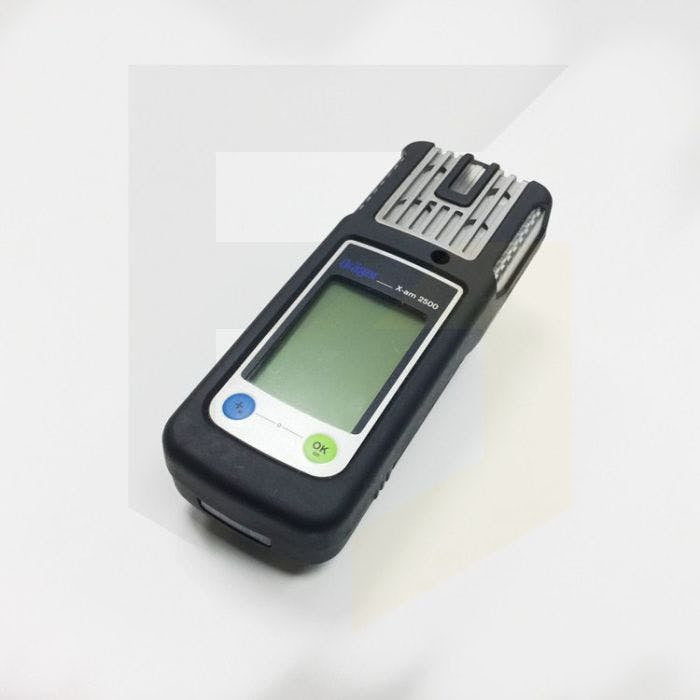

The Drager X-am 2500 is a robust multi-gas detector specifically designed for detecting combustible gases, oxygen depletion, and carbon monoxide in hazardous environments. This portable gas detection kit comes complete with a power pack and charger, making it ideal for industrial work, mining operations, and refineries where explosive hazards are a possibility. The detector has been specially developed to detect up to four gases using durable electrochemical sensors, with the Ex sensor offering high resistance to silicone and hydrogen sulphide.
This advanced gas detection system features exceptional datalogging capability of over 1000 hours of data recorded with 4 gases at a recording interval of 1 value per minute. The integrated crocodile clip ensures the multi-gas detector attaches securely to your clothing for convenient hands-free monitoring. The X-am 2500 offers switching from diffusion mode to pumped mode quickly and easily without tools, providing flexibility for various detection scenarios. With simple menu navigation and two-button control panel, operators can quickly access all necessary functions.
The detector is certified for use in explosive atmospheres (ATEX I M1 Ex ia I Ma, II 1G Ex ia IIC T3 Ga, I M2 Ex d ia I Mb, II 2G Ex d ia IIC T4/T3 Gb) and meets international standards including EN 60079-29-1:2007, EN 50104, EN 45544, and CSA Class I Division 1 certifications. With a 3-year warranty on both instrument and sensors, long service life, and comprehensive accessories available through Frontline Safety, this is a complete solution for professional gas detection needs.
Key Features
- Detects four gases: Combustible gases (Ex), Oxygen (O2), Carbon Monoxide (CO), and Methane (CH4)
- Datalogging capability of over 1000 hours with 4 gases at 1 value per minute recording interval
- No sensitivity to electromagnetic radiation or wireless devices for reliable operation
- ATEX certified for use in explosive atmospheres with multiple international certifications
- Quick mode switching from diffusion to pumped mode without tools
- Integrated crocodile clip for secure attachment to clothing
- Visual 360° alarm with audible multi-tone (>90 dB at 30cm) and vibrating alerts
- IP 67 water and dust resistant rating for harsh environments
- External pump available for leak detection in tank and shaft clearance measurements
- Simple two-button control panel with intuitive menu navigation
- Long sensor service life: CatEx >4 years, O2 & CO >5 years
- Infrared interface for datalogging results retrieval
- 3-year warranty on instrument and sensors
Technical Specifications
| Specification |
Value |
| Gas Detection Range | Combustible: 0-100% LEL; Methane: 0-5 Vol.-%; Oxygen: 0-25 Vol.-%; Carbon Monoxide: 0-2000 ppm |
| Resolution | Combustible: 1% LEL; Oxygen: 0.1 Vol.-%; Carbon Monoxide: 2 ppm |
| Response Time (T90) | Combustible and Oxygen: 10 seconds; Carbon Monoxide: 15 seconds |
| Dimensions | 48 x 130 x 44 mm (1.89 x 5.12 x 1.73 inches) |
| Weight | 220-250 grams (7.8-8.8 ounces) |
| Operating Temperature | -20 to +50°C (-4 to +122°F) |
| Operating Pressure | 700-1300 mbar |
| Humidity Range | 10-95% relative humidity |
| Battery Life | >12 hours (alkaline and NiMH); >13 hours (NiMH HC); >250 hours without Ex sensor (alkaline batteries at 25°C) |
| Charging Time | Less than 4 hours |
| IP Rating | IP 67 - fully water and dust resistant |
| Alarm Types | Visual 360°; Audible multi-tone >90 dB at 30cm; Vibrating |
| Sensor Service Life | CatEx: >4 years; Oxygen and Carbon Monoxide: >5 years |
| Warranty | 3 years for instrument and sensors |
| Certifications | ATEX I M1 Ex ia I Ma, II 1G Ex ia IIC T3 Ga, I M2 Ex d ia I Mb, II 2G Ex d ia IIC T4/T3 Gb; CSA Class I Div. 1; EN 60079-29-1:2007; EN 50104; EN 45544; IECEx; MED Marine Equipment Directive |
| Datalogging Capacity | Over 1000 hours of data with 4 gases at 1 value per minute recording interval |
| Data Retrieval | Infrared interface |

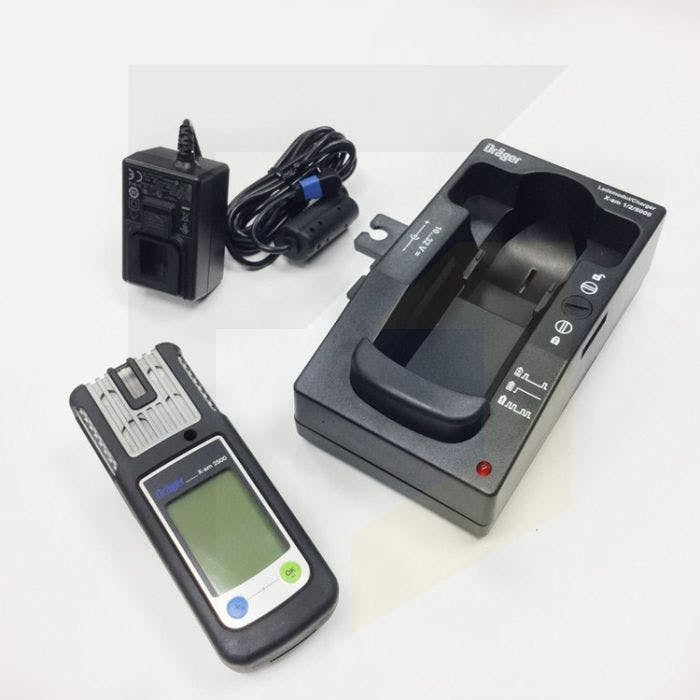

| Package Contents | Drager X-am 2500 Monitor with specified sensors, crocodile clip, NiMH rechargeable power pack, charger, operation and maintenance manual |
| Sensor Type | Durable electrochemical sensors with high resistance to silicone and hydrogen sulphide |
| Attachment Method | Integrated crocodile clip for secure clothing attachment |
Order Drager X-am 2500 Gas Detection Kit Combustible Oxygen Carbon Monoxide at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
