Shop Drager X-act 5000 Basic Automatic Tube Pump Gas Detection In Iraq Best Prices
Professional automatic tube pump for gas detection with Drager short-term tubes and sampling systems. Features adjustable flow rates, backlit display, ATEX certification, and rechargeable battery for over 1,000 strokes per charge.

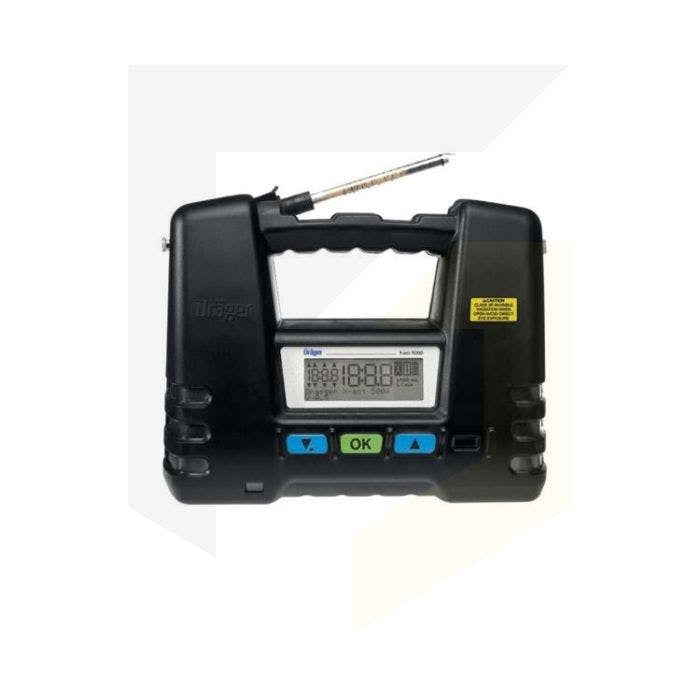

The Drager X-act 5000 Basic is a professional-grade automatic tube pump designed as an all-in-one solution for precise measurements with Drager short-term tubes and sampling systems. This robust device combines high reliability with ease of operation, making it ideal for measuring gases, vapours, and aerosols in various industrial and confined space applications. The pump features a completely new pump concept that provides the required flow characteristics for Drager short-term tubes while also supporting sampling tubes and systems requiring constant flow rates from 0.1 to 2.0 L/min.
The instrument is equipped with a backlit two-part display (segment and matrix) for clear visibility even in poor lighting conditions, and supports 11 different menu languages including English, German, French, Spanish, Italian, Dutch, Danish, Finnish, Norwegian, Polish, and Swedish. The Ex-approved Drager X-act 5000 Basic is certified for use in confined spaces and explosive gas atmospheres, meeting ATEX, IECEx, cUL, and MED standards. Its ergonomic design allows comfortable one-handed operation or shoulder strap use, even when wearing protective gloves.
This automatic pump can perform over 1,000 strokes per charge using the rechargeable NiMH battery (7.2V, 1500mAh), with sampling capabilities of up to 12 hours depending on the adjusted flow rate. The device features adjustable number of strokes (1-199), a 100ml stroke volume, and support for extension hoses up to 30 meters in length. The pump automatically adjusts flow rates for technical gases and provides direct measurement readings without requiring external flow meters, making it an essential tool for industrial hygiene professionals and gas detection specialists.
Key Features
- Automatic pump concept with adjustable 1-199 strokes and 100ml stroke volume
- Flow rate range of 0.1 to 2.0 L/min with automatic adjustment for technical gases
- Backlit two-part display (segment and matrix) with 11 menu languages
- ATEX Ex-approved for confined spaces and explosive gas atmospheres
- Rechargeable NiMH battery (7.2V, 1500mAh) providing over 1,000 strokes per charge
- Support for extension hoses up to 30 meters in length
- Ergonomic design with shoulder strap for one-handed operation
- Automatic flow rate adjustment without external flow meters required
- Adjustable sampling time up to 12 hours with automatic pump shutdown
- Compliance with ATEX, IECEx, cUL, and MED safety standards
Technical Specifications
| Specification |
Value |
| Product Code | 3707674 |
| Pump Type | Automatic tube pump with new pump concept |
| Short-term Measurements | Using Drager short-term tubes with adjustable 1-199 strokes |
| Stroke Volume | 100ml |
| Flow Rate Range | 0.1 to 2.0 L/min with resolution 0.1 L/min (±10%) for 0.1-1.0 L/min and 0.2 L/min (±10%) for 1.0-2.0 L/min |
| Sampling Time | Adjustable up to 12 hours depending on flow rate with resolution in steps of 15 minutes (default) or 1 minute |
| Display | Two-part backlit display with segment and matrix |
| Menu Languages | Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Spanish, Swedish |
| Extension Hose Support | Up to 30 meters (98 feet) |
| Dimensions | 175 x 230 x 108 mm (7 x 9 x 4.25 inches) |
| Weight | Approximately 1.6 kg (3.5 lbs) without battery pack |
| Storage Temperature | -20 to 55°C (-4 to 131°F) |
| Operating Temperature | 5 to 40°C (41 to 104°F) |
| Humidity | 0 to 95% relative humidity, non-condensing |
| Atmospheric Pressure | 700 to 1300 hPa (10.2 to 18.9 psi) |
| Battery Type | Rechargeable NiMH (T4) 7.2V, 1500 mAh |
| Battery Charging Time | Less than 4 hours |
| Battery Capacity at 25°C | Over 1,000 strokes for short-term tubes or up to 12 hours for sample taking |
| ATEX Approval | Ex ia IIC T4 Ga, Ex ia I Ma, I M1 / II 1G |
| MED Certification | Steering Wheel approval 96/98 EC |
| cUL Certification | Class I, Div. 1, Group A, B, C, D, Class II, Div. 1, Group F, G, 5°C ≤ Ta ≤ +40°C Temp. Code T4 Ex ia |
| IECEx Approval | Ex ia I Ma, Ex ia IIC T4 Ga |
| CE Mark | According to 2014/30/EU, 2014/34/EU and 2011/65/EU |
| Price | £1,670.70 (inc VAT) / £1,392.25 (exc VAT) |
| Status | Currently discontinued - Drager X-act 7000 recommended as replacement |
| Additional Notes | Power supply (4523520) and mains charger (4523545) must be purchased separately |
Order Drager X-act 5000 Basic Automatic Tube Pump Gas Detection at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
