Shop Drager Sensor H2O2 HC Electrochemical Hydrogen Peroxide Detector In Iraq Best Prices
Advanced electrochemical sensor for detecting high concentrations of hydrogen peroxide in fixed gas detection systems. Features rapid response, high accuracy, and compatibility with Drager PointGard 2100 controller.

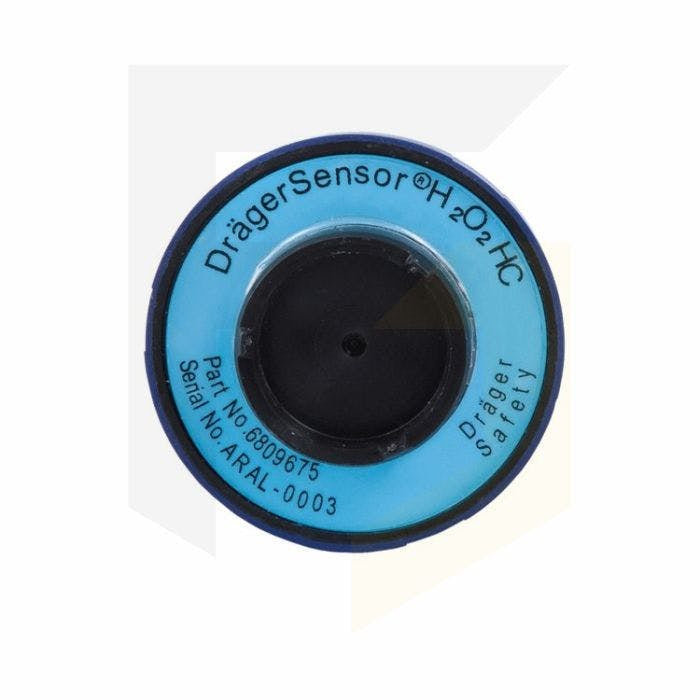

The Drager Sensor H2O2 HC is a precision electrochemical sensor specifically engineered for detecting high concentrations of hydrogen peroxide (H2O2) in industrial environments. This advanced sensor is fully compatible with Drager's Fixed Gas Detection Systems, including the PointGard 2100 controller, providing reliable and accurate gas detection for safety-critical applications. The sensor delivers rapid response times and maintains consistent measurement accuracy across its operational range, making it an essential component for facilities requiring continuous hydrogen peroxide monitoring.
This electrochemical sensor features a default measuring range of 4000 ppm with an adjustable range from 1000 to 7000 ppm, allowing customization for various industrial applications. The sensor provides detection limits as low as 100 ppm and maintains measurement accuracy within ±5% or ±10 ppm, whichever is greater. With a warm-up time of maximum 30 minutes for operation and 720 minutes for calibration, the sensor is ready for deployment in fixed gas detection systems. The device includes SensorReady technology that reduces warm-up time to less than 5 minutes, significantly improving operational efficiency.
Designed for long-term reliability, the Drager H2O2 HC sensor offers an expected service life exceeding 24 months in ambient air conditions. The sensor maintains loss of sensitivity of no more than -3% per year, ensuring consistent performance throughout its operational lifespan. With a standard calibration interval of 6 months (adjustable from 1 day to 12 months), this sensor provides flexibility for different operational requirements. The sensor operates reliably across environmental temperatures ranging from -0°C to 55°C and relative humidity levels from 10% to 95%, making it suitable for diverse industrial environments.
Key Features
- Electrochemical sensor technology for precise hydrogen peroxide detection
- Compatible with Drager Fixed Gas Detection Systems including PointGard 2100
- Adjustable measuring range from 1000 to 7000 ppm with default 4000 ppm
- SensorReady technology reduces warm-up time to less than 5 minutes
- Expected service life exceeding 24 months with minimal sensitivity loss
- Measurement accuracy within ±5% or ±10 ppm for reliable readings
- Detection limit as low as 100 ppm for early warning capability
- Flexible calibration interval adjustable from 1 day to 12 months
- Operates reliably in temperatures from -0°C to 55°C
- Alarm response time of 10 seconds at 5x alarm threshold
Technical Specifications
| Specification |
Value |
| Product Type | Electrochemical Sensor |
| Measured Gas | Hydrogen Peroxide (H2O2) |
| Chemical Symbol | H2O2 |
| CAS Number | 7722-84-1 |
| Default Measuring Range | 4000 ppm |
| Adjustable Range | 1000 to 7000 ppm |
| Detection Limit | 100 ppm |
| Measurement Accuracy | ≤ ±5% or ≤ ±10 ppm (whichever is greater) |
| Warm-up Time for Operation | Maximum 30 minutes |
| Warm-up Time for Calibration | Maximum 720 minutes |
| SensorReady Warm-up Time | Less than 5 minutes |
| Alarm Response Time (5x threshold) | ≤ 10 seconds |
| Alarm Response Time (1.6x threshold) | ≤ 20 seconds |
| Loss of Sensitivity per Year | ≤ -3% |
| Expected Service Life | Greater than 24 months in ambient air |
| Default Calibration Interval | 6 months |
| Calibration Interval Range | 1 day to 12 months |
| Operating Temperature Range | -0°C to 55°C (-32°F to 149°F) |
| Operating Relative Humidity | 10% to 95% |
| Ambient Pressure Tolerance | ±3% |
| Storage Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Compatibility | Drager Fixed Gas Detection Systems including PointGard 2100 |
| Product Code | 6809675 |
| Sensor Technology | Electrochemical |
| Display Format | H2O2 |
