Description

Shop Drager PointGard 3100 Gas Detection System AC Power In Iraq Best Prices

Self-contained gas detection system with integrated transmitter, controller, and alarm in one compact IP66-rated unit. Features continuous monitoring, adjustable audible/visual alarms, 4-20mA output, and supports multiple Dräger electrochemical sensors for toxic gas and oxygen detection.

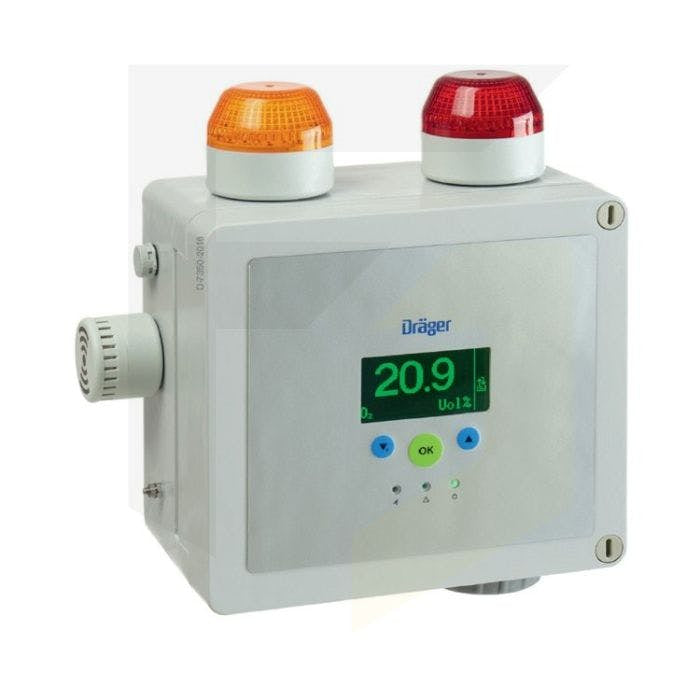

The Dräger PointGard 3100 is a self-contained gas detection system designed for continuous monitoring of toxic gases and oxygen in ambient air. This innovative system combines a transmitter, controller, and alarm system in one compact unit, providing a complete, easy-to-install solution for local gas detection applications. The PointGard 3100 is ideal for general-purpose applications requiring reliable gas and vapor detection across various industrial environments. Choose from two versions: the Dräger PointGard 3100 AC Power (3728176) or the Dräger PointGard 3100 AC Power with green steady light (3728175). The green steady light version features an indicator that turns off during fault or alarm conditions to clearly signal unsafe status. The IP66-rated GFRP housing is suitable for both indoor and outdoor use and includes a built-in AC power supply, a backlit graphical LCD display, and clear status LEDs. The system supports a wide range of pre-calibrated electrochemical Dräger sensors, including oxygen (O2), carbon monoxide (CO), hydrogen sulphide (H2S), ammonia (NH3), nitrogen dioxide (NO2), and sulphur dioxide (SO2). Integrated visual and audible alarms (85–105 dB adjustable) provide clear warning of gas hazards. Advanced diagnostics log events and gas readings with graphical trend views directly on the 75mm backlit LCD display. The system features 4–20 mA analog output for integration into larger detection systems, relay outputs for external alarm devices, and password-protected maintenance menus for enhanced security. Ready to use out of the box once paired with a compatible sensor, the PointGard 3100 delivers reliable, continuous gas detection with minimal installation complexity.

Key Features

Easy to install and commission with a ready-to-use, all-in-one design requiring minimal setup
Integrated strobe lights and audible alarm (horn) with 85-105 dB adjustable output eliminate need for external alarm devices
DrägerSensors offer reliable operation across wide temperature range (-20 to +50°C) and support predictive maintenance capabilities
Can be integrated into larger gas detection systems via 4–20 mA output and supports additional external alarm devices through built-in relays
Robust NEMA 4X / IP66-rated housing made from glass fibre reinforced polyester (GFRP), providing excellent resistance to water and dust for indoor and outdoor use

Technical Specifications

Specification	Value
Product Code	DRAGER-POINTGARD-3100
Available Versions	Dräger PointGard 3100 EC AC (3728176) and Dräger PointGard 3100 EC AC with green steady light (3728175)
Housing Dimensions	255 x 280 x 120 mm (10 x 11 x 4.7 inches)
Weight	3.9 kg (8.6 lb)
Housing Material	Glass fibre reinforced polyester (GFRP)
Protection Rating	IP66 (suitable for indoor and outdoor use)
Certification	UL 508A/50/50E; CSA C22.2 94.1/94.2/14–13; CE rating, IEC/EN 61010-1; UL 61010-1 compliant
Operating Temperature	-20 to +50°C (-4 to +122°F)
Storage Temperature	-20 to +65°C (-4 to +149°F)
Operating Humidity	0 to 95% relative humidity, non-condensing
Operating Pressure	700 to 1,300 hPa (20.7 to 38.4 inches Hg)
Power Supply	100–240 VAC, 50–60 Hz
Nominal Power Consumption	6 W
Maximum Operating Current	0.5 A
Maximum Inrush Current	40 A @ 230 VAC, 50 Hz
Analog Signal Output	4–20 mA (normal operation), 3.4 mA or 4 mA ±1 mA (maintenance mode), <1.2 mA (fault condition)
Relay Specification	2 alarm relays and 1 fault relay; SPDT contact 5 A @ 230 VAC, 5 A @ 30 VDC
Display Type	75 mm (3 inch) backlit graphic LCD display with selectable red or green illumination
Status Indicators	3 status LEDs (green/yellow/red) with amber and red LED strobes for A1 and A2 alarms
Alarm Output	85–105 dB adjustable buzzer with continuous and pulsating tone options
Sensor Type	Electrochemical DrägerSensor (gas dependent); compatible with O2, CO, H2S, NH3, NO2, SO2 and other gases
Cable Entry	3 cable glands, 1/2 inch NPT
Mounting	Wall mount with internal screws or optional brackets
Data Logger	Event and data logger with capacity for up to 35,000 records
Security Features	Password-protected maintenance and configuration menus; passwordless bump-test mode with alarm inhibition
Calibration	Automatic zero and span calibration capabilities
Price Range	£1,768.55 to £1,809.75 (VAT included)

Order Drager PointGard 3100 Gas Detection System AC Power at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
