Description

Shop Drager PIR 7000 Explosion Proof Infrared Fixed Gas Detector In Iraq Best Prices

Explosion-proof infrared fixed gas detector with SIL 2 certification, drift-free optics, HART communication, and stainless steel SS 316L housing for harsh industrial environments.

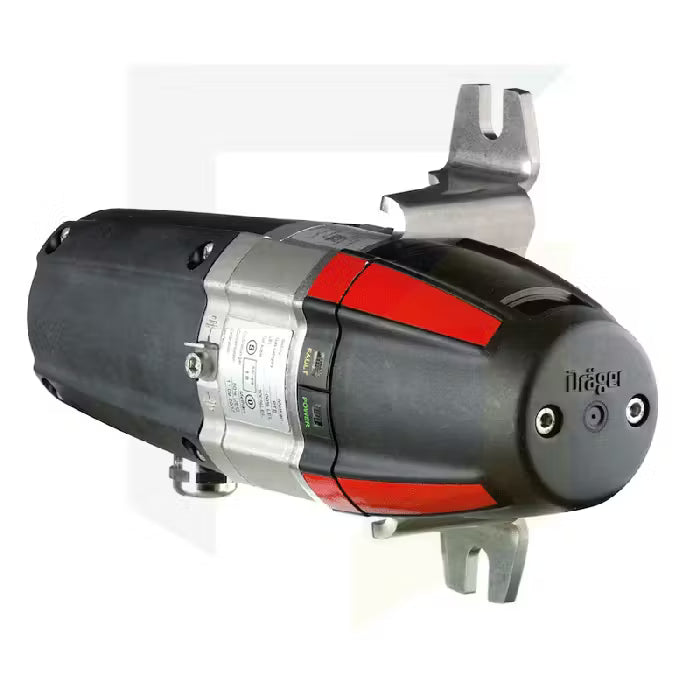

The Dräger PIR 7000 is an explosion-proof point infrared gas detector engineered for continuously monitoring combustible gases and vapours in the most demanding industrial environments. Featuring advanced infrared gas detector technology with 4-beam double-compensating optics, this detector delivers drift-free performance and exceptional reliability. The robust stainless steel SS 316L housing ensures durability in harsh conditions such as offshore installations, chemical plants, and refineries. This sophisticated detector offers adjustable response modes, allowing operators to select between 'normal' and 'high speed' response times based on specific application requirements. With continuous self-testing capabilities compliant with IEC/EN 61508 standards and SIL 2 certification from TÜV, the PIR 7000 provides comprehensive safety assurance. The hermetically sealed enclosure provides IP 66 and IP 67 protection ratings, ensuring reliable operation in dust and moisture-prone environments. The Dräger PIR 7000 supports single cable multidrop capability using HART® communication protocol, enabling seamless integration into existing control systems. Its configurable gas library includes methane, propane, and ethylene as fixed options, with the capability to upload up to 10 additional substances. Operating across an extended temperature range from -40 to +77°C, this detector maintains consistent performance across diverse climatic conditions and industrial applications.

Key Features

Explosion-proof design certified to ATEX II 2G Ex d IIC T6/T4 and IECEx standards
Advanced 4-beam double-compensating infrared technology with drift-free optics
SIL 2 certified by TÜV in compliance with EN 61508 and EN 50402 standards
Adjustable response modes: normal response ≤4 seconds or fast response <1 second
Hermetically sealed stainless steel SS 316L enclosure with IP 66/IP 67 protection
Extended operating temperature range from -40 to +77°C (-40 to +170°F)
HART® communication protocol with single cable multidrop capability
Configurable gas library: methane, propane, ethylene plus up to 10 additional substances
Continuous self-testing and diagnostics in accordance with IEC/EN 61508
Dust approval for zone 21 and 22 ATEX/IECEx classifications

Technical Specifications

Specification	Value
Product Type	Explosion-proof point infrared gas detector transmitter
Detection Principle	Temperature-compensated infrared absorption with 4-beam technology
Measurable Gases	Methane, propane, ethylene (0-20 to 100% LEL); methane (0-100% vol); additional substances on request
Digital Resolution	0.5% LEL
Repeatability	±1% LEL
Response Time	Normal mode: ≤4 seconds; Fast mode: <1 second
Long-term Drift	±1% LEL after 12 months
Output Signals	4-20 mA with HART® communication protocol
Power Supply	13 to 30 V DC, 3-wire connection
Power Consumption	5.6 W (typical)
Operating Temperature Range	-40 to +77°C (-40 to +170°F)
Storage Temperature Range	-40 to +85°C (-40 to +180°F)
Humidity Range	0 to 100% RH
Pressure Range	700 to 1300 hPa (23.6 to 32.5 inch Hg)
Enclosure Material	Stainless steel SS 316L
Connection Thread	M25 or ¾'' NPT
Weight	2.2 kg (without accessories)
Dimensions	160 mm x Ø 89 mm (6.3'' x Ø 3.5'')
Ingress Protection Rating	IP 66 and IP 67, NEMA 4X
ATEX Certification	II 2G Ex d IIC T6/T4 Gb; II 2D Ex tb IIIC T80°C/T130°C Db IP65
IECEx Certification	Ex d IIC T6/T4 Gb; Ex tb IIIC T80°C/T130°C Db IP65
UL Classification	Class I Div. 1 Groups A, B, C, D; Class II Div. 1 Groups E, F, G
CSA Classification	Class I Div. 1 Groups B, C, D; Class II Div. 1 Groups E, F, G
Safety Integrity Level	SIL 2 certified by TÜV per EN 61508 and EN 50402
Product Code	DRA-PIR7000-FGD

Order Drager PIR 7000 Explosion Proof Infrared Fixed Gas Detector at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
