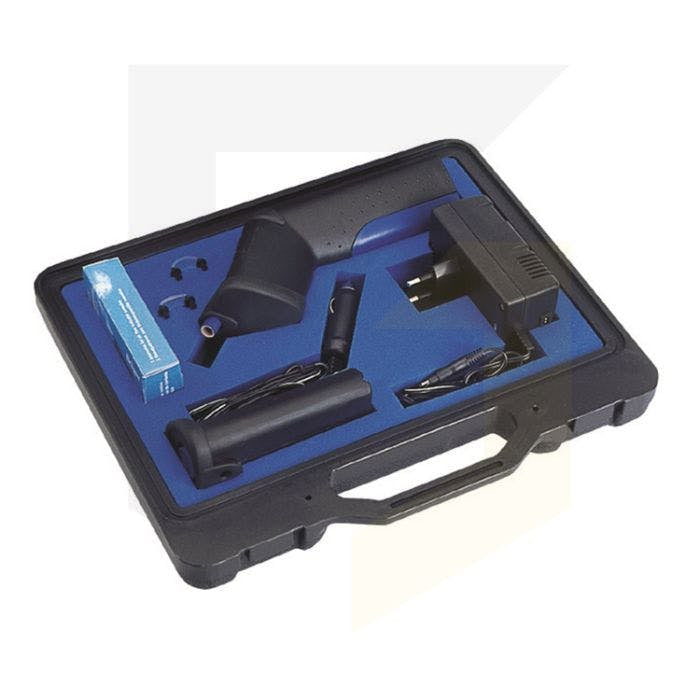

Professional air flow testing kit with smoke generator for detecting leaks in air-tight systems. Includes flow check system, rechargeable battery, 3 ampoules, charger, and carrying case.
The Drager Air Flow Testing Check Kit is a professional-grade air current indicator designed for checking the integrity of air-tight systems and identifying visible leaks in respiratory protection equipment and ventilation systems. This comprehensive kit includes the flow check system with integrated compact power supply, a rechargeable Ni-Cd battery pack (7.2V, 1.4Ah), a pack of 3 smoke-generating ampoules, a dedicated charger, and a protective carrying case for portability and safe storage.
The flow check system operates by producing a visible smoke cloud that can be controlled precisely through a button press, allowing operators to observe air flow patterns in any orientation. The smoke generated is non-harmful and can be produced in controlled puffs or as a continuous cloud, making it ideal for both detailed leak detection and comprehensive system testing. When coupled with the included ampoules, the device creates heat to activate the fluid enclosed within each ampoule, generating smoke for approximately 3 minutes per ampoule, providing sufficient testing duration for thorough inspections.
Features include a lightweight and ergonomic design for extended use, the ability to generate clouds in any orientation for flexible testing, and a compact power supply integrated within the handle for improved portability. The device offers flexible charging options with both internal charging capability and optional in-car charging accessories available separately. With an operating temperature range of 5°C to 40°C, approximately 20 minutes of operating time per battery charge, and dimensions of approximately 300mm x 200mm x 70mm with a weight of around 500g, this kit is ideal for maintenance teams, safety professionals, and equipment inspectors.
Key Features
- Lightweight and ergonomic design for comfortable extended use
- Generates smoke clouds in any orientation for flexible testing
- Compact integrated power supply within the handle
- Dual charging options - internal and external with in-car charging available
- Non-harmful smoke production in controlled puffs or continuous clouds
- Approximately 3 minutes smoke duration per ampoule
- 20 minutes operating time per battery charge
- Operating temperature range 5°C to 40°C
- Complete kit with charger, battery pack, 3 ampoules and carrying case
- Ideal for checking air-tight system integrity and leak detection
Technical Specifications
| Specification |
Value |
| Product Type | Air Flow Testing Check Kit / Smoke Generator |
| Operating Temperature Range | 5°C to 40°C |
| Smoke Duration per Ampoule | Approximately 3 minutes |
| Operating Time per Battery Charge | Approximately 20 minutes |
| Battery Type | Ni-Cd rechargeable battery |
| Battery Voltage | 7.2 Volts |
| Battery Capacity | 1.4 Ampere-hours (Ah) |
| Charging Current | 700 mA |
| Dimensions | Approximately 300mm x 200mm x 70mm |
| Weight | Approximately 500 grams |
| Included Components | Flow check system, battery pack, 3 ampoules, charger, carrying case |
| Charging Options | Internal charging and external charging with optional in-car charging |
| Power Supply Location | Compact integrated power supply within handle |
| Smoke Type | Non-harmful, controllable puffs or continuous cloud |
| Manufacturer | Drager |
Order Drager Air Flow Testing Check Kit Smoke Generator at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
