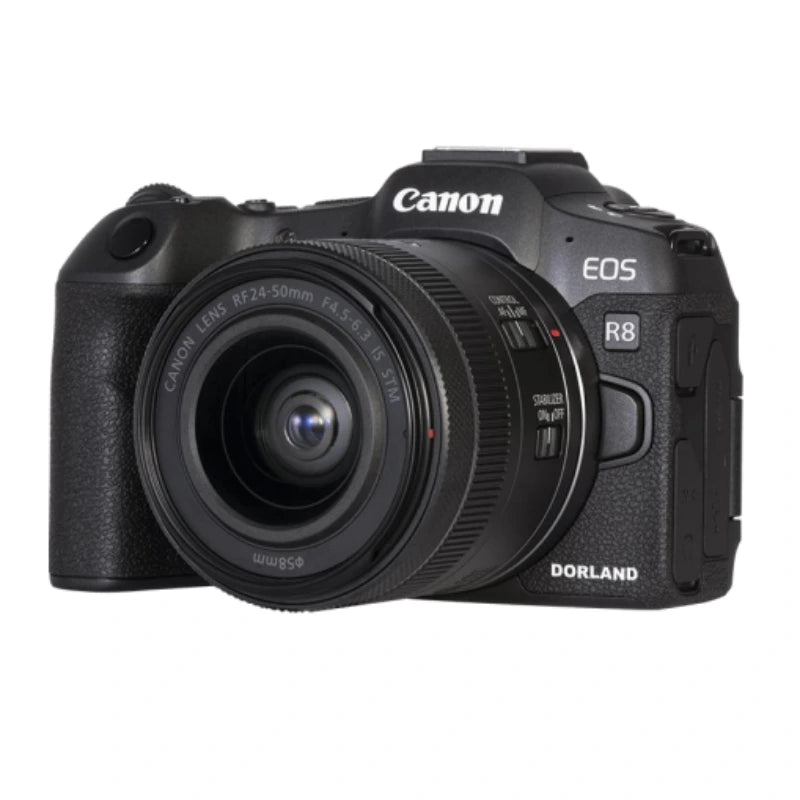

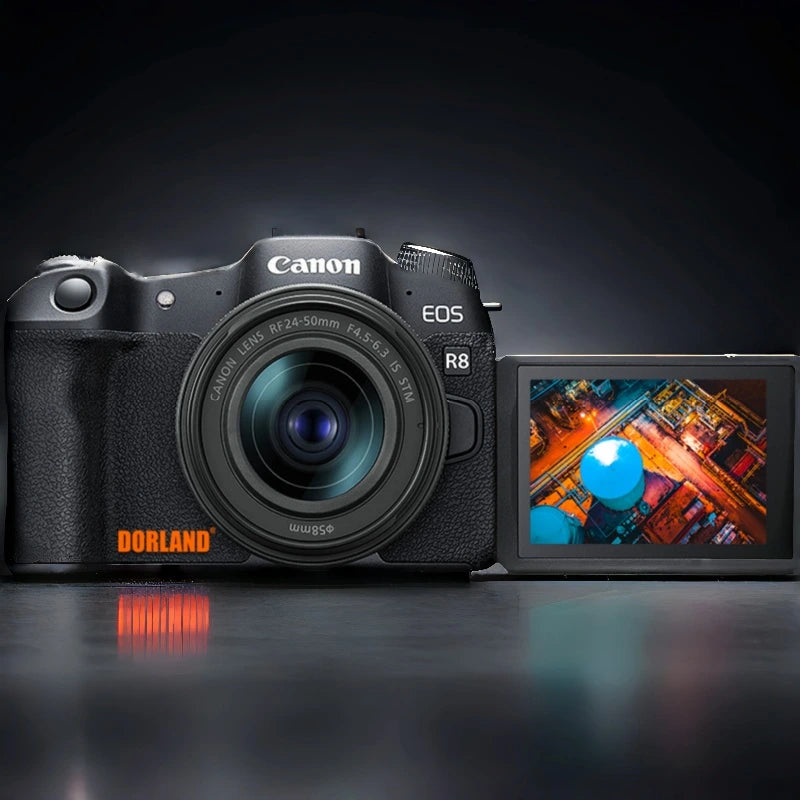

The Dorland Ex Camera R8 is an intrinsically safe digital smart camera designed for use in hazardous environments where explosive gases or combustible materials may be present. Certified with ATEX explosion protection, the device provides safe operation in industries such as oil and gas, petrochemical plants, chemical factories, mining operations, and industrial inspection sites.
Built on a professional mirrorless camera platform, the Ex Camera R8 features a high-performance 24.2MP CMOS image sensor capable of delivering detailed images and high-quality video recordings. The camera uses a versatile 24–105mm RF lens with approximately 4.4x optical zoom, allowing users to capture wide-angle scenes and close-up shots with excellent clarity.
Advanced image stabilization technology provides up to 5 levels of stabilization, ensuring sharp images even when shooting in challenging environments. The camera also supports advanced autofocus technologies with thousands of focus points and intelligent subject detection for humans, animals, and vehicles.
The Dorland Ex Camera R8 supports WiFi and Bluetooth connectivity for seamless file transfer and remote control. With high-resolution video recording, professional photography features, and rugged industrial safety design, this camera is an ideal solution for inspection documentation, safety monitoring, and industrial operations in hazardous locations.
Key Features
-
ATEX intrinsically safe explosion proof camera
-
High resolution 24.2MP CMOS image sensor
-
24–105mm lens with approximately 4.4x optical zoom
-
Advanced autofocus with intelligent subject detection
-
Up to 5 levels of image stabilization
-
High resolution OLED electronic viewfinder
-
3.0 inch LCD touchscreen display
-
WiFi and Bluetooth connectivity for wireless transfer
-
4K video recording support
-
Designed for hazardous industrial environments
Specifications
| Specification |
Details |
| Brand |
Dorland |
| Model |
Ex Camera R8 |
| Device Type |
Intrinsically Safe Explosion Proof Digital Camera |
| Explosion Protection |
Ex ib IIC T4 Gb |
| Certificate Number |
SYEx25.1159 |
| Image Sensor |
CMOS |
| Effective Pixels |
24.2 MP |
| Lens |
RF 24–105 mm |
| Zoom |
Approx. 4.4x optical |
| Image Format |
JPEG / RAW / HEIF |
| Video Recording |
4K |
| Display |
LCD Touchscreen |
| Screen Size |
approx. 3 inch |
| Viewfinder |
OLED Electronic Viewfinder |
| Connectivity |
WiFi / Bluetooth |
| Storage |
SD / SDHC / SDXC memory cards |
| USB |
USB Type-C |
| HDMI |
Mini HDMI |
| Battery |
LP-E17 Li-ion |
| Dimensions |
approx. 132.5 × 86.1 × 70 mm |
| Weight |
approx. 461 g (with battery) |
| Operating Temperature |
0°C – 40°C |
