Description

Reliable 2-pole circuit breaker for residential use, 40A, C curve, 3000A capacity.

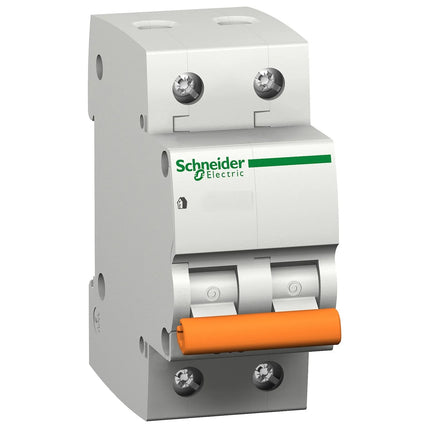

The Domae MCB Miniature Circuit Breaker is designed for residential and small business environments. This 2-pole breaker offers reliable protection with a 40A current rating and a C curve tripping characteristic, ensuring safety against short circuits and overloads. With a breaking capacity of up to 3000A at 230VAC, it complies with IEC 60898-1 standards. The unit is compact, fitting into standard DIN rails, and is easy to install with its clip-on design. The Domae MCB is characterized by its robust mechanical durability of up to 20,000 cycles and an electrical endurance of 10,000 cycles, making it a reliable choice for protecting electrical circuits.

Key Features

  • 40A rated current for optimal protection
  • C curve tripping for balanced response
  • 3000A breaking capacity
  • Easy DIN rail mounting
  • High mechanical durability

Technical Specifications

Specification Value
MaterialPlastic and metal components
Dimensions81 mm x 36 mm x 78.5 mm
Weight0.19 kg
Power230 V AC, 50/60 Hz
Warranty1 year

Read more

Product form

Domae MCB 2P 40A C Curve 3000A

Schneider Electric

SKU: 12989

18,000 IQD

        Description

        Reliable 2-pole circuit breaker for residential use, 40A, C curve, 3000A capacity.
        The Domae MCB Miniature Circuit Breaker is designed for residential and small business environments. This 2-pole breaker offers reliable protection with a 40A current rating and a C curve tripping characteristic, ensuring safety against short circuits and overloads. With a breaking capacity of up to 3000A at 230VAC, it complies with IEC 60898-1 standards. The unit is compact, fitting into standard DIN rails, and is easy to install with its clip-on design. The Domae MCB is characterized by its robust mechanical durability of up to 20,000 cycles and an electrical endurance of 10,000 cycles, making it a reliable choice for protecting electrical circuits.

        Key Features

        • 40A rated current for optimal protection
        • C curve tripping for balanced response
        • 3000A breaking capacity
        • Easy DIN rail mounting
        • High mechanical durability

        Technical Specifications

        Specification Value
        MaterialPlastic and metal components
        Dimensions81 mm x 36 mm x 78.5 mm
        Weight0.19 kg
        Power230 V AC, 50/60 Hz
        Warranty1 year

        Read more
